Alarms, Buzzers, and Sirens
Compare the current Alarms, Buzzers, and Sirens Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAS27A29ERB120QBUZZER PIEZO 120V FLANGE RA |
143 | - |
|
Datasheet | MAS | Bulk | Active | Indicator, Internally Driven | AC | 120 V | 60 ~ 130V | Multiple | Piezo | Single Tone | - | 90dB @ 120V, 30cm | 20mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange, Right Angle | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.752" L x 1.220" W (44.50mm x 31.00mm) |
|
MSO206NLRBUZZER PIEZO 23X23MM CUSTOM |
1,512 | - |
|
Datasheet | MSO | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 6V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 2V, 30cm | 30mA | Top | -20°C ~ 65°C | - | - | - | Custom | Wire Leads | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

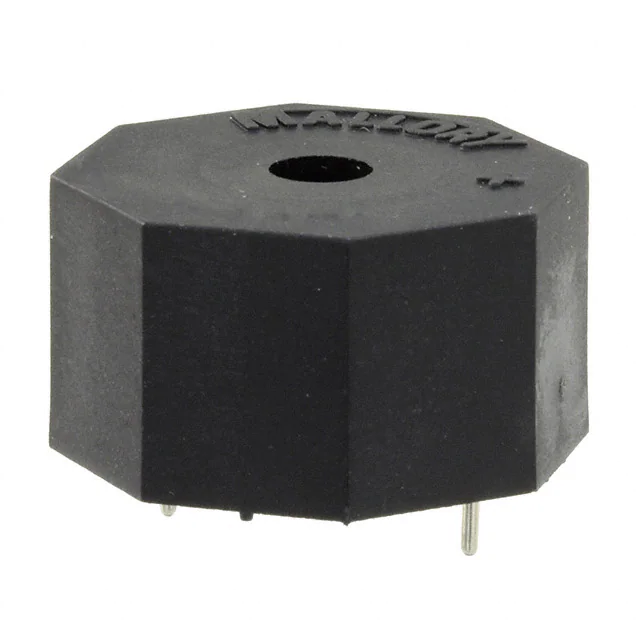

MSE14LCM3BUZZER PIEZO 23X23MM TH |
121 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Chime | Repeating every 1 Sec | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SNP428RBUZZER PIEZO 41.66MM PNL MNT |
237 | - |
|
Datasheet | SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 69dB @ 4V, 61cm | 3 ~ 18mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.125" (3.20mm) | 1.640" Dia (41.66mm) |
|
|
MSS5M1BUZZER PIEZO 5V 23X23MM TH |
102 | - |
|
Datasheet | MSS | Bulk | Not For New Designs | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 2.075kHz | Piezo | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628DBUZZER PIEZO 42.98MM PNL MNT |
172 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 1.9kHz | Piezo | Single Tone | - | 60dB @ 6V, 61cm | 5 ~ 18mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC616NLRBUZZER PIEZO 42.85MM PNL MNT |
207 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Wire Leads | 1.687" Dia (42.85mm) |
|
|
SBS12M0PCBUZZER MAGNETIC 44.45MM TH |
314 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 9 ~ 12V | 2.075kHz | Magnetic | Single Tone | - | 95dB @ 9V, 10cm | 300mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.750" Dia (44.45mm) |
|
|
MSS5GBUZZER MAGN 5V 23X23MM TH |
428 | - |
|
Datasheet | MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 20 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628PRBUZZER PIEZO 42.98MM PNL MNT |
304 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 68dB @ 6V, 61cm | 6 ~ 26mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
Alarms, Buzzers, and Sirens FAQ
How can I narrow the current Alarms, Buzzers, and Sirens selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Alarms, Buzzers, and Sirens parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
