Alarms, Buzzers, and Sirens
Compare the current Alarms, Buzzers, and Sirens Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSE14LCH2BUZZER PIEZO 23X23MM TH |
2,788 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.85kHz | Piezo | Chirp | Repeating every 1.2 Sec | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

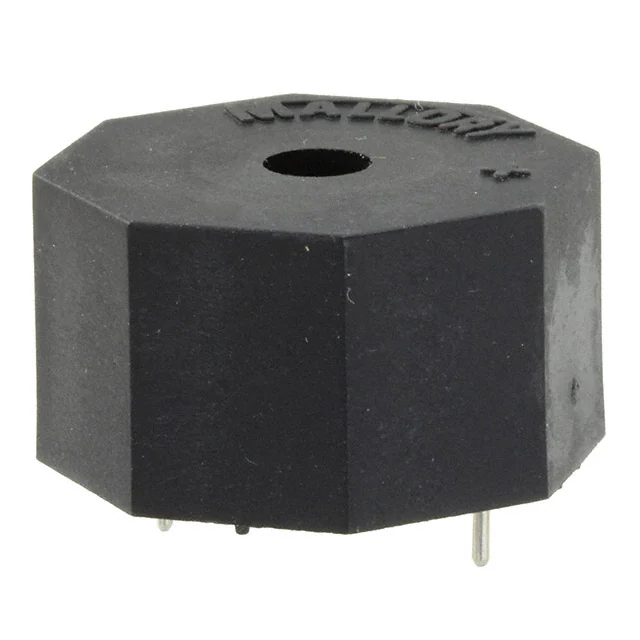

MSE14LDP2BUZZER PIEZO 23X23MM TH |
2,281 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Double Pulse, Fast | 2 PPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

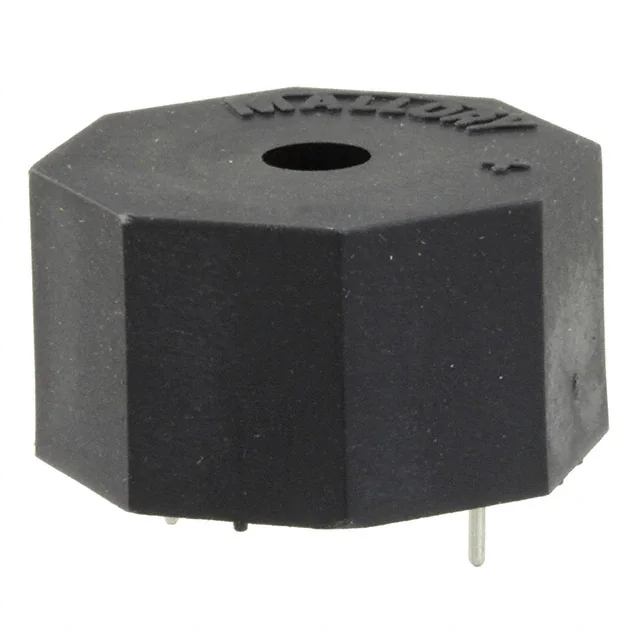

MSE14LSU2BUZZER PIEZO 23X23MM TH |
1,284 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Speed Up, Fast | - | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

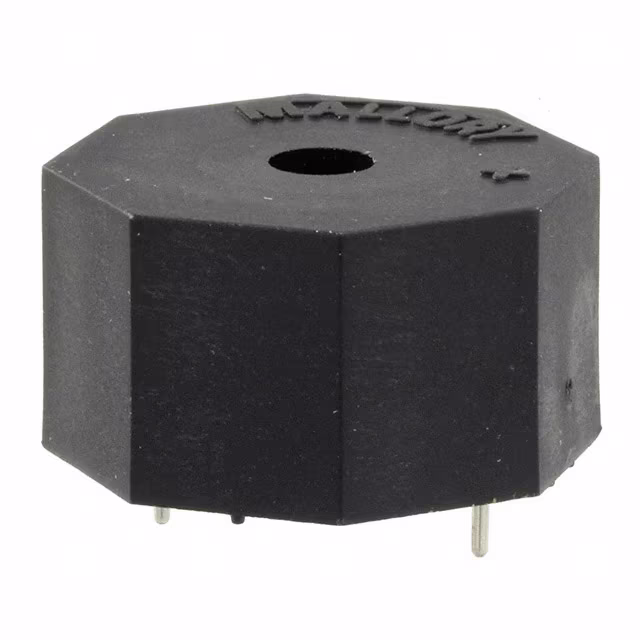

MSE14LDP3BUZZER PIEZO 23X23MM TH |
1,343 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
MSE14LDT7BUZZER PIEZO 23X23MM TH |
1,351 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.85kHz | Piezo | Warble, Fast | 7 WPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
SC616N-BTRBUZZER PIEZO 42.85MM PNL MNT |
2,442 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
SC110QBUZZER PIEZO 42.85MM PNL MNT |
3,213 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Chirp | - | 70dB @ 30V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC616NP-BTRBUZZER PIEZO 42.85MM PNL MNT |
1,727 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 80dB @ 6V, 61cm | 6 ~ 22mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

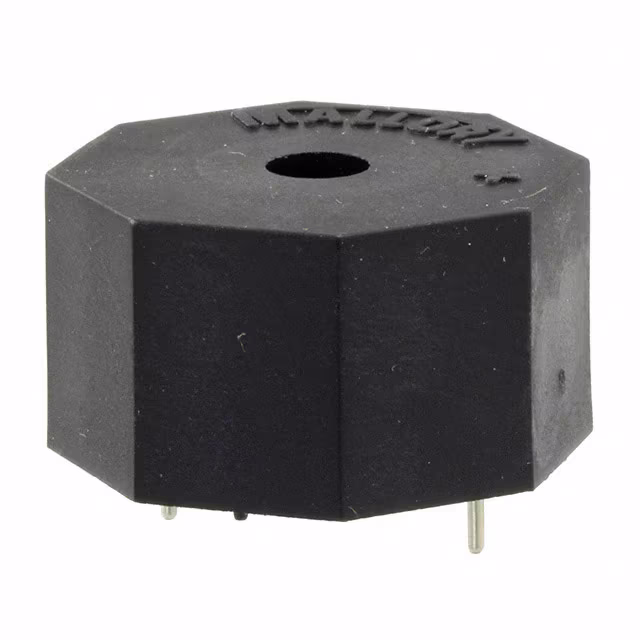

MSE14LDD7BUZZER PIEZO 23X23MM TH |
3,582 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.85kHz | Piezo | Ding Dong | - | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
SCE028XD3DB3SBUZZER PIEZO 42.85MM PNL MNT |
3,739 | - |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Single Tone, Pulse, Slow | 1 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
