Alarms, Buzzers, and Sirens
Browse available Alarms, Buzzers, and Sirens components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSW5VMCFPBUZZER 3-5.5V 23MM TH |
4,702 | - |
|
Datasheet | MSW | Bulk | Active | Indicator, Internally Driven | DC | - | 2.7 ~ 5.5V | 150Hz ~ 4kHz | - | Single Tone, Pulse, Fast | - | 90dB @ 5.5V, 10cm | 400mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
SC648DRBUZZER PIEZO 42.98MM PNL MNT |
1,028 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 1.9kHz | Piezo | Single Tone | - | 60dB @ 10V, 61cm | 4 ~ 20mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SBT5LM0PCBUZZER PIEZO 44.5MM TH |
3,735 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5V | 2.075kHz | Piezo | Single Tone | - | 85dB @ 3.3V, 10cm | 35mA | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
|
SC648HRBUZZER PIEZO 42.98MM PNL MNT |
2,036 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628HRBUZZER PIEZO 42.98MM PNL MNT |
2,097 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 30mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
PS-521QBUZZER PIEZO 12V 57.5X44.5 BRKT |
3,375 | - |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 3kHz | Piezo | Pulse, Slow | - | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.263" L x 1.752" W (57.50mm x 44.50mm) |
|
|
BS 1740BUZZER AUDIO |
1,586 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SC616JRBUZZER PIEZO 42.85MM PNL MNT |
4,804 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 68dB @ 6V, 61cm | 2 ~ 9mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
PS-552QBUZZER PIEZO 12V 54.3MM BRACKET |
2,265 | - |
|
Datasheet | PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.5kHz | Piezo | Warble, Slow | 1.2 PPS | 105dB @ 12V, 100cm | 200mA | User Defined | -20°C ~ 70°C | - | - | - | Bracket Mount | Wire Leads | 2.138" Dia (54.30mm) |
|
|
PLD-35N29EPQBUZZER PIEZO 43MM PNL MNT |
3,912 | - |
|
Datasheet | PLD | Bulk | Active | Indicator, Internally Driven | - | - | - | - | Piezo | Pin Selectable | Variable | - | - | - | - | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|
|
SC105BUZZER PIEZO 42.85MM PNL MNT |
3,766 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 60dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC416BUZZER PIEZO 42.85MM PNL MNT |
2,096 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 4V, 61cm | 4 ~ 14mA | Top | -30°C ~ 65°C | UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SC628FBUZZER PIEZO 42.98MM PNL MNT |
2,181 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 6V, 61cm | 2 ~ 4mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|

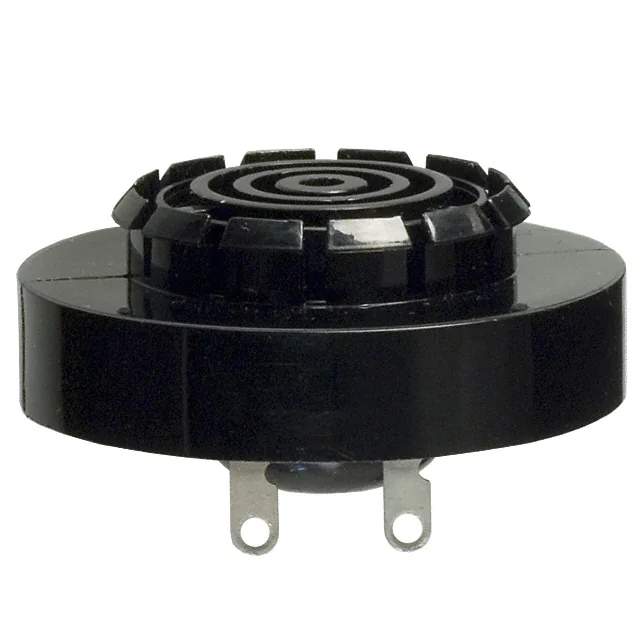

SNP2BUZZER PIEZO 41.66MM PNL MNT |
3,618 | - |
|
Datasheet | SNP | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 1V, 61cm | 3 ~ 12mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.125" (3.20mm) | 1.640" Dia (41.66mm) |
|
|
MSE14LSN2BUZZER PIEZO 23X23MM TH |
2,547 | - |
|
Datasheet | MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 4kHz | Piezo | Siren, Fast | 3.5 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE14LCM1BUZZER PIEZO 23X23MM TH |
4,884 | - |
|
Datasheet | MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

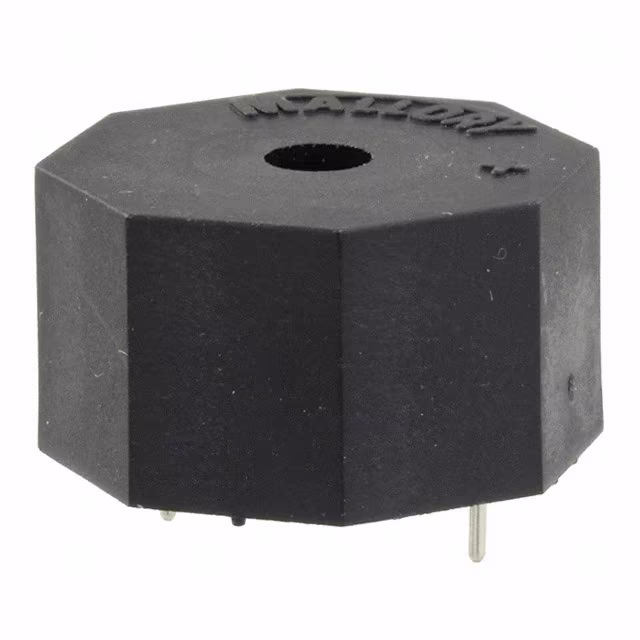

MSE14LDT8BUZZER PIEZO 23X23MM TH |
3,777 | - |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.85kHz | Piezo | Warble, Slow | 1.5 WPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE14LPS1BUZZER PIEZO 23X23MM TH |
3,234 | - |
|
Datasheet | MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.9kHz | Piezo | Pulse, Short | 1 PPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE14LWH1BUZZER PIEZO 23X23MM TH |
3,839 | - |
|
Datasheet | MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.95kHz | Piezo | Whooping | 5 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSE14LWH2BUZZER PIEZO 23X23MM TH |
4,493 | - |
|
Datasheet | MSE | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.95kHz | Piezo | Whooping | 1 SPS | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
Alarms, Buzzers, and Sirens FAQ
What Alarms, Buzzers, and Sirens components can I source from EGOO?
You can browse available Alarms, Buzzers, and Sirens product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Alarms, Buzzers, and Sirens parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
