Angle, Linear Position Measuring
Compare the current Angle, Linear Position Measuring Position Sensors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS5262-HMFPSENSOR ANGLE 360DEG SMD |
4,395 | - |
|
Datasheet | 16-VQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 16-MLF (6x6) |
|
AS5715R-ZTST TSSOP14 LF T&RDPAS5715R-ZTST TSSOP14 LF T&RDP |
2,859 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Inductive | - | - | Analog Voltage | Cosine, Sine | Inductive Target | - | - | - | - | Surface Mount | Gull Wing | -40°C ~ 160°C | Automotive | AEC-Q100 | 14-TSSOP |
|
AS5161-HSOMSENSOR ANGLE 360DEG SMD |
2,943 | - |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 8-SOIC |
|
|
AS5261-HMFMSENSOR ANGLE 360DEG SMD |
2,899 | - |
|
Datasheet | 16-VQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 16-MLF (6x6) |
|
|
AS5262-HMFMSENSOR ANGLE 360DEG SMD |
4,654 | - |
|
Datasheet | 16-VQFN Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 16-MLF (6x6) |
|
|
AS5163-HTSMSENSOR ANGLE 360DEG SMD |
4,684 | - |
|
Datasheet | 14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
|

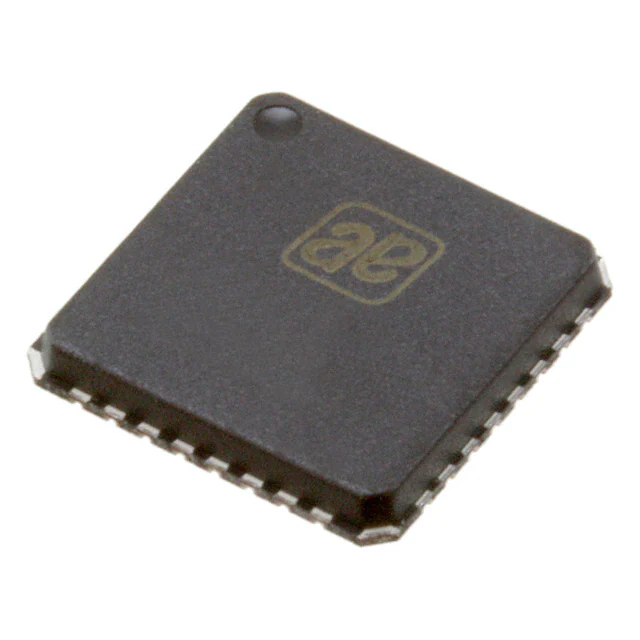

AS5263-HQFMSENSOR ANGLE 360DEG SMD |
1,622 | - |
|
Datasheet | 32-VQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage, PWM | - | External Magnet, Not Included | - | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | - | - | 32-MLF (7x7) |
|
AS5115A-HSSMSENSOR ANGLE 360DEG SMD |
3,899 | - |
|
Datasheet | 16-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | ±1% | - | - | 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C | Automotive | AEC-Q100 | 16-SSOP |
|
|
AS5043-ASSMSENSOR ANGLE 360DEG |
1,748 | - |
|
Datasheet | 16-SSOP (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | - | Angle | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | - | External Magnet, Not Included | ±0.5° | - | - | 4.5V ~ 5.5V | Surface Mount | - | -40°C ~ 125°C | - | - | 16-SSOP |
|
|
AS5263-HQFTIC SENSOR MAGN ANGLE POS 32QFN |
4,337 | - |
|
Datasheet | 32-VQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - | - | 32-MLF (7x7) |
Angle, Linear Position Measuring FAQ
How can I narrow the current Angle, Linear Position Measuring selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Angle, Linear Position Measuring parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
