Automotive Relays
Browse available Automotive Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A11ASP48VDC1.2RELAY AUTOMOTIVE SPST 30A 48V |
484 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

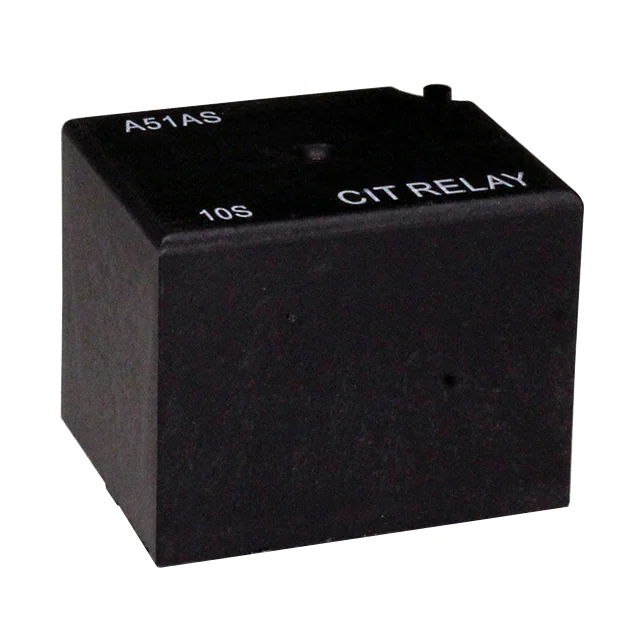

A51AS24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
203 | - |
|
Datasheet | A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A1M1CSQ24VDCDRELAY AUTOMOTIVE SPDT 40A 24V |
1,000 | - |
|
Datasheet | A1M | Tube | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A51AO12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
930 | - |
|
Datasheet | A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|

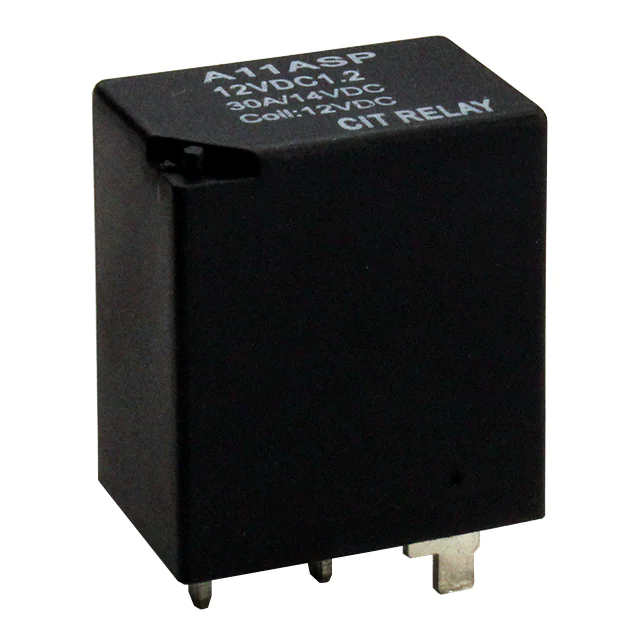

A11ASP12VDC1.2RRELAY AUTOMOTIVE SPST 30A 12V |
1,788 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A11ASP48VDC1.2DRELAY AUTOMOTIVE SPST 30A 48V |
463 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A61AS24VDC1.3DRELAY AUTOMOTIVE SPST 30A 24V |
205 | - |
|
Datasheet | A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

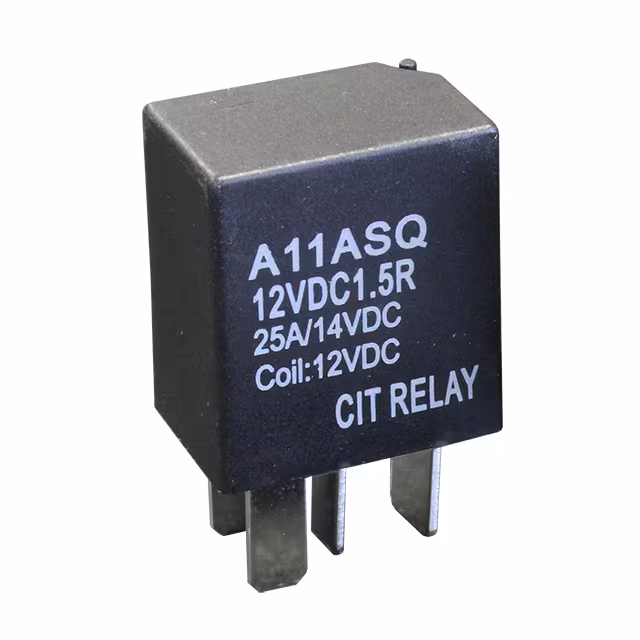

A11ASQ12VDC1.5RRELAY AUTOMOTIVE SPST 30A 12V |
189 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A11CSP24VDC1.2DRELAY AUTOMOTIVE SPDT 30A 24V |
1,002 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

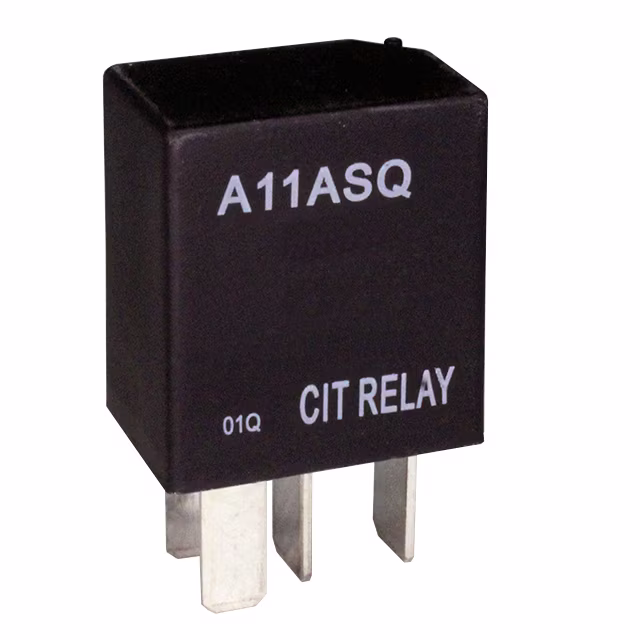

A11ASQ24VDC1.5DRELAY AUTOMOTIVE SPST 30A 24V |
115 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A51AE12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
826 | - |
|
Datasheet | A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A1M1CSQ12VDCRELAY AUTOMOTIVE SPST 40A 12V |
446 | - |
|
Datasheet | A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A11CSQ48VDC1.2RRELAY AUTOMOTIVE SPDT 30A 48V |
460 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A11CSQ6VDC1.2DRELAY AUTOMOTIVE SPDT 30A 6V |
453 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 200 mA | 6VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
A11CSQ48VDC1.2DRELAY AUTOMOTIVE SPDT 30A 48V |
445 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

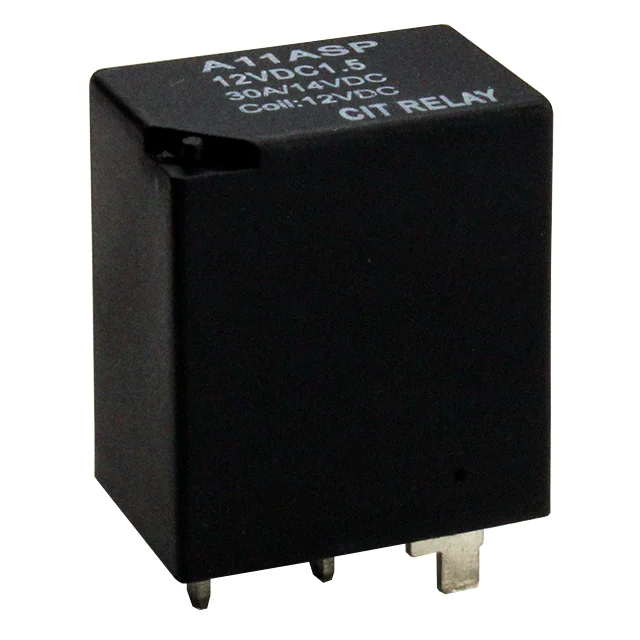

A11ASP12VDC1.5DRELAY AUTOMOTIVE SPST 30A 12V |
500 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

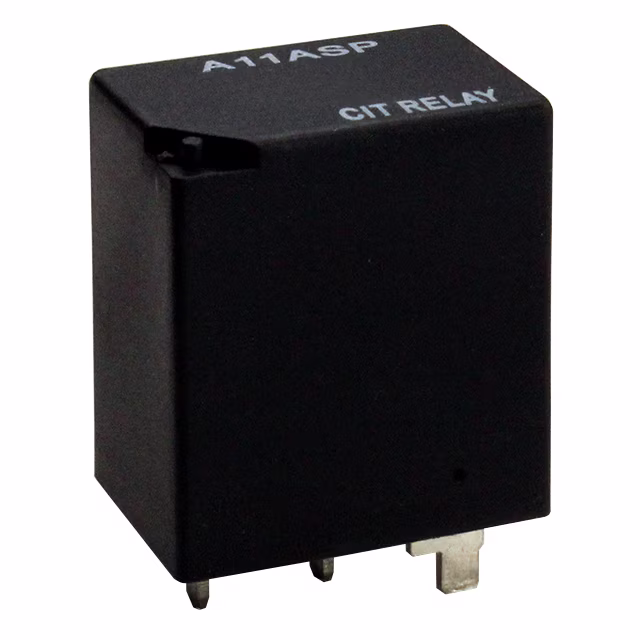

A11ASP24VDC1.5DRELAY AUTOMOTIVE SPST 30A 24V |
500 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A11ASQ48VDC1.2RRELAY AUTOMOTIVE SPST 30A 48V |
498 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 25 mA | 48VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

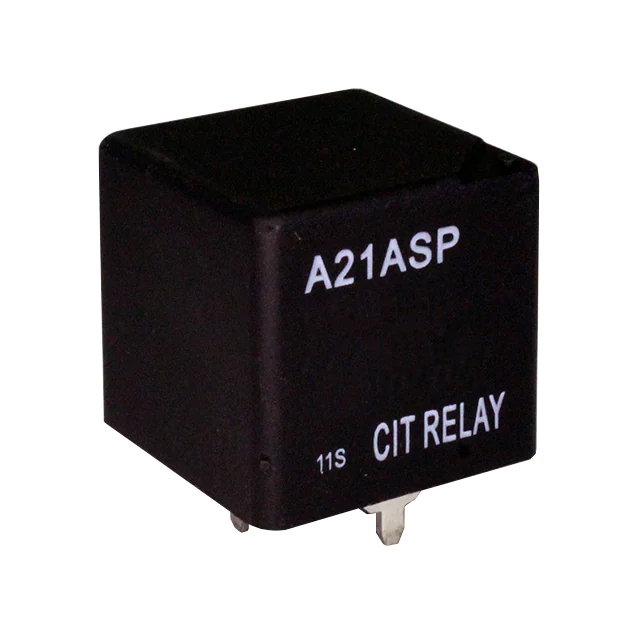

A21ASP24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
450 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A1M1CSQ12VDCRRELAY AUTOMOTIVE SPST 40A 12V |
308 | - |
|
Datasheet | A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
