Automotive Relays
Browse available Automotive Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1AF-P-24VRELAY AUTOMOTIVE SPST 20A 24V |
3,308 | - |
|
Datasheet | CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1F-R-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,078 | - |
|
Datasheet | CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
CM1-R-24VCM RELAY 1 FORM C 24V |
2,634 | - |
|
Datasheet | CM | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 15 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
1-1393277-8RELAY AUTOMOTIVE SPST 45A 24V |
2,495 | - |
|
Datasheet | V23076 | Bulk | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 14.1 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CA1ASR-12V-N-5CA RELAY 1 FORM A 12V |
3,876 | - |
|
Datasheet | CA | Bulk | Active | Non Latching | 120 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In | -30°C ~ 80°C |
|
A2K1CSP12VDC1.6DRELAY AUTOMOTIVE SPDT 120A 12V |
2,036 | - |
|
Datasheet | A2K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Through Hole | PC Pin | -40°C ~ 125°C |
|
CB1AH-T-P-24VCB RELAY HR 1 FORM A 24V |
2,860 | - |
|
Datasheet | CB | Tube | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
RC-700112-NNRELAY GEN PURPOSE SPDT 70A 12V |
3,403 | - |
|
Datasheet | - | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 70 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | - | Chassis Mount | Plug In | -40°C ~ 85°C |
|
05903300RELAY12V.200A |
3,923 | - |
|
Datasheet | - | Box | Active | Non Latching | - | - | - | 100 A | 12VDC | - | - | - | - | IP67 - Dust Tight, Waterproof | Chassis Mount | Stud | -40°C ~ 100°C |
|
AEV18012WRELAY AUTOMOTIVE SPST 80A 12V |
2,272 | - |
|
Datasheet | AEV | Tray | Active | Non Latching | 353 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 450VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
AEV19012RELAY AUTOMOTIVE SPST 300A 12V |
2,113 | - |
|
Datasheet | AEV | Bulk | Last Time Buy | Non Latching | 3.2 A | 12VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 9 VDC | 2 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|
|
AEV19024RELAY AUTOMOTIVE SPST 300A 24V |
1,916 | - |
|
Datasheet | AEV | Bulk | Last Time Buy | Non Latching | 1.9 A | 24VDC | SPST-NO (1 Form A) | 300 A | 450VDC - Nom | 18 VDC | 4 VDC | 30 ms | 10 ms | - | Chassis Mount | Stud | -40°C ~ 85°C |
|

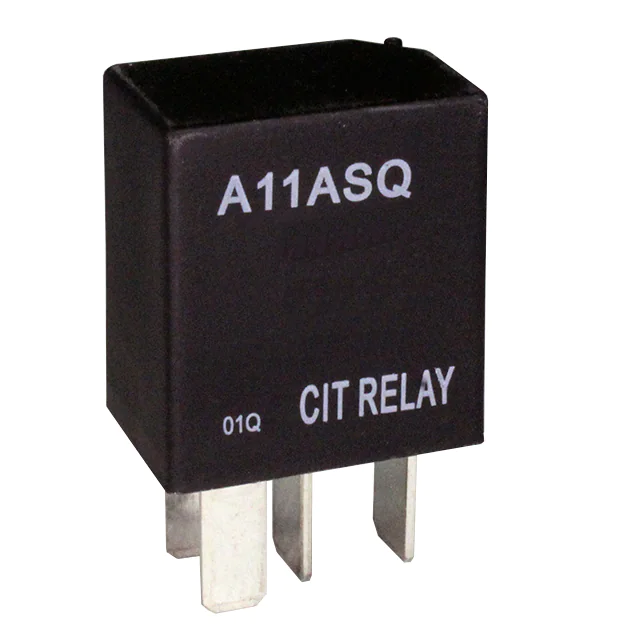

A11ASQ24VDC1.2RRELAY AUTOMOTIVE SPST 30A 24V |
1,774 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|
A51AE24VDC1.6RELAY AUTOMOTIVE SPST 40A 24V |
4,393 | - |
|
Datasheet | A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSP12VDC1.5RELAY AUTOMOTIVE SPDT 30A 12V |
1,755 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSP48VDC1.6RRELAY AUTOMOTIVE SPDT 40A 48V |
100 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

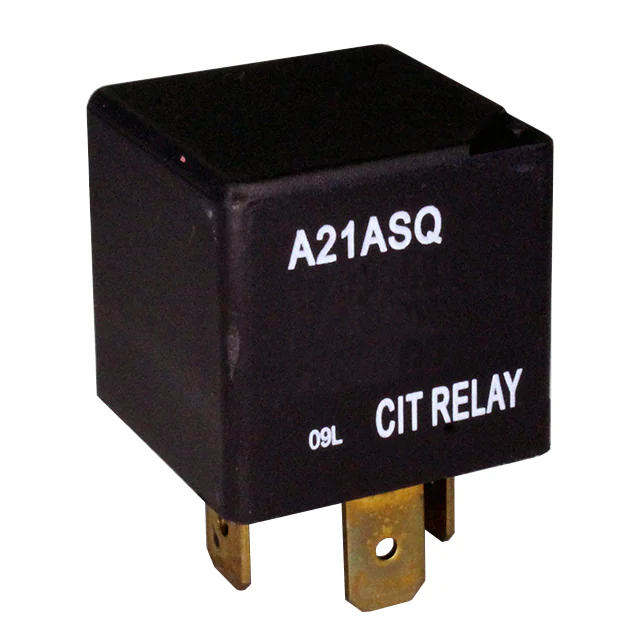

A21ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
1,802 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21CSP48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
100 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

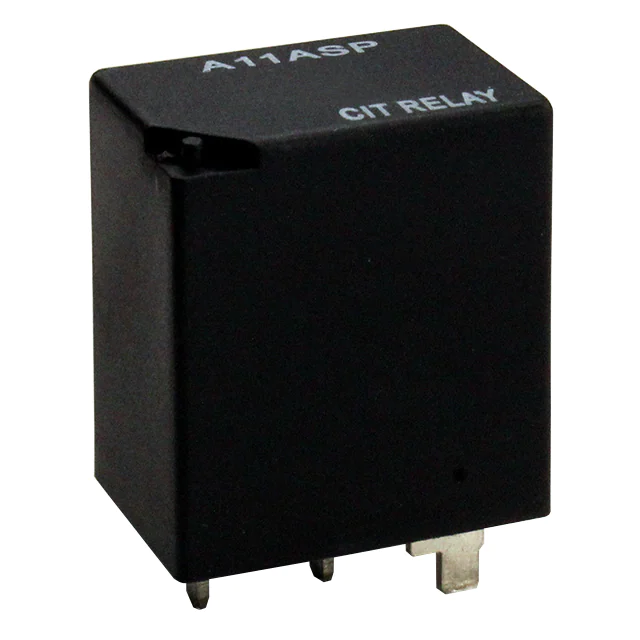

A11ASP24VDC1.5RELAY AUTOMOTIVE SPST 30A 24V |
2,643 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A31CCQ24VDC1RRELAY AUTOMOTIVE SPDT 60A 24V |
4,193 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
Automotive Relays FAQ
What Automotive Relays components can I source from EGOO?
You can browse available Automotive Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Automotive Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
