Automotive Relays
Browse available Automotive Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2H1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
1,235 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HF1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
1,733 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HF1ACQ24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
3,959 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2H1ACQ24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
1,598 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A51CS24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
3,114 | - |
|
Datasheet | A5 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CCQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
1,774 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ASP24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
2,530 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A2M1ASQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
2,327 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
3,049 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1CCQ12VDC1.9RELAY AUTOMOTIVE SPDT 40A 12V |
3,261 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1CCQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
2,158 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
4,008 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

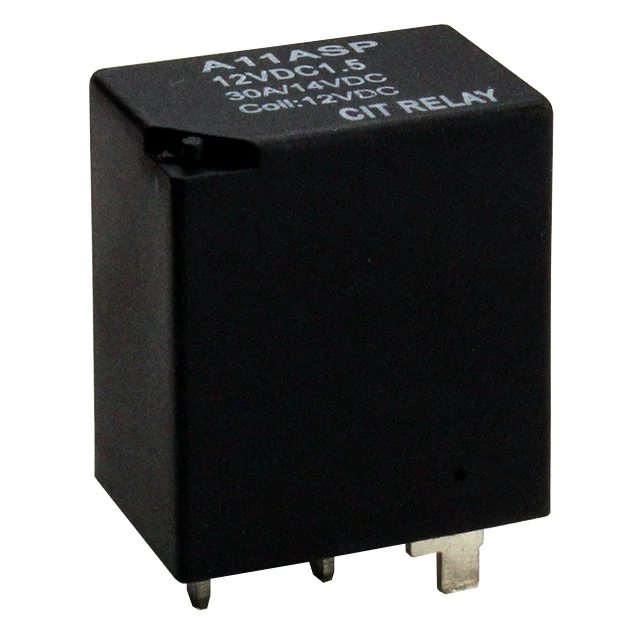

A11ASP12VDC1.5RRELAY AUTOMOTIVE SPST 30A 12V |
4,567 | - |
|
Datasheet | A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ9841-1A-12DRELAY AUTOMOTIVE SPST 40A 12V |
1,812 | - |
|
Datasheet | AZ9841 | Box | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.2 VDC | 1.2 VDC | 5 ms | 2 ms | 280-ISO | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
AZ9741-1C-24DRELAY AUTOMOTIVE SPDT 40A 24V |
2,358 | - |
|
Datasheet | AZ9741 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -55°C ~ 125°C |
|
A61AC12VDC.9RELAY AUTOMOTIVE SPST 30A 12V |
1,356 | - |
|
Datasheet | A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A61AC12VDC1.3RELAY AUTOMOTIVE SPST 30A 12V |
2,708 | - |
|
Datasheet | A6 | Tray | Active | Non Latching | 110.1 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2HM1ACQ24VDC1.6RRELAY AUTOMOTIVE SPST 50A 24V |
4,470 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HM1ACQ24VDC1.6DRELAY AUTOMOTIVE SPST 50A 24V |
1,226 | - |
|
Datasheet | A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2F1ACQ12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V |
3,723 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
Automotive Relays FAQ
What Automotive Relays components can I source from EGOO?
You can browse available Automotive Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Automotive Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
