Automotive Relays
Browse available Automotive Relays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3M1ACQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
1,305 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
2,642 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC2RRELAY AUTOMOTIVE SPST 80A 24V |
4,296 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3M1ACQ24VDC2DRELAY AUTOMOTIVE SPST 80A 24V |
4,552 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
AZ987-2A-12DETRELAY AUTOMOTIVE DPST 30A 12V |
4,874 | - |
|
Datasheet | AZ987 | Box | Active | Non Latching | 47.2 mA | 12VDC | DPST-NO (2 Form A) | 30 A | 16VDC - Max | 6.9 VDC | 1.5 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|

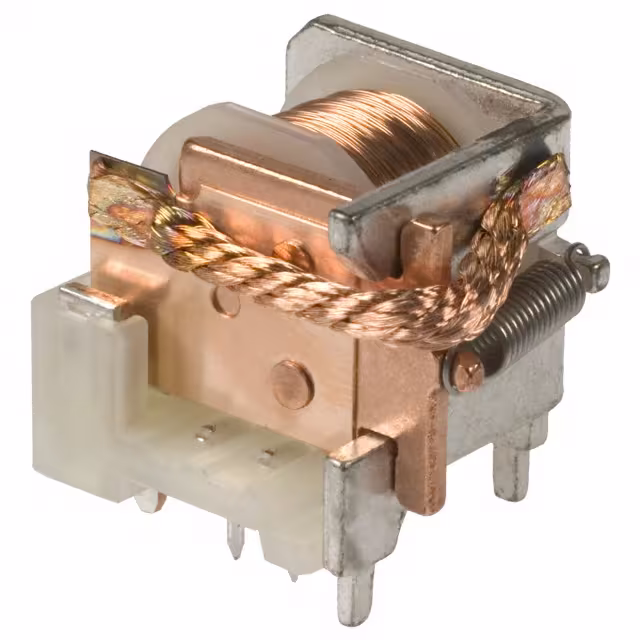

VKP-11F42RELAY AUTOMOTIVE SPST 40A 12V |
1,716 | - |
|
Datasheet | VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ979-1A-24DDERELAY AUTOMOTIVE SPST 80A 24V |
4,957 | - |
|
Datasheet | AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ983-1A-12DERRELAY AUTOMOTIVE SPST 80A 12V |
2,638 | - |
|
Datasheet | AZ983 | Box | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9861-1A-24DC4R1RELAY AUTOMOTIVE SPST 40A 24V |
1,319 | - |
|
Datasheet | AZ9861 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 6 ms | 3 ms | 280-ISO, Resistor, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|
|
AZ979-1A-12DRERELAY AUTOMOTIVE SPST 80A 12V |
1,681 | - |
|
Datasheet | AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ979-1A-12DRC1ERELAY AUTOMOTIVE SPST 80A 12V |
3,447 | - |
|
Datasheet | AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Epoxy, SUPER-ISO w/ Steel Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A2S1CSQ24VDC1.9RELAY AUTOMOTIVE SPDT 40A 24V |
3,194 | - |
|
Datasheet | A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9801-1A-12DRELAY AUTOMOTIVE SPST 70A 12V |
4,631 | - |
|
Datasheet | AZ9801 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 7 ms | SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A3F1CCQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
4,574 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31CCQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
3,975 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | - | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
1,155 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A31CCQ12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
4,851 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
3,789 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3F1CCQ12VDC2RRELAY AUTOMOTIVE SPDT 80A 12V |
3,395 | - |
|
Datasheet | A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9801-1A-12DERELAY AUTOMOTIVE SPST 70A 12V |
4,608 | - |
|
Datasheet | AZ9801 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
Automotive Relays FAQ
What Automotive Relays components can I source from EGOO?
You can browse available Automotive Relays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Automotive Relays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
