Balun
Browse available Balun components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MABA-009852-CF1A40BALUN 5MHZ-120MHZ 75/75 5SMD |
123 | - |
|
Datasheet | - | 5-SMD, No Lead | Tape & Reel (TR) | Active | 5MHz ~ 120MHz | 75 / 75Ohm | - | 0.4dB | 19dB | Surface Mount |
|
CX2049LANLBALUN 250KHZ-500MHZ 5SMD |
1,021 | - |
|
Datasheet | - | 5-SMD | Tray | Active | 250kHz ~ 500MHz | - | - | 3.0dB | 8dB | Surface Mount |
|

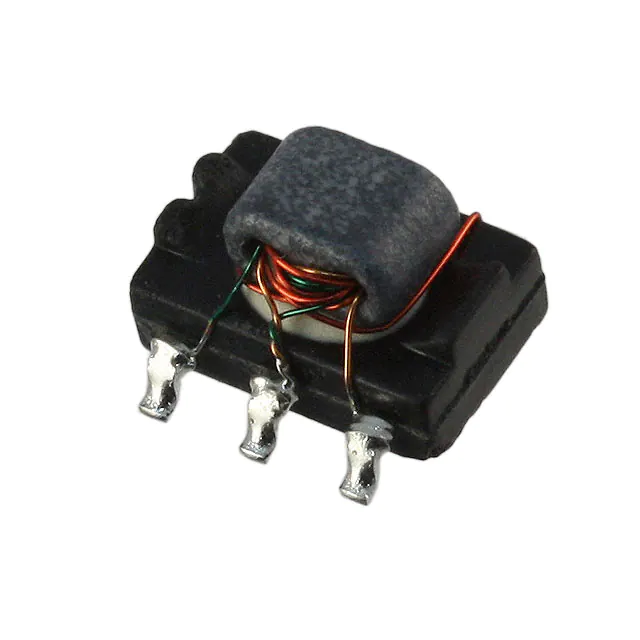

CX2147NLBALUN 5MHZ-200MHZ 1:1 6SMD |
12,114 | - |
|
Datasheet | - | 6-SMD | Tray | Active | 5MHz ~ 200MHz | 1:1 | - | 0.3dB | - | Surface Mount |
|
ETC1-1T-5TRBALUN 1:1 6SMD MODULE 5 LEADS |
1,685 | - |
|
Datasheet | - | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | - | 1:1 | 5° | 2.0dB | - | Surface Mount |
|
TC1-182T-75X+CORE & WIRE XFMR, 5 - 1800 MHZ |
1,980 | - |
|
Datasheet | - | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 1.8GHz | 75 / 75Ohm | 5° | 2.5dB | 20dB | Surface Mount |
|

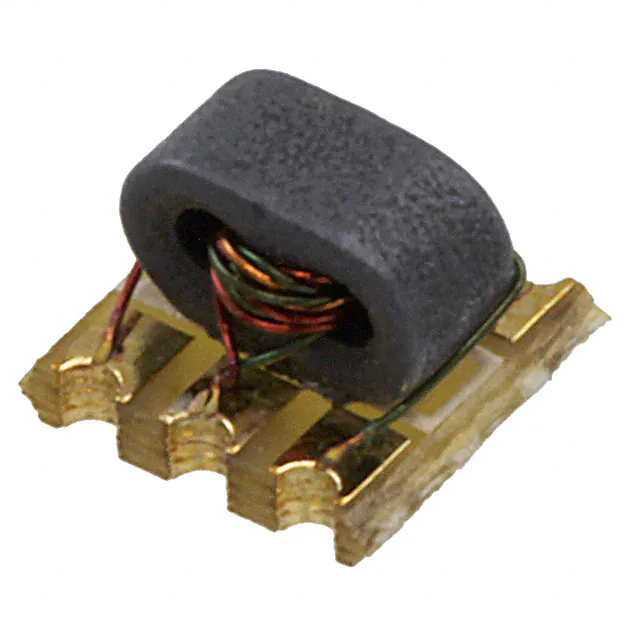

CX2049LNLTBALUN 250KHZ-500MHZ 5SMD MODULE |
2,372 | - |
|
Datasheet | - | 5-SMD Module | Tape & Reel (TR) | Active | 250kHz ~ 500MHz | - | - | 1.2dB | - | Surface Mount |
|
ETC1.5-4TRTRANSFORMER ON TAPE & REEL,5:1,5 |
5,458 | - |
|
Datasheet | - | 6-SMD (5 Leads), Flat Lead | Tape & Reel (TR) | Active | 5MHz ~ 1GHz | 1.5:1 | - | 1.09dB | 20dB | Surface Mount |
|
|
CX2043LNLBALUN 1MHZ-1GHZ 1.5:1 5SMD MODUL |
844 | - |
|
Datasheet | - | 5-SMD Module | Tray | Active | 1MHz ~ 1GHz | 1.5:1 | - | 0.2dB | - | Surface Mount |
|
TCW2-7200+1:2 LTCC XFMR, 5500 - 7200 MHZ |
3,815 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 5.5GHz ~ 7.2GHz | 50 / 100Ohm | 8° | 1.5dB | 9.5dB | Surface Mount |
|
TCW2-282+1:2 LTCC TRANSFORMER, 700 - 2800 |
2,816 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 700MHz ~ 2.8GHz | 1:2 | 13° | 2.0dB | 10.83dB | Surface Mount |
|
TCO2-532+1:2 LTCC TRANSFORMER, 4600 - 590 |
2,678 | - |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | 4.6GHz ~ 5.9GHz | 1:2 | 10° | 1.2dB | 9dB | Surface Mount |
|
TRS278-122-75+CORE & WIRE XFMRR, 40 - 1250 MHZ |
998 | - |
|
Datasheet | - | 6-SMD Module | Tape & Reel (TR) | Active | 40MHz ~ 1.25GHz | 75 / 75Ohm | 7° | 1.5dB | 30dB | Surface Mount |
|
TCW4-262+RF XFMR / SURF MT / ROHS |
4,000 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 2.6GHz | 1:4 | 13° | 1.7dB | 9.5dB | Surface Mount |
|
|
TCW4-582+RF XFMR / SURF MT / ROHS |
2,970 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | 5GHz ~ 5.8GHz | 1:4 | 13° | 1.7dB | 9.5dB | Surface Mount |
|
|
CX2147NLTBALUN 5MHZ-200MHZ 1:1 6SMD |
2,568 | - |
|
Datasheet | - | 6-SMD Module, 5 Leads | Tape & Reel (TR) | Active | 5MHz ~ 200MHz | 1:1 | - | 0.3dB | - | Surface Mount |
|
MABA-011040BALUN 1MHZ-300MHZ 50/50 6SMD GW |
3,668 | - |
|
Datasheet | - | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | 1MHz ~ 300MHz | 50 / 50Ohm | - | 0.9dB | 20dB | Surface Mount |
|
ADTL1-18-75+1:1 CORE & WIRE TRANSFORMER, 5 - |
761 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 5MHz ~ 1.8GHz | 75 / 75Ohm | 4° | 2.0dB | 9.71dB | Surface Mount |
|
BBFCG2-362+LTCC BALUN BPF, 3250 - 3950 MHZ |
4,000 | - |
|
Datasheet | - | 8-SMD, No Lead | Tape & Reel (TR) | Active | 3.25GHz ~ 3.95GHz | 1:2 | 13° | 3.0dB | 8.5dB | Surface Mount |
|
BBFCG2-532+LTCC BALUN BPF, 5000-5700 MHZ |
4,000 | - |
|
Datasheet | - | 8-SMD, No Lead | Tape & Reel (TR) | Active | 5GHz ~ 5.7GHz | 1:2 | 5° | 3.0dB | 9.5dB | Surface Mount |
|
|
BBFCG2-3275+LTCC BALUN BPF, 2875-3675 MHZ |
3,688 | - |
|
Datasheet | - | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | 2.875GHz ~ 3.675GHz | 1:2 | 13° | 3.0dB | 8.5dB | Surface Mount |
Balun FAQ
What Balun components can I source from EGOO?
You can browse available Balun product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Balun parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
