Balun
Browse available Balun components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency Range | Impedance - Unbalanced/Balanced | Phase Difference | Insertion Loss (Max) | Return Loss (Min) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCM1-63AX+1:1 CORE & WIRE TRANSFORMER, 10 |
5,010 | - |
|
Datasheet | - | 6-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 6GHz | 50 / 50Ohm | 8° | 2.5dB | 9.42dB | Surface Mount |
|
|
TCM2-63WX+1:2 CORE & WIRE TRANSFORMER, 30 |
3,739 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Active | 30MHz ~ 6GHz | 1:2 | 5° | 3.9dB | 10.37dB | Surface Mount |
|
MABA-011118BALUN |
687 | - |
|
Datasheet | - | 6-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 10GHz | 1:2 | 12° ±16 | 2.4dB | - | Surface Mount |
|
|
TCM1-83X+1:1 CORE & WIRE TRANSFORMER, 10 |
3,953 | - |
|
Datasheet | - | 6-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 8GHz | 50 / 50Ohm | 8° | 3dB | 10.56dB | Surface Mount |
|
NCR2-183+1:2 LTCC TRANSFORMER, 12000 - 18 |
751 | - |
|
Datasheet | - | 6-SMD, No Lead | Tape & Reel (TR) | Active | 12GHz ~ 18GHz | 1:2 | 15° | 2.5dB | 9.78dB | Surface Mount |
|
3A412SBALUN 800MHZ-1GHZ 50/12.5 3SMD |
410 | - |
|
Datasheet | RJE72 | 3-SMD, No Lead | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 12.5Ohm | 180° ±5° | 0.48dB | 15dB | Surface Mount |
|
JTX-2-10T+1:2 CORE & WIRE TRANSFORMER, 50 |
895 | - |
|
Datasheet | - | 6-SMD, J-Lead | Tape & Reel (TR) | Active | 50MHz ~ 1GHz | 1:2 | 3° | 1.0dB | 19.25dB | Surface Mount |
|
|
SCTX2-93-2W+1:2 XFMR, 10 - 9000 MHZ, 50 |
3,254 | - |
|
Datasheet | - | 12-SMD Module | Tape & Reel (TR) | Active | 10MHz ~ 9GHz | 1:2 | 9° | 5.9dB | - | Surface Mount |
|
|
FTB-1-6*A15+1:1 XFMR, 0.01 - 125 MHZ, 50 |
2,911 | - |
|
Datasheet | - | BNC In-Line Module | Tray | Active | 10kHz ~ 125MHz | 1:1 | - | 3.0dB | - | Chassis Mount |
|
|
MABA-011125-TR05002-20 GHZ 1:2 BALUN |
725 | - |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | 2GHz ~ 20GHz | 1:2 | - | 4.0dB | - | Surface Mount |
|
TP-101-PINBALUN 500KHZ-1.5GHZ 50/50 6FLTPK |
4,966 | - |
|
Datasheet | - | 6-FlatPack | Bulk | Active | 500kHz ~ 1.5GHz | 50 / 50Ohm | - | 0.5dB | - | Surface Mount |
|

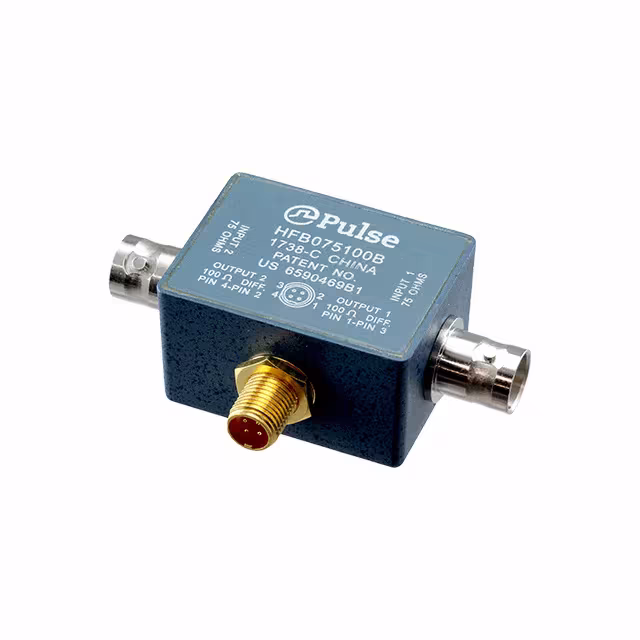

HFB075100BBALUN ADAPT 75 TO 100 OHM B PBC |
3,588 | - |
|
Datasheet | - | Module | Bulk | Active | - | 75 / 100Ohm | - | - | - | Chassis Mount |
.jpg "DEA102500LT-9052A1")
|
DEA102500LT-9052A1BALUN 2.3GHZ-2.5GHZ 0402 |
121,303 | - |
|
Datasheet | DEA | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 2.3GHz ~ 2.5GHz | 50 / -Ohm | 178° | 0.9dB | 15dB | Surface Mount |
|
|
HHM1902B1BALUN 2.4GHZ-2.5GHZ 50/50 0402 |
22,088 | - |
|
Datasheet | HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 180° ±10° | 0.8dB | 11.73dB | Surface Mount |
|
|
2000PC15C0040001EBALUN+FILTER FOR SEMTECH LR1110, |
11,244 | - |
|
Datasheet | - | 0805 (2012 Metric), 10 PC Pad | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 1:1, 50 / 50Ohm | 180° ±15 | 2.0dB | 10dB | Surface Mount |
|
|
HHM1907B1BALUN 4.9GHZ-5.95GHZ 50/50 0402 |
3,700 | - |
|
Datasheet | HHM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.9GHz ~ 5.95GHz | 50 / 50Ohm | 180° ±10° | 0.8dB | 10dB | Surface Mount |
|
|
2450BL15B0200001EBALUN 2.4GHZ-2.5GHZ 50/200 0805 |
2,903 | - |
|
Datasheet | 2450 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 200Ohm | 180° ±10° | 1.0dB | 9.5dB | Surface Mount |
|
BALF-NRG-02D3BALUN 2.4GHZ-2.5GHZ 50/50 4UFBGA |
16,629 | - |
|
Datasheet | - | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | 2.4GHz ~ 2.5GHz | 50 / 50Ohm | 3° | 1.3dB | 19dB | Surface Mount |
|
|
1720BL15B0200001EBALUN 625MHZ-2.8GHZ 50/200 0805 |
20,972 | - |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 625MHz ~ 2.8GHz | 50 / 200Ohm | 180° ±10° | 1.5dB | 9.5dB | Surface Mount |
|
|
0900BL18B0100001EBALUN 800MHZ-1GHZ 50/100 1206 |
123,026 | - |
|
Datasheet | 0900 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 800MHz ~ 1GHz | 50 / 100Ohm | 180° ±10° | 1.0dB | 9.5dB | Surface Mount |
Balun FAQ
What Balun components can I source from EGOO?
You can browse available Balun product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Balun parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
