Bipolar Transistor Arrays
Compare the current Bipolar Transistor Arrays Bipolar (BJT) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STA302ATRANS 3PNP DARL 50V 4A 8-SIP |
3,673 | - |
|
Datasheet | - | 8-SIP | Tube | Active | 3 PNP Darlington (Emitter Coupled) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 3W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|

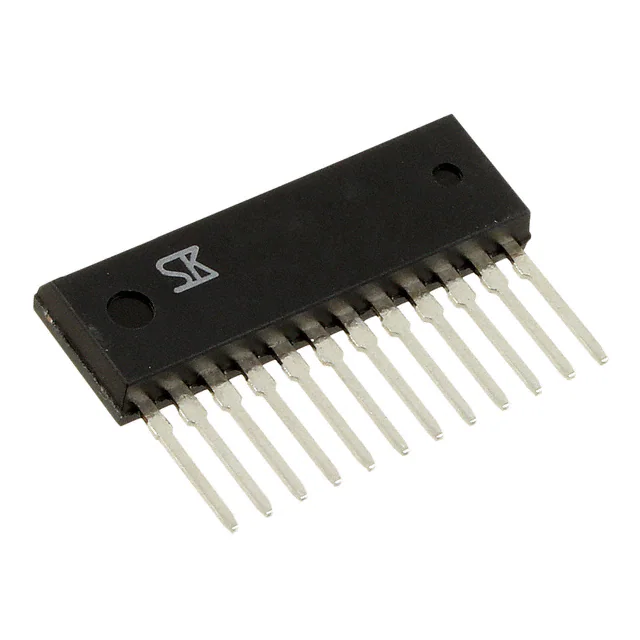

SMA4030TRANS 4NPN DARL 100V 3A 12-SIP |
2,742 | - |
|
Datasheet | - | 12-SIP | Tube | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
STA408ATRANS 4PNP DARL 120V 4A 10-SIP |
2,399 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 PNP Darlington (Quad) | 4A | 120V | 1.5V @ 4mA, 2A | 100µA (ICBO) | 2000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA404ATRANS 4NPN DARL 200V 3A 10-SIP |
791 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 200V | 2V @ 1.5mA, 1A | 100µA (ICBO) | 1000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SMA6010TRANS 3NPN/3PNP DARL 60V 12SIP |
229 | - |
|
Datasheet | - | 12-SIP | Tube | Active | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 4A | 60V | 1.5V @ 6mA, 3A | 100µA (ICBO) | 2000 @ 3A, 4V | 4W | 75MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA402ATRANS 4PNP DARL 50V 4A 10-SIP |
453 | - |
|
Datasheet | - | 10-SIP | Bulk | Active | 4 PNP Darlington (Quad) | 4A | 50V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA6024TRANS 3NPN/3PNP DARL 60V 12SIP |
614 |
1+：$7.28000 10+：$4.91100 250+：$3.21520 500+：$2.99682 |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 8A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
SLA6023TRANS 3NPN/3PNP DARL 60V 12SIP |
78 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Bulk | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 6A | 60V | 1.5V @ 10mA, 5A | 10µA (ICBO) | 2000 @ 5A, 4V | 5W | 80MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|

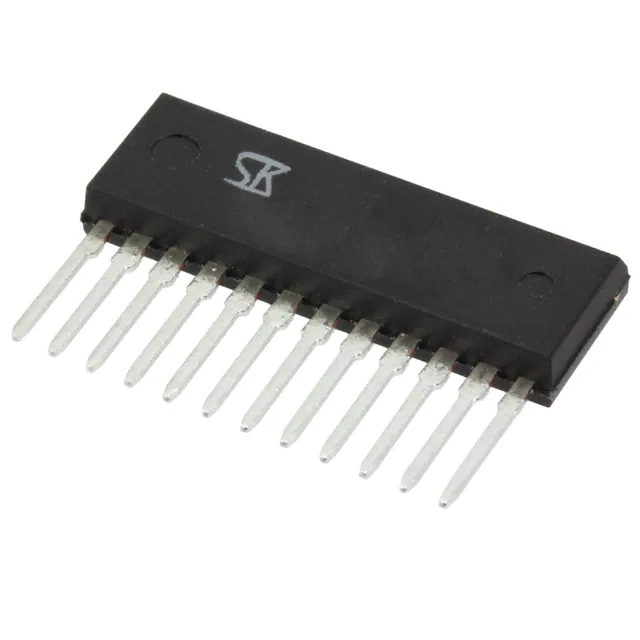

SMA4032TRANS 4NPN DARL 100V 3A 12-SIP |
1 | - |
|
Datasheet | - | 12-SIP | Bulk | Active | 4 NPN Darlington (Quad) | 3A | 100V | 1.5V @ 3mA, 1.5A | 10µA (ICBO) | 2000 @ 1.5A, 4V | 4W | 40MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
|
STA471ATRANS 4NPN DARL 60V 2A 10SIP |
9,837 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 2A | 60V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
