Bipolar Transistor Arrays
Browse available Bipolar Transistor Arrays components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG2803J-DESCTRANS 8NPN DARL 50V 500MA 18CDIP |
4,549 | - |
|
Datasheet | - | - | Tube | Active | 8 NPN Darlington | 500mA | 50V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 18-CDIP |
|
|
SG2823JTRANS 8NPN DARL 95V 500MA 18CDIP |
5,824 | - |
|
Datasheet | - | - | Tube | Active | 8 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 18-CDIP |
|
|
SG2823J-883BTRANS 8NPN DARL 95V 500MA 18CDIP |
5,473 | - |
|
Datasheet | - | - | Tube | Active | 8 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 18-CDIP |
|
|
SG2823J-DESCTRANS 8NPN DARL 95V 500MA 18CDIP |
7,893 | - |
|
Datasheet | - | - | Tube | Active | 8 NPN Darlington | 500mA | 95V | 1.6V @ 500µA, 350mA | - | 1000 @ 350mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 18-CDIP |
|
SLA6022TRANS 3NPN/3PNP DARL 12SIP |
5,047 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 5A | 80V, 100V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 2000 @ 3A, 4V | 5W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SMA4021TRANS 4PNP DARL 60V 3A 12-SIP |
7,557 | - |
|
Datasheet | - | 12-SIP | Tube | Obsolete | 4 PNP Darlington (Quad) | 3A | 60V | 1.5V @ 4mA, 2A | 10µA (ICBO) | 2000 @ 2A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SMA6080TRANS 3NPN/3PNP DARL 60V 12SIP |
4,643 | - |
|
Datasheet | - | 12-SIP | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 2A | 60V | 1.5V @ 2mA, 1A | 100µA (ICBO) | 2000 @ 1A, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
SMA6511TRANS 4NPN/1PNP DARL 60V 12SIP |
6,545 | - |
|
Datasheet | - | 12-SIP | Tube | Obsolete | 4 NPN, 1 PNP Darlington | 1.5A, 3A | 60V | 1.5V @ 2mA, 1A | 100µA (ICBO) | 2000 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
STA301ATRANS 3NPN DARL 60V 4A 8-SIP |
8,797 | - |
|
Datasheet | - | 8-SIP | Bulk | Obsolete | 3 NPN Darlington (Emitter Coupled) | 4A | 60V | 2V @ 10mA, 3A | 100µA (ICBO) | 1000 @ 3A, 4V | 3W | - | 150°C (TJ) | - | - | Through Hole | 8-SIP |
|
STA413ATRANS 4NPN QUAD 35V 3A 10-SIP |
6,350 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN (Quad) | 3A | 35V | 500mV @ 5mA, 1A | 10µA (ICBO) | 500 @ 500mA, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA431ATRANS 2NPN/2PNP 60V 3A 10-SIP |
3,361 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 2 NPN, 2 PNP (H-Bridge) | 3A | 60V | 1V @ 200mA, 2A | 100µA (ICBO) | 40 @ 1A, 4V | 4W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA460CTRANS 2NPN DARL 60V 6A 10-SIP |
3,753 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 2 NPN Darlington (Dual) | 6A | 60V | 150mV @ 15mA, 1.5A | 10µA (ICBO) | 700 @ 1A, 1V | 3.2W | - | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA472ATRANS 4PNP DARL 60V 2A 10-SIP |
6,683 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 PNP Darlington (Quad) | 2A | 60V | 1.5V @ 2mA, 1A | 10µA (ICBO) | 2000 @ 1A, 4V | 4W | 100MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
|
STA485ATRANS 4NPN DARL 100V 1A 10-SIP |
4,158 | - |
|
Datasheet | - | 10-SIP | Bulk | Obsolete | 4 NPN Darlington (Quad) | 1A | 100V | 1.5V @ 1mA, 500mA | 10µA (ICBO) | 2000 @ 500mA, 4V | 4W | 50MHz | 150°C (TJ) | - | - | Through Hole | 10-SIP |
|
SLA6012TRANS 3NPN/3PNP DARL 60V 12SIP |
6,743 | - |
|
Datasheet | - | 12-SIP Exposed Tab | Tube | Obsolete | 3 NPN, 3 PNP Darlington (3-Phase Bridge) | 4A | 60V | 1.5V @ 6mA, 3A | 10µA (ICBO) | 2000 @ 3A, 4V | 5W, 25W | - | 150°C (TJ) | - | - | Through Hole | 12-SIP |
|
HN3A51F(TE85L,F)TRANS 2PNP DUAL 120V 100MA SM6 |
3,239 | - |
|
Datasheet | - | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | 2 PNP (Dual) | 100mA | 120V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 200 @ 2mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SM6 |
|
|
HN3C51F-BL(TE85L,FTRANS 2NPN DUAL 120V 100MA SM6 |
9,967 | - |
|
Datasheet | - | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 100mA | 120V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 350 @ 2mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SM6 |
|
|
HN3C51F-GR(TE85L,FTRANS 2NPN DUAL 120V 100MA SM6 |
6,117 | - |
|
Datasheet | - | SC-74, SOT-457 | Tape & Reel (TR) | Obsolete | 2 NPN (Dual) | 100mA | 120V | 300mV @ 1mA, 10mA | 100nA (ICBO) | 200 @ 2mA, 6V | 300mW | 100MHz | 150°C (TJ) | - | - | Surface Mount | SM6 |
|
HN4B04J(TE85L,F)TRANS NPN/PNP 30V 500MA SMV |
6,685 | - |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP | 500mA | 30V | 250mV @ 10mA, 100mA | 100µA (ICBO) | 70 @ 100mA, 1V | 300mW | 200MHz | 150°C (TJ) | - | - | Surface Mount | SMV |
|

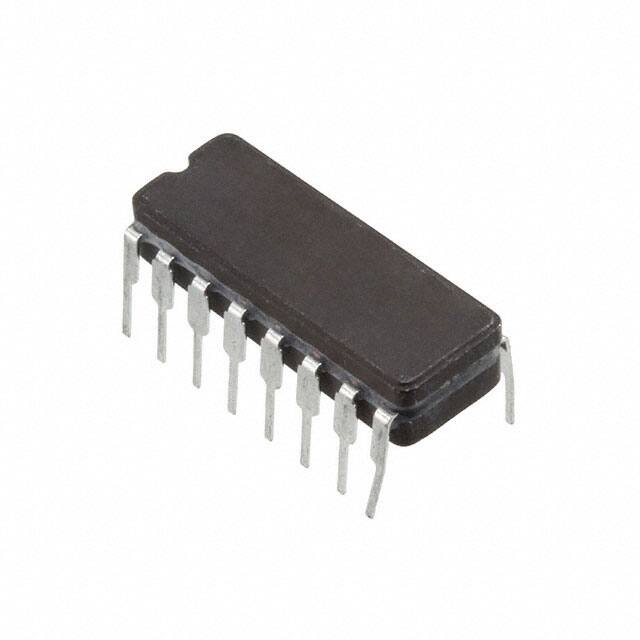

SG2013J-883BTRANS 7NPN DARL 50V 600MA 16CDIP |
5,075 | - |
|
Datasheet | - | - | Bulk | Active | 7 NPN Darlington | 600mA | 50V | 1.9V @ 600µA, 500mA | - | 900 @ 500mA, 2V | - | - | 150°C (TJ) | - | - | Through Hole | 16-CDIP |
Bipolar Transistor Arrays FAQ
What Bipolar Transistor Arrays components can I source from EGOO?
You can browse available Bipolar Transistor Arrays product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Bipolar Transistor Arrays parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
