Single Bipolar Transistors
Compare the current Single Bipolar Transistors Bipolar (BJT) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SD12720PTRANS NPN 150V 2.5A TO-220F-A1 |
9,582 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN | 2.5 A | 150 V | 1V @ 20mA, 500mA | 100µA (ICBO) | 800 @ 200mA, 4V | 2 W | 25MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
2SD14850PTRANS NPN 100V 5A TOP-3F-A1 |
2,498 | - |
|
Datasheet | - | TOP-3F | Bulk | Obsolete | NPN | 5 A | 100 V | 2V @ 300mA, 3A | 50µA (ICBO) | 100 @ 1A, 5V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
|
2SD1535TRANS NPN DARL 400V 7A TO220F-A1 |
5,748 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 7 A | 400 V | 2V @ 70mA, 7A | 100µA | 500 @ 2A, 2V | 2 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|
|
2SD16330PTRANS NPN DARL 100V 5A TO220F-A1 |
3,243 | - |
|
Datasheet | - | TO-220-3 Full Pack | Bulk | Obsolete | NPN - Darlington | 5 A | 100 V | 1.5V @ 3mA, 3A | 100µA | 5000 @ 3A, 3V | 2 W | 15MHz | 150°C (TJ) | - | - | Through Hole | TO-220F-A1 |
|

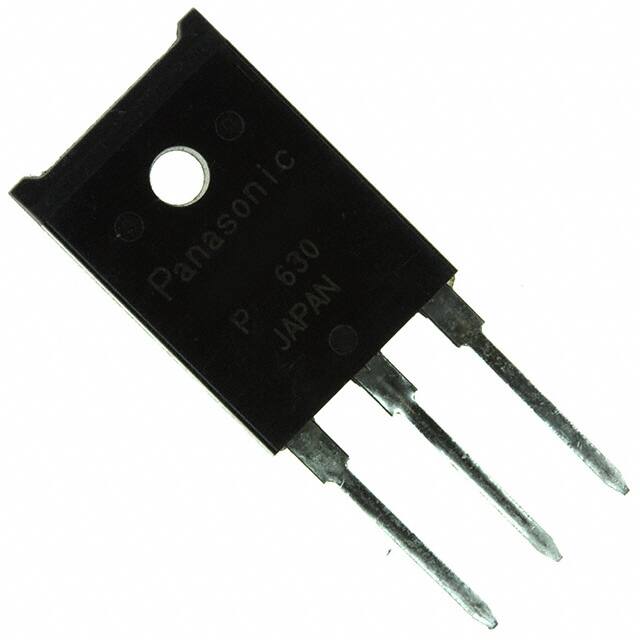

2SD17050PTRANS NPN 80V 10A TOP-3F-A1 |
4,973 | - |
|
Datasheet | - | TOP-3F | Bulk | Obsolete | NPN | 10 A | 80 V | 1.5V @ 1A, 10A | 10µA (ICBO) | 130 @ 3A, 2V | 3 W | 20MHz | 150°C (TJ) | - | - | Through Hole | TOP-3F-A1 |
|
2SD18230RLTRANS NPN 40V 0.05A SMINI3-G1 |
5,138 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | NPN | 50 mA | 40 V | 200mV @ 1mA, 10mA | 1µA | 400 @ 2mA, 10V | 150 mW | 120MHz | 150°C (TJ) | - | - | Surface Mount | SMini3-G1 |
|
2SD20670RATRANS NPN DARL 100V 2A MT-2-A1 |
8,772 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 100 V | 1.5V @ 1mA, 1A | 100nA (ICBO) | 8000 @ 1A, 10V | 1 W | - | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
2SD2138APATRANS NPN DARL 80V 2A MT-4-A1 |
2,445 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN - Darlington | 2 A | 80 V | 2.5V @ 8mA, 2A | 100µA | 4000 @ 2A, 4V | 15 W | 20MHz | 150°C (TJ) | - | - | Through Hole | MT-4-A1 |
|
|
2SD21840RATRANS NPN 150V 1A MT-2-A1 |
7,908 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 1 A | 150 V | 300mV @ 25mA, 500mA | 100nA (ICBO) | 120 @ 100mA, 2V | 1 W | 90MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
|
|
2SD225900ATRANS NPN 20V 0.7A MT-2-A1 |
6,206 | - |
|
Datasheet | - | 3-SIP | Tape & Box (TB) | Obsolete | NPN | 700 mA | 20 V | 400mV @ 50mA, 500mA | 10µA | 1000 @ 150mA, 10V | 1 W | 55MHz | 150°C (TJ) | - | - | Through Hole | MT-2-A1 |
Single Bipolar Transistors FAQ
How can I narrow the current Single Bipolar Transistors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Bipolar Transistors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
