Single Bipolar Transistors
Compare the current Single Bipolar Transistors Bipolar (BJT) selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMBTA56-7TRANS PNP 80V 0.5A SOT-23-3 |
2,580 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | PNP | 500 mA | 80 V | 250mV @ 10mA, 100mA | 100nA (ICBO) | 100 @ 100mA, 1V | 300 mW | 50MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
MMBTA13-7TRANS NPN DARL 30V 0.3A SOT-23-3 |
2,445 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN - Darlington | 300 mA | 30 V | 1.5V @ 100µA, 100mA | 100nA (ICBO) | 10000 @ 100mA, 5V | 300 mW | 125MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
MMBTA42-7TRANS NPN 300V 0.5A SOT-23-3 |
2,486 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | NPN | 500 mA | 300 V | 500mV @ 2mA, 20mA | 100nA (ICBO) | 40 @ 30mA, 10V | 300 mW | 50MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
MMBTA92-7TRANS PNP 300V 0.5A SOT-23-3 |
3,096 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Discontinued at Digi-Key | PNP | 500 mA | 300 V | 500mV @ 2mA, 20mA | 250nA (ICBO) | 25 @ 30mA, 10V | 300 mW | 50MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
,TO-226_straightlead.jpg "ZTX788BSTOA")
|
ZTX788BSTOATRANS PNP 15V 3A E-LINE |
2,731 | - |
|
Datasheet | - | E-Line-3, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 3 A | 15 V | 450mV @ 10mA, 2A | 100nA (ICBO) | 500 @ 10mA, 2V | 1 W | 100MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZTX790ASTOATRANS PNP 40V 2A E-LINE |
5,787 | - |
|
Datasheet | - | E-Line-3, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 2 A | 40 V | 750mV @ 50mA, 2A | 100nA (ICBO) | 300 @ 10mA, 2V | 1 W | 100MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|
|
ZTX792ASTOATRANS PNP 70V 2A E-LINE |
2,743 | - |
|
Datasheet | - | E-Line-3, Formed Leads | Tape & Reel (TR) | Obsolete | PNP | 2 A | 70 V | 500mV @ 200mA, 2A | 100nA (ICBO) | 300 @ 10mA, 2V | 1 W | 100MHz | -55°C ~ 200°C (TJ) | - | - | Through Hole | E-Line (TO-92 compatible) |
|

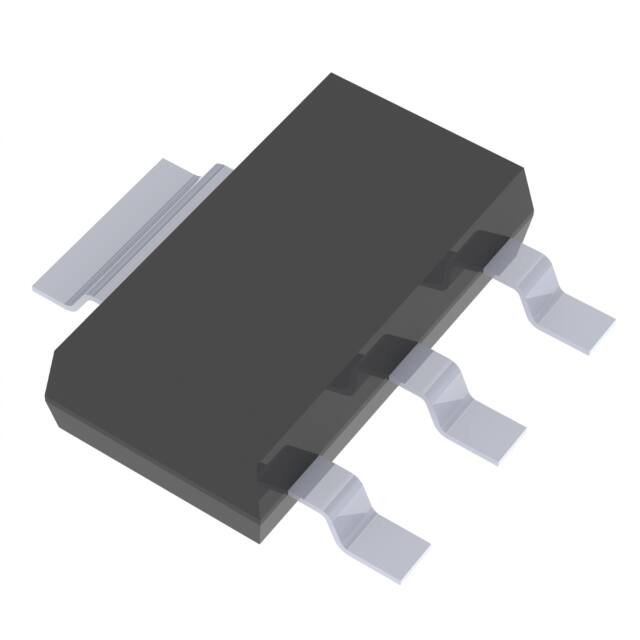

FZT560QTCTRANS PNP 500V 0.15A SOT-223 |
5,545 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | PNP | 150 mA | 500 V | 500mV @ 10mA, 50mA | 100nA | 100 @ 1mA, 10V | 2 W | 60MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-223 |
|
FZT788BTCTRANS PNP 15V 3A SOT-223-3 |
7,147 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | PNP | 3 A | 15 V | 500mV @ 50mA, 3A | 100nA (ICBO) | 500 @ 10mA, 2V | 2 W | 100MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
ZXT13P40DE6QTATRANS PNP 40V 3A SOT-26 |
5,221 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | PNP | 3 A | 40 V | 240mV @ 300mA, 3A | 100nA | 300 @ 1A, 2V | 1.1 W | 115MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-26 |
Single Bipolar Transistors FAQ
How can I narrow the current Single Bipolar Transistors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Bipolar Transistors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
