Cable and Cord Grips
Compare the current Cable and Cord Grips Cables, Wires - Management selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DB-7CABLE GRIP 3.18-6.35MM ALUMINUM |
4,586 | - |
|
Datasheet | Cable Grip | 0.125" (3.18mm) | 0.250" (6.35mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
|
DB-314CABLE GRIP 4.75-6.35MM ALUMINUM |
2,408 | - |
|
Datasheet | Cable Grip | 0.187" (4.75mm) | 0.250" (6.35mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
|
DB-338CABLE GRIP 7.93-9.53MM ALUMINUM |
3,893 | - |
|
Datasheet | Cable Grip | 0.312" (7.93mm) | 0.375" (9.53mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
|
DB-9CABLE GRIP 9.53-12.7MM ALUMINUM |
1,858 | - |
|
Datasheet | Cable Grip | 0.375" (9.53mm) | 0.500" (12.70mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
|
DB-10CABLE GRIP 12.7-15.88MM |
2,112 | - |
|
Datasheet | Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|

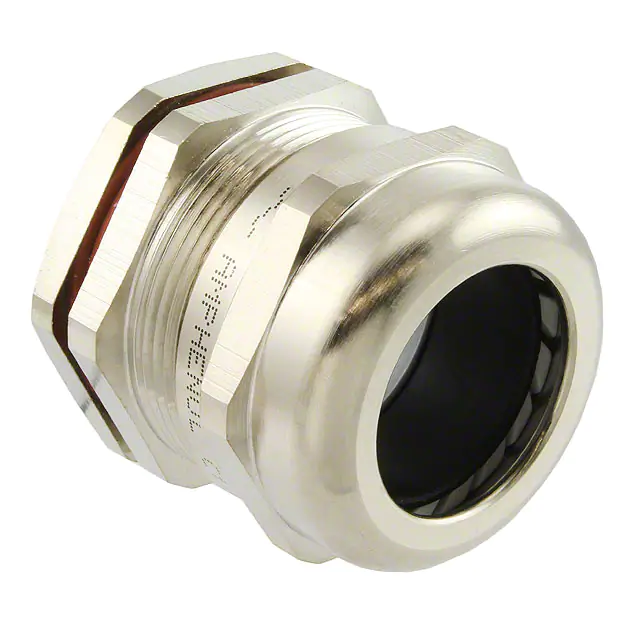

AIO-CSJM36CABLE GLAND 18.01-25MM M36 BRASS |
3,064 | - |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M36x2 | 0.394" (10.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

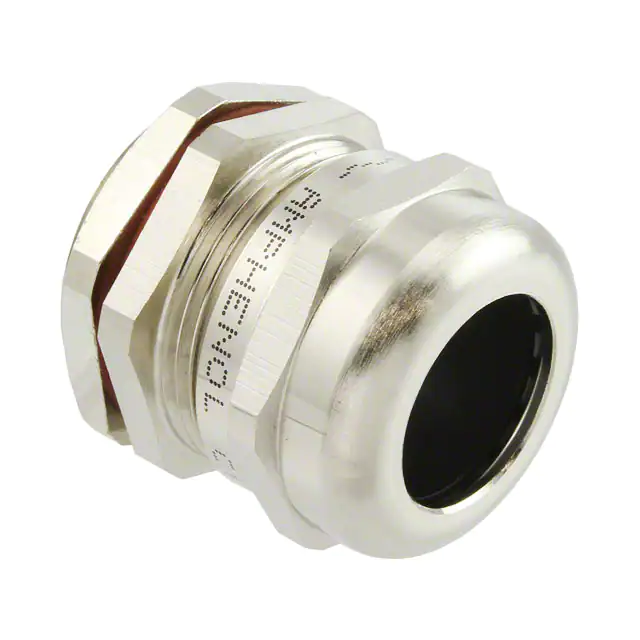

AIO-CSJM27CABLE GLAND 13-18.01MM M27 BRASS |
1,190 | - |
|
Datasheet | Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M27x2 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

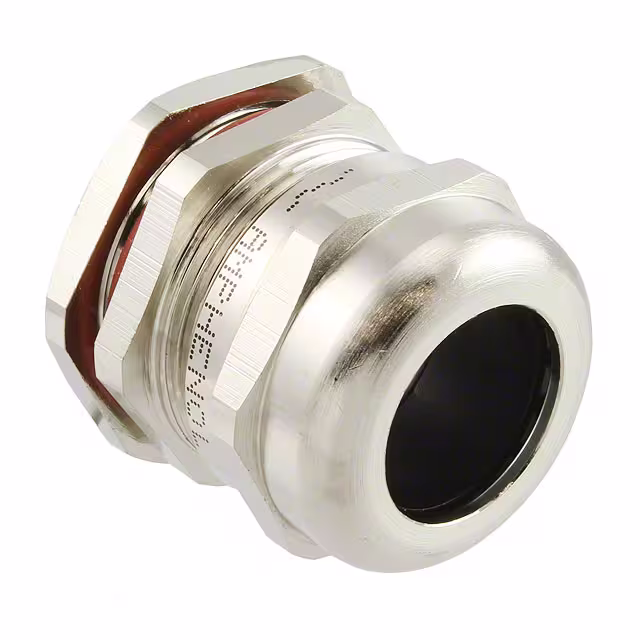

AIO-CSJPG21CABLE GLND 13-18.01MM PG21 BRASS |
3,091 | - |
|
Datasheet | Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.315" (8.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
AIO-CSJM50CABLE GLAND 32-38MM M50 BRASS |
2,410 | - |
|
Datasheet | Cable Gland | 1.260" (32.00mm) | 1.496" (38.00mm) | M50x1.5 | 0.433" (11.00mm) | - | - | Brass | Panel Nut, Sealing Nut | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
DB-4CABLE GRIP 9.53-11.1MM ALUMINUM |
4,277 | - |
|
Datasheet | Cable Grip | 0.375" (9.53mm) | 0.437" (11.10mm) | - | - | 3/8" (9.5mm) | 0.688" (17.5mm) | Aluminum | Compression Nut, Strain Relief | Silver | - | - |
Cable and Cord Grips FAQ
How can I narrow the current Cable and Cord Grips selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Cable and Cord Grips parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
