Cable and Cord Grips
Browse available Cable and Cord Grips components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
CG-P-M18-1.5CABLE GLAND 5-10MM M18 POLYAMIDE |
1,732 | - |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M18 | 0.354" (9.00mm) | - | 0.720" (18.3mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
CG-P-11CABLE GLAND 5-10MM PG11 POLYAMID |
1,365 | - |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.354" (9.00mm) | - | 0.736" (18.7mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|
|
CG-P-M20CABLE GLAND 6-11MM M20 POLYAMIDE |
1,548 | - |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.433" (11.00mm) | M20 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut, Seal | - | IP68 - Dust Tight, Waterproof | - | |
|

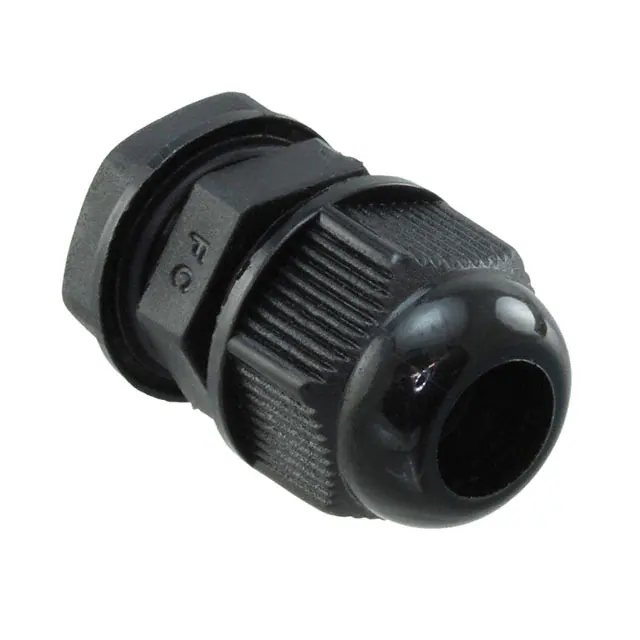

GC1000-BCABLE GLAND 3.5-8MM M16 POLYAMID |
1,622 | - |
|
Datasheet | Cable Gland | 0.138" (3.50mm) | 0.315" (8.00mm) | M16x1.5 | 0.335" (8.50mm) | - | 0.650" (16.5mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Black | IP67 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
M4514CABLE GRIP 1.65-5.33MM 1/4" NPT |
1,366 | - |
|
Datasheet | Cable Grip | 0.065" (1.65mm) | 0.210" (5.33mm) | 1/4" NPT | 0.450" (11.43mm) | - | 0.540" (13.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3458CABLE GRIP 1.75-4.75MM 3/8" NPT |
12,535 | - |
|
Datasheet | Cable Grip | 0.069" (1.75mm) | 0.187" (4.75mm) | 3/8" NPT | 0.530" (13.46mm) | - | 0.669" (17.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
3211CABLE GRIP 4.6-7.93MM PG9 |
10,048 | - |
|
Datasheet | Cable Grip | 0.181" (4.60mm) | 0.312" (7.93mm) | PG9 | 0.340" (8.64mm) | - | 0.600" (15.2mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.612 PA7035LCABLE GLAND 3-6.5MM M12 POLYAMID |
466 | - |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

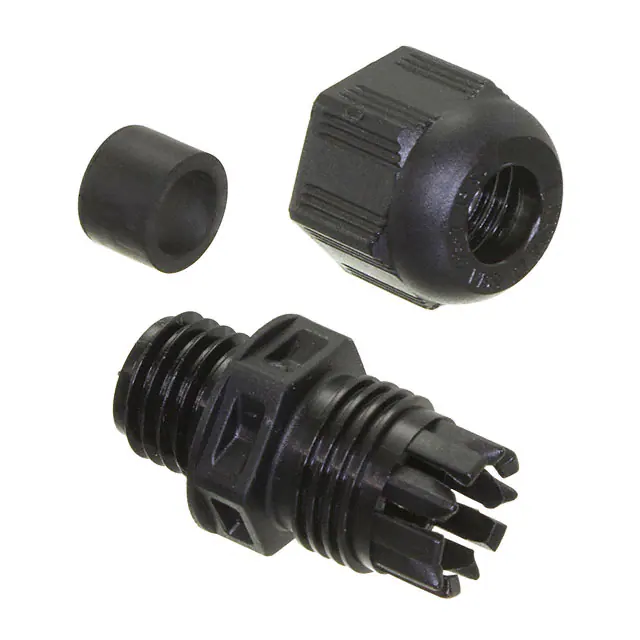

98121.1CABLE GLAND 3.05-7.11MM M12 |
179 | - |
|
Datasheet | Cable Gland | 0.120" (3.05mm) | 0.280" (7.11mm) | M12x1.5 | 0.350" (8.89mm) | - | 0.470" (11.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | - | |
|
IPG-222135-GCABLE GLAND 6.1-11.94MM PG13.5 |
3,142 | - |
|
Datasheet | Cable Gland | 0.240" (6.10mm) | 0.470" (11.94mm) | PG13.5 | 0.350" (8.89mm) | - | 0.800" (20.3mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
CG-PG11-2-BKCABLE GLAND 5-10MM PG11 POLYAMID |
583 | - |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | 0.740" (18.8mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
3208CABLE GRIP 2.9-6.35MM PG7 |
769 | - |
|
Datasheet | Cable Grip | 0.114" (2.90mm) | 0.250" (6.35mm) | PG7 | 0.330" (8.38mm) | - | 0.492" (12.5mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
50.616 PA/RSWCABLE GLAND 3-10MM M16 POLYAMIDE |
714 | - |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.11213PA/SWCABLE GLAND 6-12MM 1/2" NPT |
145 | - |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | 1/2" NPT | 0.571" (14.50mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
M3458CABLE GRIP 1.65-5.84MM 3/8" NPT |
10,708 | - |
|
Datasheet | Cable Grip | 0.065" (1.65mm) | 0.230" (5.84mm) | 3/8" NPT | 0.490" (12.45mm) | - | 0.681" (17.3mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
CG-PG9-2-BKCABLE GLAND 4-8MM PG9 POLYAMIDE |
789 | - |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.606" (15.4mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
M4338CABLE GRIP 2.41-7.37MM M20 |
8,369 | - |
|
Datasheet | Cable Grip | 0.095" (2.41mm) | 0.290" (7.37mm) | M20 | 0.410" (10.41mm) | - | 0.787" (20.0mm) | Polyamide (PA66), Nylon 6/6 | Locknut | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
M4516CABLE GRIP 2.92-6.35MM 1/4" NPT |
11,410 | - |
|
Datasheet | Cable Grip | 0.115" (2.92mm) | 0.250" (6.35mm) | 1/4" NPT | 0.450" (11.43mm) | - | 0.540" (13.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
|
CG-PG7-2-BKCABLE GLAND 3-6.5MM PG7 POLYAMID |
1,563 | - |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | PG7 | 0.315" (8.00mm) | - | 0.500" (12.7mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
1411126CABLE GLAND 11-16.99MM M25 |
192 | - |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
