Chassis Mount Resistors
Browse available Chassis Mount Resistors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPR100 120R JLOW PROFILE 100 WATTS 120OHM 5% |
24 | - |
|
Datasheet | LPR | Rectangular Case | Box | Active | 120 Ohms | ±5% | 100W | - | - | 250°C | - | Aluminum | Screw Holes | 3.937" L x 2.953" W (100.00mm x 75.00mm) | 0.244" (6.20mm) | Wire Leads | - | - | - |
|
HS100 150R FRES CHAS MNT 150 OHM 1% 100W |
79 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 150 Ohms | ±1% | 100W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 2.566" L x 1.075" W (65.20mm x 27.30mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
|
HS100 2K FRES CHAS MNT 2 OHMS 1% 100W |
45 | - |
|
Datasheet | HS | Axial, Box | Box | Active | 2 kOhms | ±1% | 100W | Wirewound | 25ppm/°C | - | Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
|
HS100 560R FRES CHAS MNT 560 OHMS 1% 100W |
45 | - |
|
Datasheet | HS | Axial, Box | Box | Active | 560 Ohms | ±1% | 100W | Wirewound | 100ppm/°C | - | Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
|
HS100 47R FRES CHAS MNT 47 OHMS 1% 100W |
45 | - |
|
Datasheet | HS | Axial, Box | Box | Active | 47 Ohms | ±1% | 100W | Wirewound | 100ppm/°C | - | Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
|
HS100 40R FRES CHAS MNT 40 OHMS 1% 100W |
45 | - |
|
Datasheet | HS | Axial, Box | Box | Active | 40 Ohms | ±1% | 100W | Wirewound | 100ppm/°C | - | Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
|
HS100 15R FRES CHAS MNT 15 OHMS 1% 100W |
44 | - |
|
Datasheet | HS | Axial, Box | Box | Active | 15 Ohms | ±1% | 100W | Wirewound | 100ppm/°C | - | Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
|
HS100 300R FRES CHAS MNT 300 OHMS 1% 100W |
18 | - |
|
Datasheet | HS | Axial, Box | Box | Active | 300 Ohms | ±1% | 100W | Wirewound | 100ppm/°C | - | Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
UWP100-120RJ8CHAS MNT 120 OHM 100W BRKT |
67 | - |
|
Datasheet | UWP | Radial, Rectangular Case | Bulk | Active | 120 Ohms | ±5% | 100W | Wirewound | ±260ppm/°C | -55°C ~ 275°C | Flame Proof, Safety | Ceramic | Brackets | 4.449" L x 0.894" W (113.00mm x 22.70mm) | 0.894" (22.70mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
UWP100-150RJ8CHAS MNT 150 OHM 100W BRKT |
66 | - |
|
Datasheet | UWP | Radial, Rectangular Case | Bulk | Active | 150 Ohms | ±5% | 100W | Wirewound | ±260ppm/°C | -55°C ~ 275°C | Flame Proof, Safety | Ceramic | Brackets | 4.449" L x 0.894" W (113.00mm x 22.70mm) | 0.894" (22.70mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
RH0101R000FC02RES CHAS MNT 1 OHM 1% 12.5W |
10 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 1 Ohms | ±1% | 12.5W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 0.405" (10.29mm) | Solder Lugs | - | - | - |
|
|
LPR100 33R JLOW PROFILE 100 WATTS 33OHM 5% |
80 | - |
|
Datasheet | LPR | Rectangular Case | Box | Active | 33 Ohms | ±5% | 100W | - | - | 250°C | - | Aluminum | Screw Holes | 3.937" L x 2.953" W (100.00mm x 75.00mm) | 0.244" (6.20mm) | Wire Leads | - | - | - |
|
NHS100 2R2 JRES CHAS MNT 2.2 OHMS 5% 100W |
43 | - |
|
Datasheet | ARCOL, HS | Axial, Box | Box | Active | 2.2 Ohms | ±5% | 100W | Wirewound | ±100ppm/°C | - | Non-Inductive, Pulse Withstanding | Aluminum | Flanges | 2.567" L x 1.870" W (65.20mm x 47.50mm) | 0.949" (24.10mm) | Solder Lugs | - | - | - |
|
L50J200ERES CHAS MNT 200 OHM 5% 50W |
42 | - |
|
Datasheet | 270 | Radial, Tubular | Bulk | Active | 200 Ohms | ±5% | 50W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | Flame Retardant Coating, Safety | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 4.000" L (14.30mm x 101.60mm) | - | Solder Lugs | - | - | - |
|
L50J4R0ERES CHAS MNT 4 OHM 5% 50W |
22 | - |
|
Datasheet | 270 | Radial, Tubular | Bulk | Active | 4 Ohms | ±5% | 50W | Wirewound | ±400ppm/°C | -55°C ~ 350°C | Flame Retardant Coating, Safety | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 4.000" L (14.30mm x 101.60mm) | - | Solder Lugs | - | - | - |

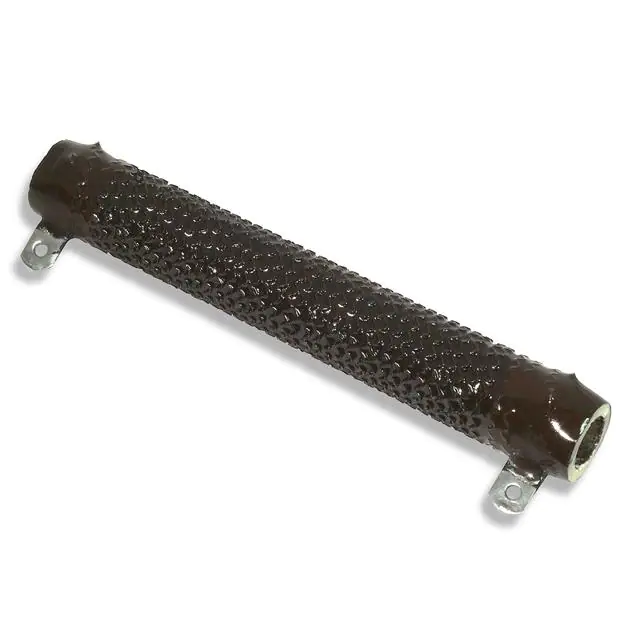

.jpg "C300KR63E")
|
C300KR63ERES CHAS MNT 0.63 OHM 10% 300W |
8 | - |
|
Datasheet | Corrib®280 | Radial, Tubular | Bulk | Active | 630 mOhms | ±10% | 300W | Wirewound | ±400ppm/°C | -55°C ~ 400°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) | - | Solder Lugs | - | - | - |
|
|
RH01010K00FC02RES CHAS MNT 10K OHM 1% 12.5W |
10 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 10 kOhms | ±1% | 12.5W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.750" L x 0.800" W (19.05mm x 20.32mm) | 0.405" (10.29mm) | Solder Lugs | - | - | - |
|
L25J10R25W 10 OHMS VIT 5% |
50 | - |
|
Datasheet | 270 | Radial, Tubular | Bulk | Active | 10 Ohms | ±5% | 25W | Wirewound | ±400ppm/°C | - | Flame Retardant Coating, Safety | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | Solder Lugs | - | - | - |
|
50/100MNJ5R00DERES CHAS MNT 5 OHM 5% 100W |
6 | - |
|
Datasheet | Metalohm | Module | Bulk | Active | 5 Ohms | ±5% | 100W | Wirewound | ±180ppm/°C | -55°C ~ 275°C | Flame Proof, Non-Inductive, Pulse Withstanding, Safety | Steel | Flanges | 3.688" L x 0.750" W (93.68mm x 19.05mm) | 0.750" (19.05mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
.jpg "L225J10K")
|
L225J10KRES CHAS MNT 10K OHM 5% 225W |
7 | - |
|
Datasheet | 270 | Radial, Tubular | Bulk | Active | 10 kOhms | ±5% | 225W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | Flame Retardant Coating, Safety | Vitreous Enamel Coated | Brackets (not included) | 1.126" Dia x 10.500" L (28.60mm x 266.70mm) | - | Solder Lugs | - | - | - |
