Chassis Mount Resistors
Compare the current Chassis Mount Resistors Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

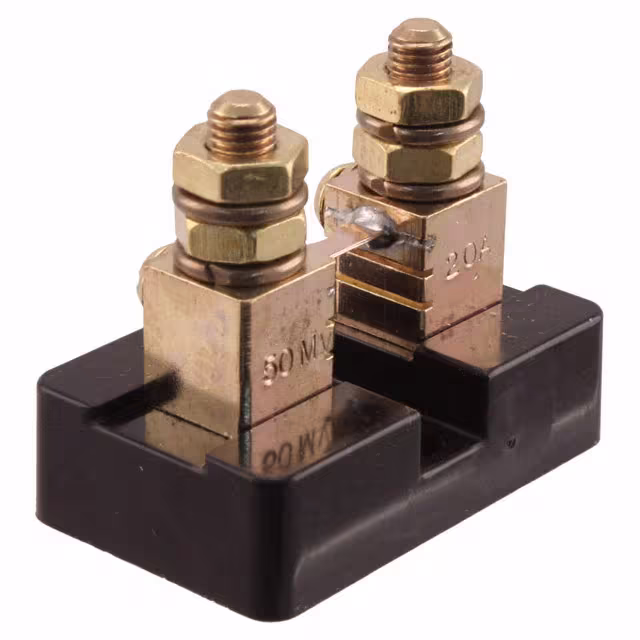

3020-01098-0RES CHAS MNT 0.0025 OHM .25% 1W |
24 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 2.5 mOhms | ±0.25% | 1W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.248" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|
3020-01102-0RES CHAS MNT 167 UOHM .25% |
6 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 167 µOhms | ±0.25% | 15W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 1.750" (44.45mm) | - | - | - | - |
|
|
3020-01104-0RES CHAS MNT 62.5 UOHM .25% |
100 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 62.5 µOhms | ±0.25% | 40W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 4.500" L x 2.500" W (114.30mm x 63.50mm) | 2.160" (54.90mm) | - | - | - | - |
|

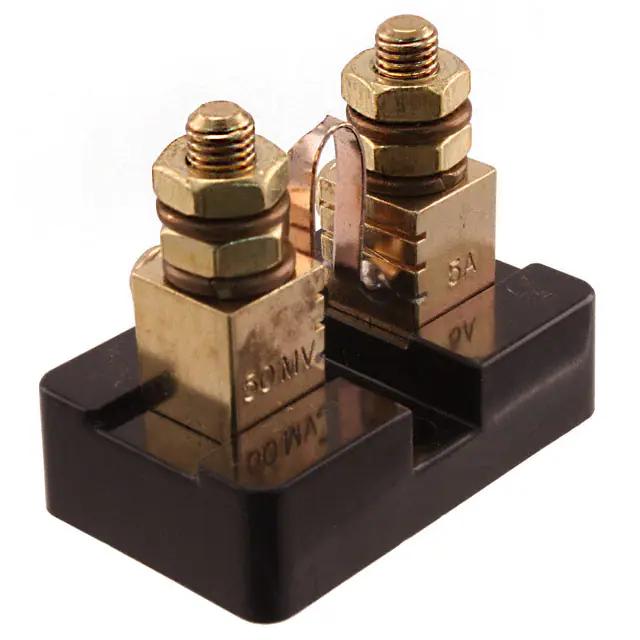

3020-01097-0RES CHAS MNT 0.01 OHM .25% 1/4W |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 10 mOhms | ±0.25% | 0.25W, 1/4W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.248" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|

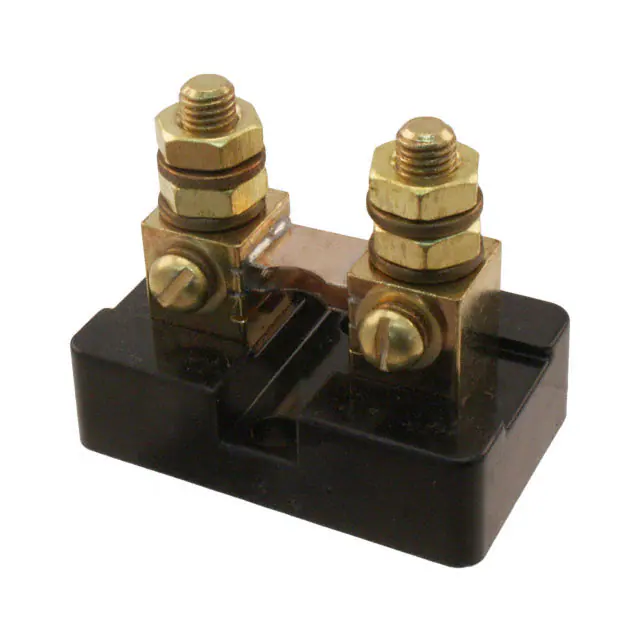

3020-01099-0RES CHAS MNT 500 UOHM .25% 5W |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 500 µOhms | ±0.25% | 5W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.248" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|

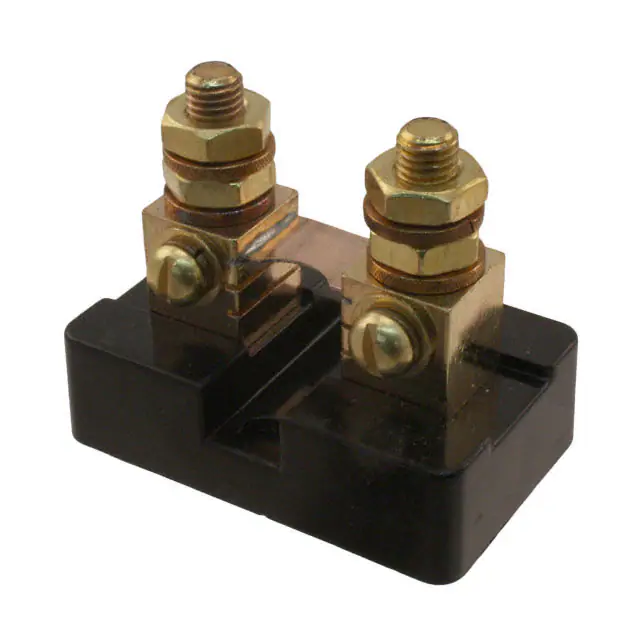

3020-01096-0RES CHAS MNT 0.001 OHM .25% 2.5W |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 1 mOhms | ±0.25% | 2.5W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.248" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|
3020-01100-0RES CHAS MNT 330 UOHM .25% |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 330 µOhms | ±0.25% | 7.5W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.250" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|

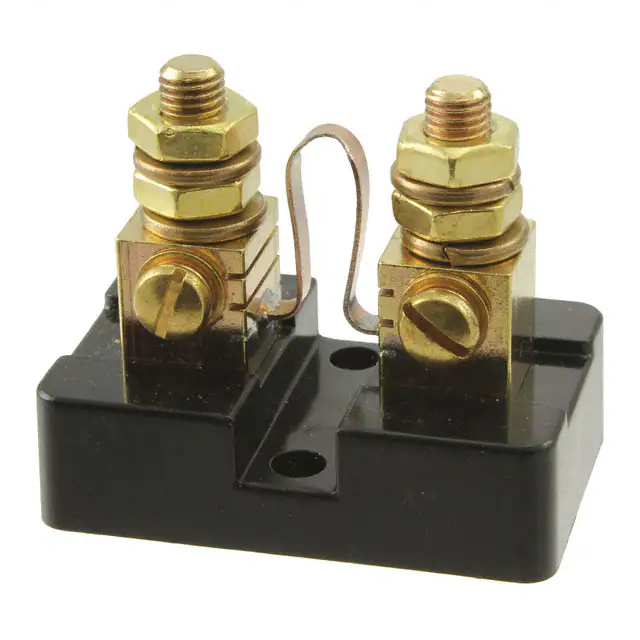

3020-01107-0RES CHAS MNT 0.01 OHM .25% 1W |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 10 mOhms | ±0.25% | 1W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.250" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|
|

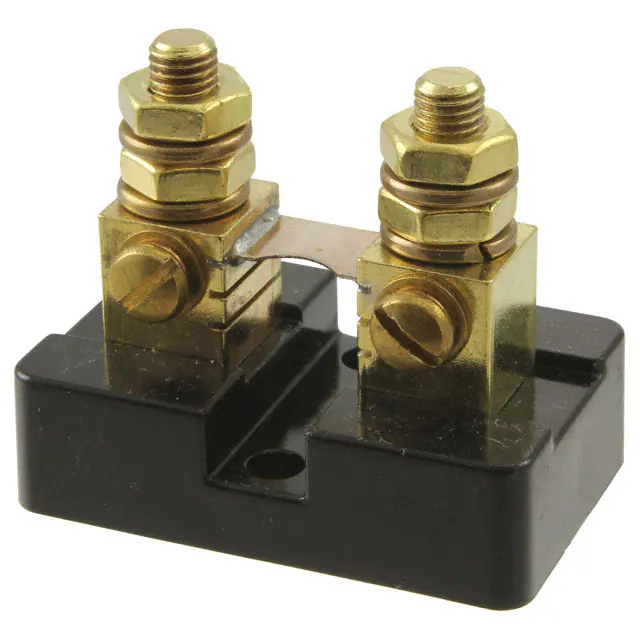

3020-01108-0RES CHAS MNT 0.001 OHM .25% 10W |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 1 mOhms | ±0.25% | 10W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 2.000" L x 1.250" W (50.80mm x 31.70mm) | 1.680" (42.70mm) | - | - | - | - |
|
|

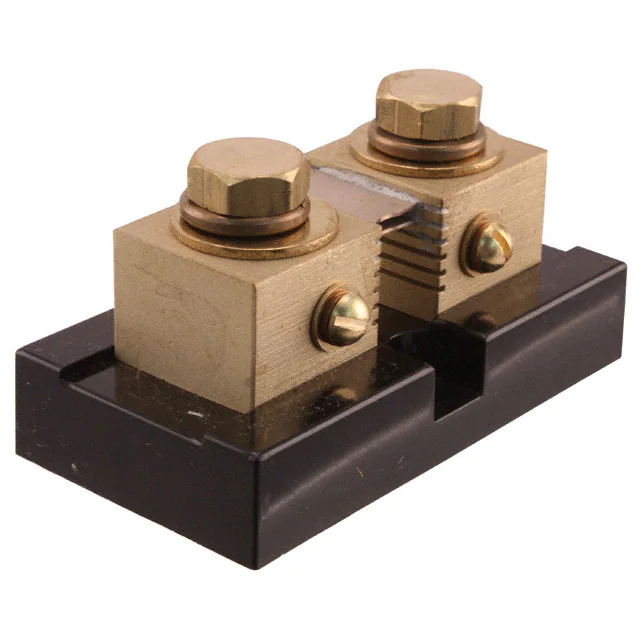

3020-01101-0RES CHAS MNT 250 UOHM .25% |
0 | - |
|
Datasheet | DMS | Rectangular Case | Bulk | Obsolete | 250 µOhms | ±0.25% | 10W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense | - | Flanges | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 1.750" (44.45mm) | - | - | - | - |
Chassis Mount Resistors FAQ
How can I narrow the current Chassis Mount Resistors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chassis Mount Resistors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
