Chassis Mount Resistors
Compare the current Chassis Mount Resistors Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

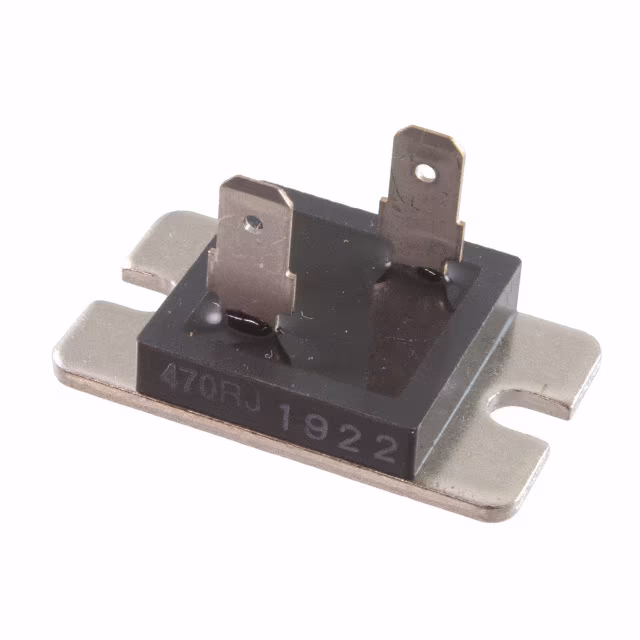

TGHDV470RJE100W MINI SOT227 470 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 470 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

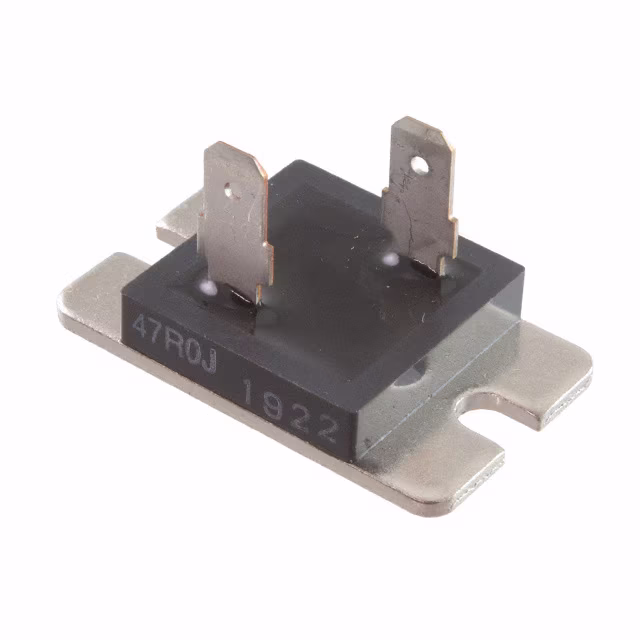

TGHDV47R0JE100W MINI SOT227 47 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 47 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

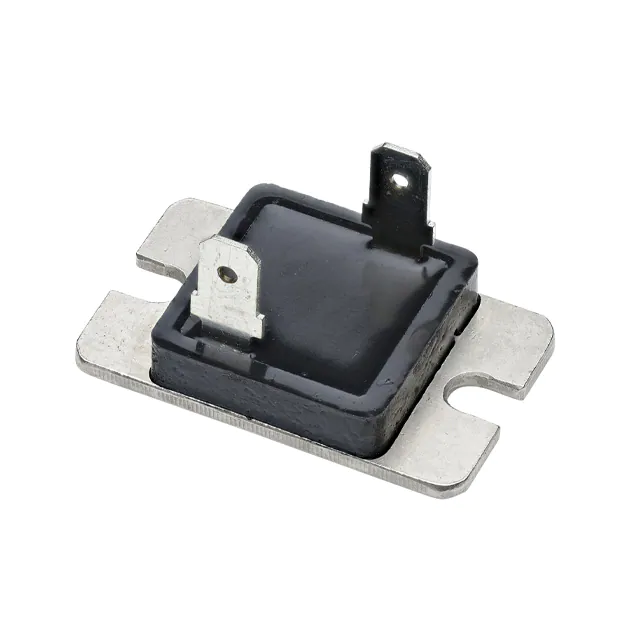

TGHDV100RJE100W MINI SOT227 100 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 100 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|
|
TGHDV1R00JE100W MINI SOT227 1 OHM 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 1 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

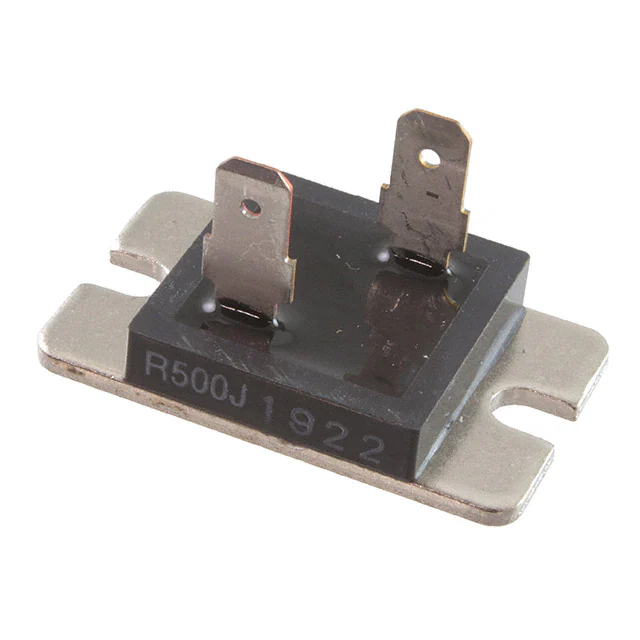

TGHDVR500JE100W MINI SOT227 0.50 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 500 mOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

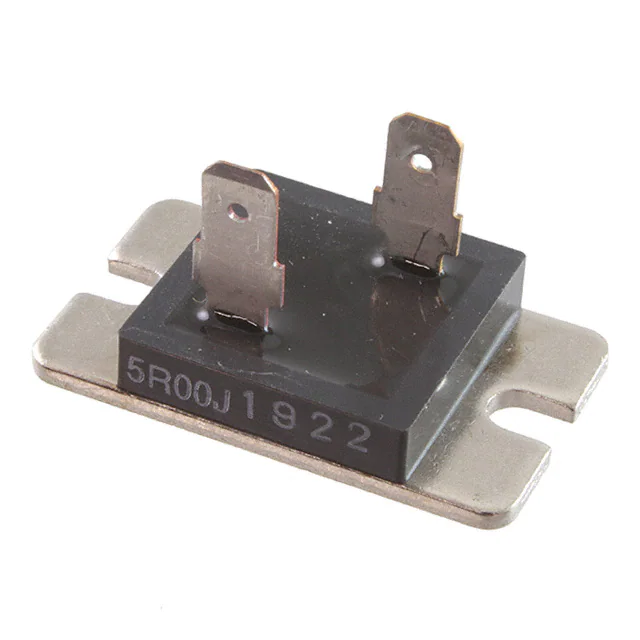

TGHDV5R00JE100W MINI SOT227 5 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 5 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

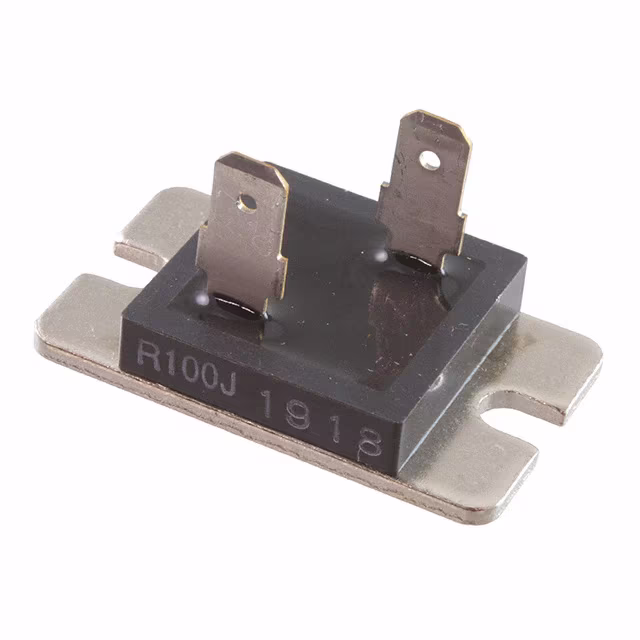

TGHDVR100JE100W MINI SOT227 0.10 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 100 mOhms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|
TGHDV270RJE100W MINI SOT227 270 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 270 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|

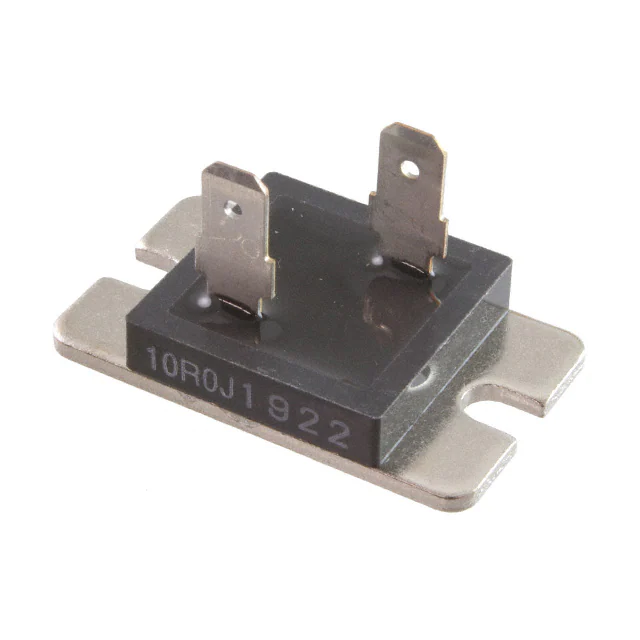

TGHDV10R0JE100W MINI SOT227 10 OHMS 5% |
0 | - |
|
Datasheet | TGHD | SOT-227-2 | Tray | Active | 10 Ohms | ±5% | 100W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.260" L x 0.748" W (32.00mm x 19.00mm) | 0.394" (10.00mm) | Quick Connects | - | - | - |
|
TFSO100A500RJ100W THICK FILM SOT-227 500 OHM |
0 | - |
|
Datasheet | TFSO | SOT-227-2 | Box | Active | 500 Ohms | ±5% | 100W | Thick Film | ±150ppm/°C | -55°C ~ 125°C | High Voltage, Non-Inductive | - | Flanges | 1.488" L x 1.000" W (37.80mm x 25.40mm) | 0.618" (15.70mm) | M4 Threaded | - | - | - |
Chassis Mount Resistors FAQ
How can I narrow the current Chassis Mount Resistors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chassis Mount Resistors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
