Chassis Mount Resistors
Browse available Chassis Mount Resistors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

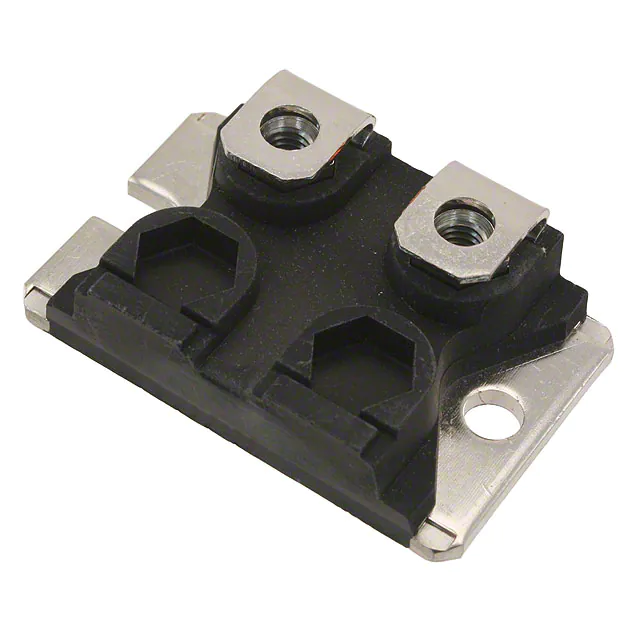

TGHLV100RJERES CHAS MNT 100 OHM 5% 200W |
1,745 | - |
|
Datasheet | TGH | SOT-227-2 | Tray | Active | 100 Ohms | ±5% | 200W | Thick Film | ±250ppm/°C | -55°C ~ 155°C | Non-Inductive, Pulse Withstanding, RF, High Frequency | Epoxy Coated | Flanges | 1.496" L x 0.980" W (38.00mm x 24.90mm) | 0.483" (12.26mm) | M4 Threaded | - | - | - |
|

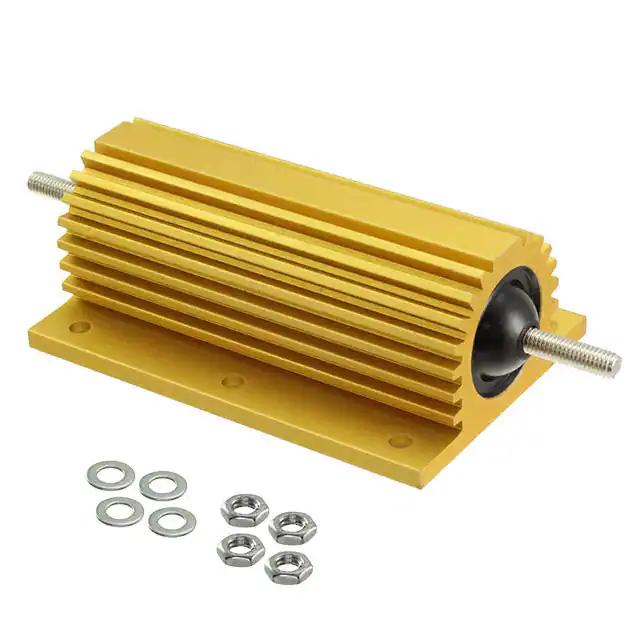

HS200 1R JRES CHAS MNT 1 OHM 5% 200W |
455 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 1 Ohms | ±5% | 200W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 3.531" L x 1.791" W (89.70mm x 45.50mm) | 1.646" (41.80mm) | M6 Threaded | - | - | - |
|

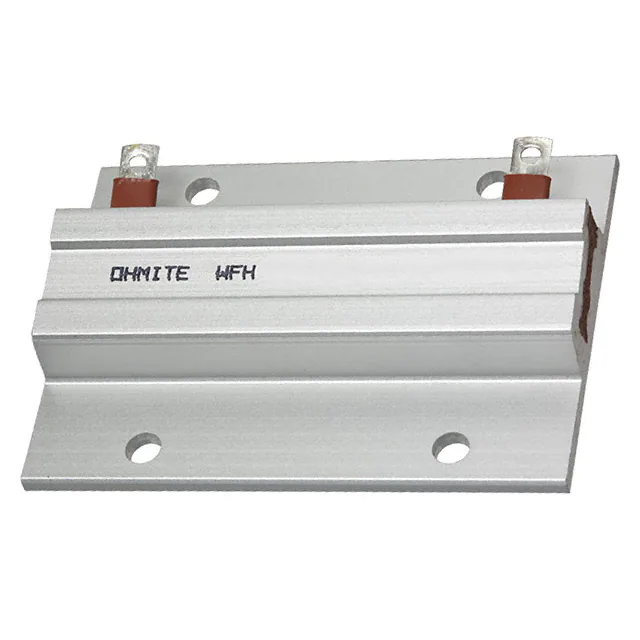

WFH90L50RJERES CHAS MNT 50 OHM 5% 90W |
203 | - |
|
Datasheet | WFH | Radial, Rectangular Case | Bulk | Active | 50 Ohms | ±5% | 90W | Wirewound | - | -40°C ~ 220°C | - | Aluminum | Flanges | 2.756" L x 2.008" W (70.00mm x 51.00mm) | 0.496" (12.60mm) | Solder Lugs | - | - | - |
|

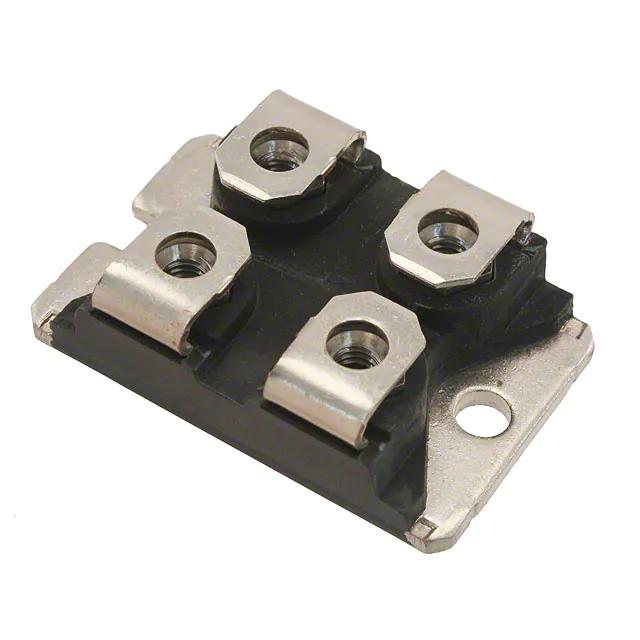

TGHGCR0100FERES CHAS MNT 0.01 OHM 1% 100W |
688 | - |
|
Datasheet | TGHG | SOT-227-4 | Tray | Active | 10 mOhms | ±1% | 100W | Thick Film | ±60ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.500" L x 0.980" W (38.10mm x 24.90mm) | 0.483" (12.26mm) | M4 Threaded | - | - | - |
|
|
HS200 16R FRES CHAS MNT 16 OHM 1% 200W |
134 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 16 Ohms | ±1% | 200W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 3.531" L x 1.791" W (89.70mm x 45.50mm) | 1.646" (41.80mm) | M6 Threaded | - | - | - |
|
RSB-500-50RES CHAS MNT 100 UOHM .25% 25W |
963 | - |
|
Datasheet | RS | Rectangular Case | Bulk | Active | 100 µOhms | ±0.25% | 25W | Metal Element | ±15ppm/°C | -40°C ~ 60°C | Current Sense, Pulse Withstanding | - | Flanges | 1.750" L x 3.260" W (44.45mm x 82.80mm) | 1.650" (41.90mm) | M4 Threaded | - | - | - |
|
|
TGHGCR0005FERES CHAS MNT 500 UOHM 1% 100W |
137 | - |
|
Datasheet | TGHG | SOT-227-4 | Tray | Active | 500 µOhms | ±1% | 100W | Thick Film | ±60ppm/°C | -55°C ~ 155°C | Current Sense, Non-Inductive | Epoxy Coated | Flanges | 1.500" L x 0.980" W (38.10mm x 24.90mm) | 0.483" (12.26mm) | M4 Threaded | - | - | - |
|
|
TGHLV10R0JERES CHAS MNT 10 OHM 5% 200W |
1,404 | - |
|
Datasheet | TGH | SOT-227-2 | Tray | Active | 10 Ohms | ±5% | 200W | Thick Film | ±250ppm/°C | -55°C ~ 155°C | Non-Inductive, Pulse Withstanding, RF, High Frequency | Epoxy Coated | Flanges | 1.496" L x 0.980" W (38.00mm x 24.90mm) | 0.483" (12.26mm) | M4 Threaded | - | - | - |
|

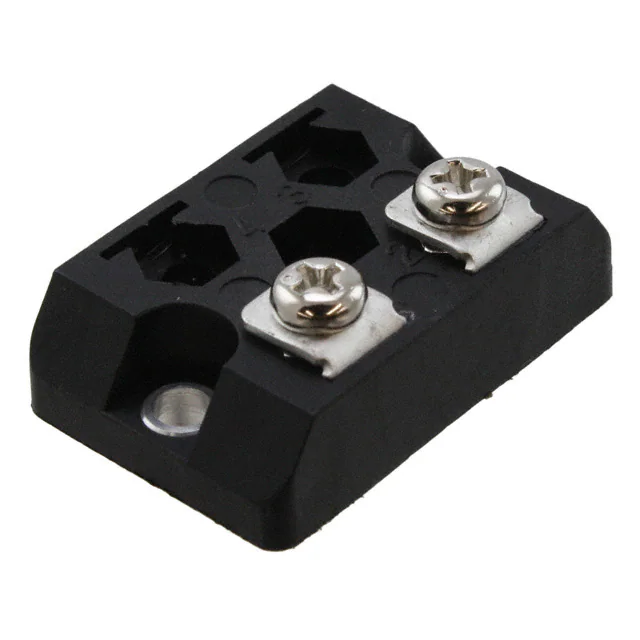

PF2272-10RJ1RES CHAS MNT 10 OHM 5% 200W |
3,320 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 10 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-5RJ1RES CHAS MNT 5 OHM 5% 200W |
1,724 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 5 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-1RJ1RES CHAS MNT 1 OHM 5% 200W |
751 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 1 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-2RJ1RES CHAS MNT 2 OHM 5% 200W |
416 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 2 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-0R1J1RES CHAS MNT 0.1 OHM 5% 200W |
325 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 100 mOhms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-0R2J1RES CHAS MNT 0.2 OHM 5% 200W |
255 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 200 mOhms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-100RJ1RES CHAS MNT 100 OHM 5% 200W |
243 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 100 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-0R5J1RES CHAS MNT 0.5 OHM 5% 200W |
234 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 500 mOhms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
|
PF2272-50RJ1RES CHAS MNT 50 OHM 5% 200W |
193 | - |
|
Datasheet | PF2270 | SOT-227-4 | Tube | Active | 50 Ohms | ±5% | 200W | Thick Film | ±100ppm/°C | -55°C ~ 155°C | Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety | Aluminum Oxide | Flanges | 1.496" L x 0.984" W (38.00mm x 25.00mm) | 0.484" (12.30mm) | M4 Threaded | - | - | - |
|
C300KR50ERES CHAS MNT 0.5 OHM 10% 300W |
316 | - |
|
Datasheet | Corrib®280 | Radial, Tubular | Bulk | Active | 500 mOhms | ±10% | 300W | Wirewound | ±400ppm/°C | -55°C ~ 400°C | - | Vitreous Enamel Coated | Brackets (not included) | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) | - | Solder Lugs | - | - | - |
|
HSC2001R0JRES CHAS MNT 1 OHM 5% 200W |
104 | - |
|
Datasheet | HS, CGS | Axial, Box | Bulk | Active | 1 Ohms | ±5% | 200W | Wirewound | ±50ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 3.543" L x 2.874" W (90.00mm x 73.00mm) | 1.654" (42.00mm) | Terminal Screw Type | - | - | - |
|
|
TGHLV1K00JERES CHAS MNT 1K OHM 5% 200W |
179 | - |
|
Datasheet | TGH | SOT-227-2 | Tray | Active | 1 kOhms | ±5% | 200W | Thick Film | ±250ppm/°C | -55°C ~ 155°C | Non-Inductive, Pulse Withstanding, RF, High Frequency | Epoxy Coated | Flanges | 1.496" L x 0.980" W (38.00mm x 24.90mm) | 0.483" (12.26mm) | M4 Threaded | - | - | - |
