Chassis Mount Resistors
Browse available Chassis Mount Resistors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Temperature Coefficient | Operating Temperature | Features | Coating, Housing Type | Mounting Feature | Size / Dimension | Height - Seated (Max) | Lead Style | Failure Rate | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RHA0258R000FE02WIREWOUND CHASSIS MOUNT RESISTOR |
135 | - |
|
Datasheet | RHA | Axial, Box | Bulk | Active | 8 Ohms | ±1% | 25W | Wirewound | ±50ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | - | Automotive | AEC-Q200 |
|
HS25 3K3 JRES CHAS MNT 3.3K OHM 5% 25W |
201 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 3.3 kOhms | ±5% | 25W | Wirewound | ±25ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS25 5R JRES CHAS MNT 5 OHM 5% 25W |
196 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 5 Ohms | ±5% | 25W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
|
HS25 16R JRES CHAS MNT 16 OHM 5% 25W |
188 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 16 Ohms | ±5% | 25W | Wirewound | ±100ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
810F15RERES CHAS MNT 15 OHM 1% 10W |
199 | - |
|
Datasheet | Metal-Mite®89 | Axial, Box | Tray | Active | 15 Ohms | ±1% | 10W | Wirewound | ±20ppm/°C | -55°C ~ 275°C | - | Aluminum | Flanges | 0.750" L x 0.812" W (19.05mm x 20.63mm) | 0.400" (10.16mm) | Solder Lugs | - | - | - |
|
|
HS25 4K7 JRES CHAS MNT 4.7K OHM 5% 25W |
198 | - |
|
Datasheet | HS | Axial, Box | Bulk | Active | 4.7 kOhms | ±5% | 25W | Wirewound | ±25ppm/°C | - | - | Aluminum | Flanges | 1.075" L x 0.559" W (27.30mm x 14.20mm) | 0.583" (14.80mm) | Solder Lugs | - | - | - |
|
UWP60-1RJ8CHAS MNT 1 OHM 60W BRKT |
158 | - |
|
Datasheet | UWP | Radial, Rectangular Case | Bulk | Active | 1 Ohms | ±5% | 60W | Wirewound | ±260ppm/°C | -55°C ~ 275°C | Flame Proof, Safety | Ceramic | Brackets | 3.543" L x 0.709" W (90.00mm x 18.00mm) | 0.787" (20.00mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
RHA050470R0FE02WIREWOUND CHASSIS MOUNT RESISTOR |
202 | - |
|
Datasheet | RHA | Axial, Box | Bulk | Active | 470 Ohms | ±1% | 50W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | - | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | - | Automotive | AEC-Q200 |
|
HSA50470RFRES CHAS MNT 470 OHM 1% 50W |
185 | - |
|
Datasheet | HS, CGS | Axial, Box | Bulk | Active | 470 Ohms | ±1% | 50W | Wirewound | ±30ppm/°C | -55°C ~ 200°C | - | Aluminum | Flanges | 2.008" L x 1.181" W (51.00mm x 30.00mm) | 0.669" (17.00mm) | Solder Lugs | - | - | - |
|
|
810F500ERES CHAS MNT 500 OHM 1% 10W |
172 | - |
|
Datasheet | Metal-Mite®89 | Axial, Box | Tray | Active | 500 Ohms | ±1% | 10W | Wirewound | ±20ppm/°C | -55°C ~ 275°C | - | Aluminum | Flanges | 0.750" L x 0.812" W (19.05mm x 20.63mm) | 0.400" (10.16mm) | Solder Lugs | - | - | - |
|
EWT25JB3K00RES CHAS MNT 3K OHM 5% 25W |
1,688 | - |
|
Datasheet | EWT | Radial, Tubular | Bulk | Active | 3 kOhms | ±5% | 25W | Wirewound | - | -55°C ~ 350°C | Flame Proof, Safety | Vitreous Enamel Coated | Brackets (not included) | 0.563" Dia x 2.008" L (14.30mm x 51.00mm) | - | Tab | - | - | - |
|

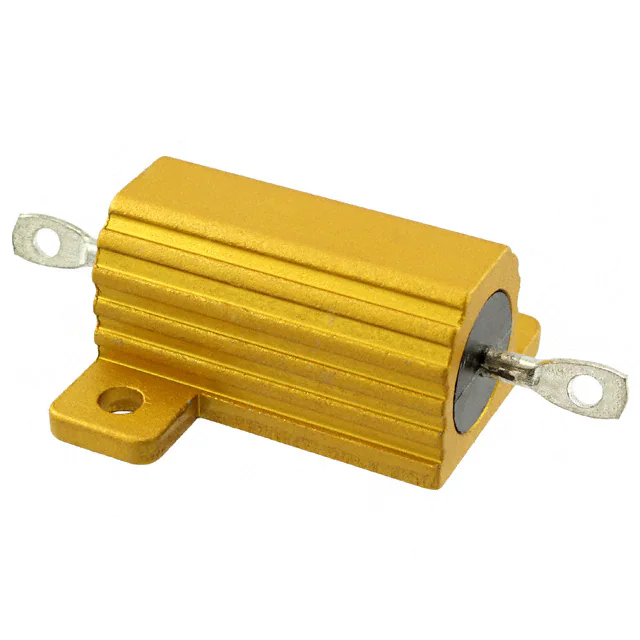

TMC0252K000FE02RES CHAS MNT 2K OHM 1% 25W |
513 | - |
|
Datasheet | TMC | Axial, Box | Bulk | Active | 2 kOhms | ±1% | 25W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 1.062" L x 1.080" W (26.97mm x 27.43mm) | 0.561" (14.25mm) | Solder Lugs | - | - | - |
|
FSOT4009E50R00KERES CHAS MNT 50 OHM 10% 40W |
319 | - |
|
Datasheet | FSOT | Radial, Flat Oval | Bulk | Active | 50 Ohms | ±10% | 40W | Wirewound | ±260ppm/°C | -55°C ~ 350°C | - | Silicone Coated | Flange Braces, Right Angle | 2.000" L x 1.187" W (50.80mm x 30.16mm) | 0.594" (15.08mm) | Solder Lugs | - | - | - |
|
RH005R5000FE02RES CHAS MNT 0.5 OHM 1% 7.5W |
125 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 500 mOhms | ±1% | 7.5W | Wirewound | ±100ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 0.600" L x 0.646" W (15.24mm x 16.41mm) | 0.335" (8.51mm) | Solder Lugs | - | - | - |
|
UWP100-20RJ8CHAS MNT 20 OHM 100W BRKT |
116 | - |
|
Datasheet | UWP | Radial, Rectangular Case | Bulk | Active | 20 Ohms | ±5% | 100W | Wirewound | ±260ppm/°C | -55°C ~ 275°C | Flame Proof, Safety | Ceramic | Brackets | 4.449" L x 0.894" W (113.00mm x 22.70mm) | 0.894" (22.70mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
UWP100-10RJ8CHAS MNT 10 OHM 100W BRKT |
107 | - |
|
Datasheet | UWP | Radial, Rectangular Case | Bulk | Active | 10 Ohms | ±5% | 100W | Wirewound | ±260ppm/°C | -55°C ~ 275°C | Flame Proof, Safety | Ceramic | Brackets | 4.449" L x 0.894" W (113.00mm x 22.70mm) | 0.894" (22.70mm) | Quick Connects, 0.250" (6.35mm) | - | - | - |
|
BRS100-50RJ8RES CHAS MNT 50 OHM 5% 100W |
677 | - |
|
Datasheet | BRS | Rectangular Case | - | Active | 50 Ohms | ±5% | 100W | Metal Clad | 260ppm/°C | -55°C ~ 200°C | Moisture Resistant | - | Screw Holes | 3.543" L x 3.150" W (90.00mm x 80.00mm) | 0.472" (12.00mm) | Wire Leads | - | - | - |
|
EWT225JB2R00RES CHAS MNT 2 OHM 5% 225W |
283 | - |
|
Datasheet | EWT | Radial, Tubular | Bulk | Active | 2 Ohms | ±5% | 225W | Wirewound | - | -55°C ~ 350°C | Flame Proof, Safety | Vitreous Enamel Coated | Brackets (not included) | 1.126" Dia x 10.512" L (28.60mm x 267.00mm) | - | Tab | - | - | - |
|
|
RH050400R0FE02RES CHAS MNT 400 OHM 1% 50W |
117 | - |
|
Datasheet | RH | Axial, Box | Bulk | Active | 400 Ohms | ±1% | 50W | Wirewound | ±20ppm/°C | -55°C ~ 250°C | Moisture Resistant | Aluminum | Flanges | 1.968" L x 1.140" W (49.99mm x 28.96mm) | 0.625" (15.87mm) | Solder Lugs | - | - | - |
|
TE400B1K5JRES CHAS MNT 1.5K OHM 5% 400W |
30 | - |
|
Datasheet | TE, CGS | Radial, Tubular | Bulk | Active | 1.5 kOhms | ±5% | 400W | Wirewound | ±440ppm/°C | -55°C ~ 155°C | Flame Proof, Safety | Silicone Coated | Brackets | 1.575" Dia x 11.102" L (40.00mm x 282.00mm) | - | Solder Lugs | - | - | - |
Chassis Mount Resistors FAQ
What Chassis Mount Resistors components can I source from EGOO?
You can browse available Chassis Mount Resistors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Chassis Mount Resistors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
