Chip Resistor - Surface Mount
Compare the current Chip Resistor - Surface Mount Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TKH45P10R0FE-TRRES 10 OHM 1% 45W TO252 |
1,533 | - |
|
Datasheet | TKH | PFC10 (TO-126 SMT) | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 45W | Thick Film | Pulse Withstanding | ±100ppm/°C | -55°C ~ 175°C | - | TO-252 | 0.472" L x 0.323" W (12.00mm x 8.20mm) | 0.039" (1.00mm) | 2 | - |
|
HVC2512T1004JETRES SMD 1M OHM 5% 1W 2512 |
6,033 | - |
|
Datasheet | HVC | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 1 MOhms | ±5% | 1W | Thick Film | High Voltage | ±100ppm/°C | -55°C ~ 155°C | - | 2512 | 0.248" L x 0.138" W (6.30mm x 3.50mm) | 0.022" (0.55mm) | 2 | - |
|
FC4L110R001JERRES 0.001 OHM 5W 4320 WIDE |
537 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 1 mOhms | ±5% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
|
FC4L110R010FERRES 0.01 OHM 5W 4320 WIDE |
548 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
|
FC4L110R002GERRES 0.002 OHM 5W 4320 WIDE |
4,567 | - |
|
Datasheet | FC4L | Wide 4320 (11050 Metric), 2043 | Tape & Reel (TR) | Active | 2 mOhms | ±2% | 5W | Metal Foil | Current Sense, Moisture Resistant | ±50ppm/°C | -55°C ~ 155°C | - | 11050 | 0.197" L x 0.433" W (5.00mm x 11.00mm) | 0.028" (0.70mm) | 4 | - |
|
MC102825003JERES SMD 500K OHM 5% 1.5W 5025 |
372 | - |
|
Datasheet | Macrochip | Nonstandard | Bulk | Active | 500 kOhms | ±5% | 1.5W | Thick Film | High Voltage, Non-Inductive | ±50ppm/°C | -55°C ~ 180°C | - | - | 0.500" L x 0.250" W (12.70mm x 6.35mm) | 0.142" (3.60mm) | 2 | - |
|

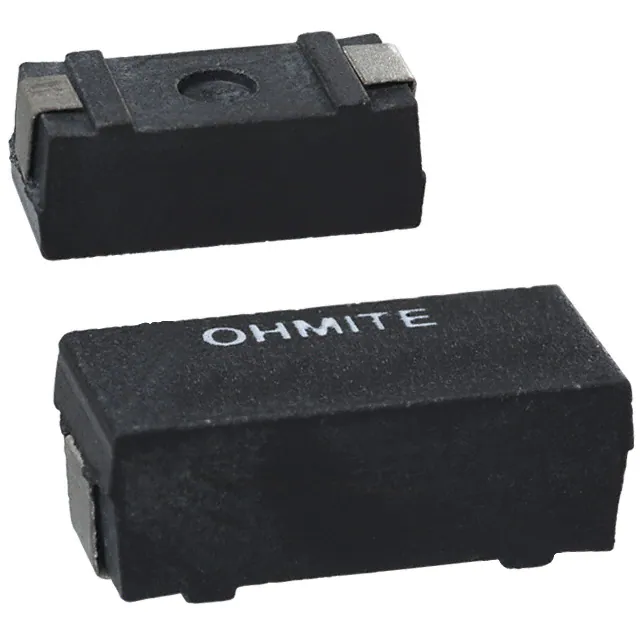

RW3R0DB1R00JETRES SMD 1 OHM 5% 3W J LEAD |
395 | - |
|
Datasheet | RW | 6327 J-Lead | Tape & Reel (TR) | Active | 1 Ohms | ±5% | 3W | Wirewound | Current Sense | ±50ppm/°C | -55°C ~ 150°C | - | SMD J-Lead, Recessed | 0.625" L x 0.273" W (15.88mm x 6.93mm) | 0.231" (5.87mm) | 2 | - |
|
HVC4020V5005JETRES SMD 50M OHM 5% 1.5W 4020 |
3,541 | - |
|
Datasheet | HVC | Nonstandard | Tape & Reel (TR) | Active | 50 MOhms | ±5% | 1.5W | Thick Film | High Voltage | ±50ppm/°C | -55°C ~ 155°C | - | 4020 | 0.402" L x 0.201" W (10.20mm x 5.10mm) | 0.031" (0.80mm) | 2 | - |
|
HVC1206Z2506JETRES SMD 250M OHM 5% 1/4W 1206 |
856 | - |
|
Datasheet | HVC | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 250 MOhms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage | ±250ppm/°C | -55°C ~ 155°C | - | 1206 | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.022" (0.55mm) | 2 | - |
|
TKH45P200RFE-TRRES 200 OHM 1% 45W TO252 |
1,645 | - |
|
Datasheet | TKH | PFC10 (TO-126 SMT) | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 45W | Thick Film | Pulse Withstanding | ±100ppm/°C | -55°C ~ 175°C | - | TO-252 | 0.472" L x 0.323" W (12.00mm x 8.20mm) | 0.039" (1.00mm) | 2 | - |
Chip Resistor - Surface Mount FAQ
How can I narrow the current Chip Resistor - Surface Mount selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chip Resistor - Surface Mount parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
