Chip Resistor - Surface Mount
Compare the current Chip Resistor - Surface Mount Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CH0603-50RJNTARES 50 OHM 5% 1/8W 0603 |
696 | - |
|
Datasheet | CH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | 50 Ohms | ±5% | 0.125W, 1/8W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0603 | 0.060" L x 0.030" W (1.52mm x 0.76mm) | 0.025" (0.63mm) | 2 | - |
|
CH0402-100RFNPTRES CH 0402 THIN FILM |
808 | - |
|
Datasheet | CH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±1% | 0.05W, 1/20W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.025" (0.63mm) | 2 | - |
|

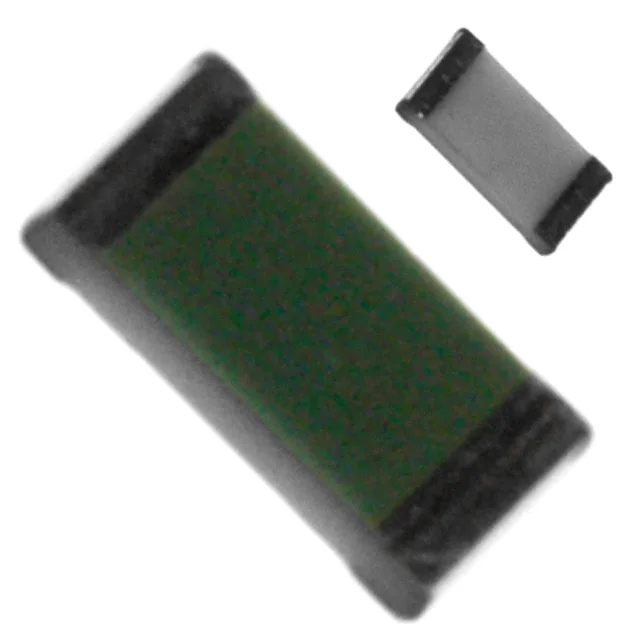

PLT1206Z5002AST5RES SMD 50K OHM 0.05% 0.4W 1206 |
1,146 | - |
|
Datasheet | PLT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 50 kOhms | ±0.05% | 0.4W, 2/5W | Thin Film | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety | ±5ppm/°C | -55°C ~ 125°C | - | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.033" (0.84mm) | 2 | - |
.jpg "PHP02512E4990BST5")
|
PHP02512E4990BST5RES SMD 499 OHM 0.1% 2.5W 2512 |
5,229 | - |
|
Datasheet | PHP | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 499 Ohms | ±0.1% | 2.5W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 2512 | 0.259" L x 0.124" W (6.58mm x 3.15mm) | 0.033" (0.84mm) | 2 | - |
|
|
PHP02512E49R9BST5RES SMD 49.9 OHM 0.1% 2.5W 2512 |
4,450 | - |
|
Datasheet | PHP | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 49.9 Ohms | ±0.1% | 2.5W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 2512 | 0.259" L x 0.124" W (6.58mm x 3.15mm) | 0.033" (0.84mm) | 2 | - |
|
|
PHP02512E1000BST5RES SMD 100 OHM 0.1% 2.5W 2512 |
295 | - |
|
Datasheet | PHP | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 100 Ohms | ±0.1% | 2.5W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 2512 | 0.259" L x 0.124" W (6.58mm x 3.15mm) | 0.033" (0.84mm) | 2 | - |
|
|
PHP02512E20R0BST5RES SMD 20 OHM 0.1% 2.5W 2512 |
2,253 | - |
|
Datasheet | PHP | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 20 Ohms | ±0.1% | 2.5W | Thin Film | Flame Proof, Moisture Resistant, Safety | ±25ppm/°C | -55°C ~ 155°C | - | 2512 | 0.259" L x 0.124" W (6.58mm x 3.15mm) | 0.033" (0.84mm) | 2 | - |
|
CH02016-10RJFTARES 10 OHM 5% 1/32W 02016 |
511 | - |
|
Datasheet | CH | 02016 (0504 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 0.03W, 1/32W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 02016 | 0.019" L x 0.015" W (0.48mm x 0.39mm) | 0.022" (0.55mm) | 2 | - |
|
|
CH0402-250RGFTACH 0402 250U 2% F TR E2 |
370 | - |
|
Datasheet | CH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 250 Ohms | ±2% | 0.05W, 1/20W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.025" (0.63mm) | 2 | - |
|
|
CH0402-250RGFPTRES CH 0402 THIN FILM |
1,096 | - |
|
Datasheet | CH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 250 Ohms | ±2% | 0.05W, 1/20W | Thin Film | RF, High Frequency | ±100ppm/°C | -55°C ~ 155°C | - | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.025" (0.63mm) | 2 | - |
Chip Resistor - Surface Mount FAQ
How can I narrow the current Chip Resistor - Surface Mount selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chip Resistor - Surface Mount parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
