Chip Resistor - Surface Mount
Compare the current Chip Resistor - Surface Mount Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSS2H-2512R-L300FRES 300UOHM 1% 6W 2512 |
5,846 | - |
|
Datasheet | CSS2H-2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 0.3 mOhms | ±1% | 6W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.074" (1.87mm) | 2 | - |
|
CSS2H-3920R-1L00FERES 0.001 OHM 1% 8W 3920 |
4,828 | - |
|
Datasheet | CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 8W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.045" (1.15mm) | 2 | - |
|

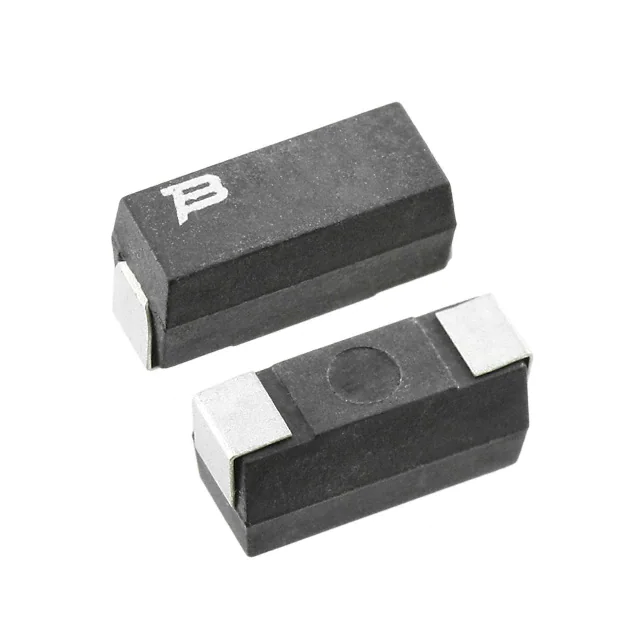

PWR4318W10R0JERES SMD 10 OHM 5% 2W 4318 |
4,178 | - |
|
Datasheet | PWR4318 | 4318 J-Lead | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 4318 | 0.433" L x 0.177" W (11.00mm x 4.50mm) | 0.203" (5.16mm) | 2 | - |
|
|
CSS2H-3920R-L200FERES SMD 200 UOHM 1% 12W 3920 |
1,449 | - |
|
Datasheet | CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.2 mOhms | ±1% | 12W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.107" (2.73mm) | 2 | - |
|
|
CSS2H-3920K-5L00FCURRENTSENSESHUNT 3920 R005 1% 3 |
11,821 | - |
|
Datasheet | CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 2W | Metal Element | Automotive AEC-Q200, Current Sense | ±75ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.039" (1.00mm) | 2 | - |
|
PWR2010W5R00JERES SMD 5 OHM 5% 1/2W 2010 |
54,564 | - |
|
Datasheet | PWR2010 | 2010 J-Lead | Tape & Reel (TR) | Active | 5 Ohms | ±5% | 0.5W, 1/2W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 2010 | 0.200" L x 0.100" W (5.08mm x 2.54mm) | 0.148" (3.76mm) | 2 | - |
|

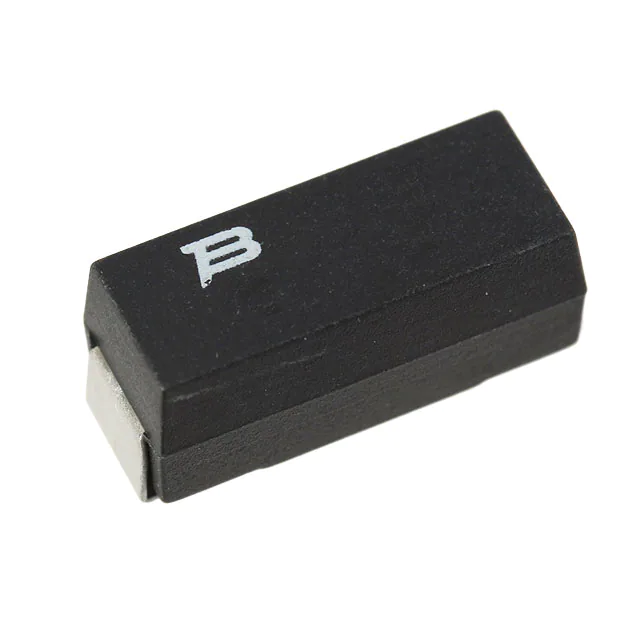

PWR5322W24R0JERES SMD 24 OHM 5% 3W 5322 |
6,597 | - |
|
Datasheet | PWR5322 | 5322 J-Lead | Tape & Reel (TR) | Active | 24 Ohms | ±5% | 3W | Wirewound | Current Sense, Pulse Withstanding | ±20ppm/°C | -55°C ~ 155°C | - | 5322 | 0.532" L x 0.217" W (13.50mm x 5.50mm) | 0.243" (6.16mm) | 2 | - |
|
|
PWR5322W5R00JERES SMD 5 OHM 5% 3W 5322 |
570 | - |
|
Datasheet | PWR5322 | 5322 J-Lead | Tape & Reel (TR) | Active | 5 Ohms | ±5% | 3W | Wirewound | Current Sense, Pulse Withstanding | ±50ppm/°C | -55°C ~ 155°C | - | 5322 | 0.532" L x 0.217" W (13.50mm x 5.50mm) | 0.243" (6.16mm) | 2 | - |
|
CSS2H-2512R-L500FRES SMD 500 UOHM 1% 6W 2512 |
12,036 | - |
|
Datasheet | CSS2H-2512 | 2512 (6432 Metric) | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 6W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 2512 | 0.250" L x 0.120" W (6.35mm x 3.05mm) | 0.056" (1.42mm) | 2 | - |
|
CSS2H-5930R-L200FCURRENT SENSE SHUNT |
1,992 | - |
|
Datasheet | CSS2H-5930 | Nonstandard | Tape & Reel (TR) | Active | 0.2 mOhms | ±1% | 10W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.591" L x 0.305" W (15.00mm x 7.75mm) | 0.080" (2.04mm) | 2 | - |
Chip Resistor - Surface Mount FAQ
How can I narrow the current Chip Resistor - Surface Mount selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chip Resistor - Surface Mount parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
