Chip Resistor - Surface Mount
Compare the current Chip Resistor - Surface Mount Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSS2H-3920K-2L00FRES 0.002 OHM 1% 6W 3920 |
383 | - |
|
Datasheet | CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 6W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.055" (1.39mm) | 2 | - |
|
|
CSS2H-3920R-L500FRES SMD 500 UOHM 1% 9W 3920 |
9,052 | - |
|
Datasheet | CSS2H-3920 | 3920 (1052 Metric) | Tape & Reel (TR) | Active | 0.5 mOhms | ±1% | 9W | Metal Element | Automotive AEC-Q200, Current Sense | ±50ppm/°C | -55°C ~ 170°C | AEC-Q200 | 3920 | 0.394" L x 0.205" W (10.00mm x 5.20mm) | 0.059" (1.50mm) | 2 | - |
|
PWR163S-25-50R0FRES SMD 50 OHM 1% 25W DPAK |
7,285 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tube | Active | 50 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|

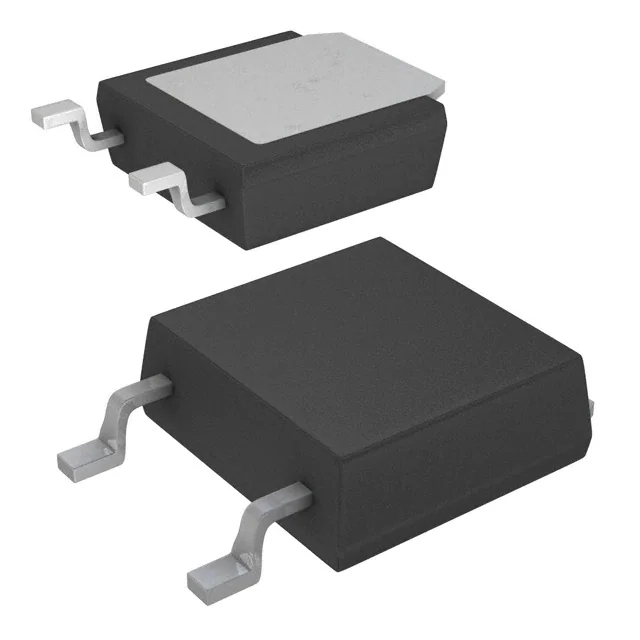

PWR163S-25-1002FRES SMD 10K OHM 1% 25W DPAK |
6,535 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tube | Active | 10 kOhms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
PWR263S-35-4R00FRES SMD 4 OHM 1% 35W D2PAK |
4,135 | - |
|
Datasheet | PWR263S-35 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 4 Ohms | ±1% | 35W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | TO-263 | 0.398" L x 0.409" W (10.10mm x 10.40mm) | 0.177" (4.50mm) | 2 | - |
|
|
PWR163S-25-30R0JERES SMD 30 OHM 5% 25W DPAK |
3,347 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 30 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-5R00JERES SMD 5 OHM 5% 25W DPAK |
1,599 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 5 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-10R0JERES SMD 10 OHM 5% 25W DPAK |
708 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 10 Ohms | ±5% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-2R00FERES SMD 2 OHM 1% 25W DPAK |
22,113 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 2 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
|
|
PWR163S-25-5R00FERES SMD 5 OHM 1% 25W DPAK |
6,771 | - |
|
Datasheet | PWR163 | Non-Standard DPAK | Tape & Reel (TR) | Active | 5 Ohms | ±1% | 25W | Thick Film | Automotive AEC-Q200, Current Sense, Pulse Withstanding | ±100ppm/°C | -55°C ~ 155°C | AEC-Q200 | DPAK Style | 0.320" L x 0.324" W (8.13mm x 8.22mm) | 0.125" (3.17mm) | 2 | - |
Chip Resistor - Surface Mount FAQ
How can I narrow the current Chip Resistor - Surface Mount selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chip Resistor - Surface Mount parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
