Chip Resistor - Surface Mount
Compare the current Chip Resistor - Surface Mount Resistors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Ratings | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL0816T4F-F-R035-FNHRES 0.035 OHM 1% 1/3W WIDE 0603 |
23,360 | - |
|
Datasheet | RL0816T4F-F | Wide 0603 (1608 Metric), 0306 | Tape & Reel (TR) | Active | 35 mOhms | ±1% | 0.333W, 1/3W | Metal Film | Current Sense | ±150ppm/°C | -55°C ~ 125°C | - | 0816 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) | 4 | - |
|

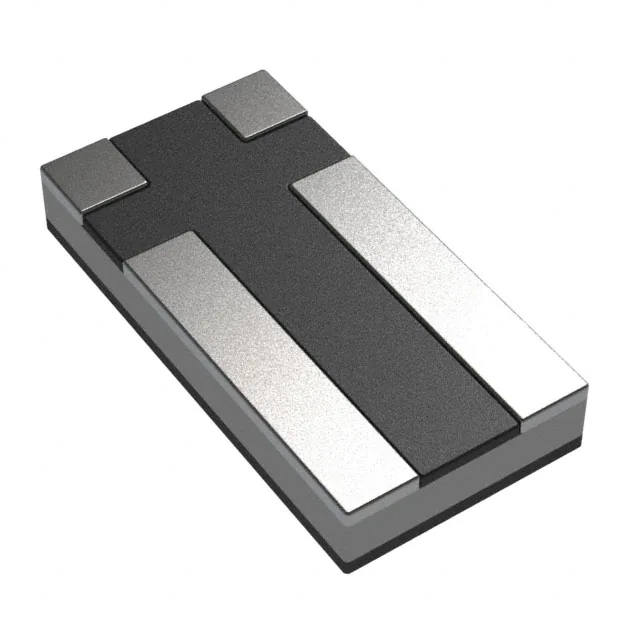

RL1632T4F-R002-FNHRES 0.002 OHM 1% 1W WIDE 1206 |
27,606 | - |
|
Datasheet | RL1632T4F | Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR) | Active | 2 mOhms | ±1% | 1W | Metal Film | Current Sense | ±100ppm/°C | -55°C ~ 150°C | - | 0612 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.031" (0.80mm) | 4 | - |
|
RL1632T4F-R001-FNHRES 0.001 OHM 1% 1W WIDE 1206 |
11,976 | - |
|
Datasheet | RL1632T4F | Wide 1206 (3216 Metric), 0612 | Tape & Reel (TR) | Active | 1 mOhms | ±1% | 1W | Metal Film | Current Sense | ±150ppm/°C | -55°C ~ 150°C | - | 0612 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.035" (0.90mm) | 4 | - |
.jpg "PFR02S-102-FNH")
|
PFR02S-102-FNHRES SMD 1K OHM 1% 1/32W 01005 |
1,309,647 | - |
|
Datasheet | PFR02S | 01005 (0402 Metric) | Tape & Reel (TR) | Active | 1 kOhms | ±1% | 0.03W, 1/32W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.006" (0.15mm) | 2 | - |
|
|
PFR05S-221-FNHRES SMD 220 OHM 1% 1/16W 0402 |
1,242,320 | - |
|
Datasheet | PFR05 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 220 Ohms | ±1% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
|
|
PFR05S-153-FNHRES SMD 15 KOHM 1% 1/16W 0402 |
967,853 | - |
|
Datasheet | PFR05 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 15 kOhms | ±1% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
|
|
PFR05S-103-FNHRES SMD 10 KOHM 1% 1/16W 0402 |
955,646 | - |
|
Datasheet | PFR05 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 kOhms | ±1% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
|
|
PFR05S-201-FNHRES SMD 200 OHM 1% 1/16W 0402 |
619,969 | - |
|
Datasheet | PFR05 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
|
|
PFR05S-100-FNHRES SMD 10 OHM 1% 1/16W 0402 |
469,508 | - |
|
Datasheet | PFR05 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
|
|
PFR05S-154-FNHRES SMD 150 KOHM 1% 1/16W 0402 |
380,437 | - |
|
Datasheet | PFR05 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 150 kOhms | ±1% | 0.063W, 1/16W | Thick Film | - | ±200ppm/°C | -55°C ~ 125°C | - | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) | 2 | - |
Chip Resistor - Surface Mount FAQ
How can I narrow the current Chip Resistor - Surface Mount selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Chip Resistor - Surface Mount parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
