Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Browse available Circuit Board Indicators, Arrays, Light Bars, Bar Graphs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Color | Wavelength - Peak | Configuration | Current | Millicandela Rating | Viewing Angle | Lens Type | Lens Style | Lens Size | Voltage Rating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

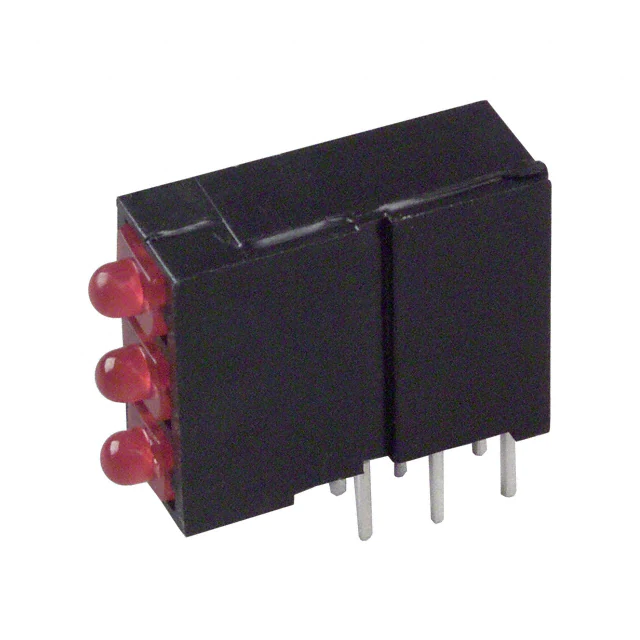

5700100111FLED CBI 2MM 3X1 RED RA |
291 | - |
|
Datasheet | 570 | Bulk | Active | Red (x 3) | 635nm | 3 High | 20mA | 12.6mcd | 38° | Diffused, Tinted | Round with Domed Top | 2.00mm Dia | 2V | Through Hole, Right Angle |
|

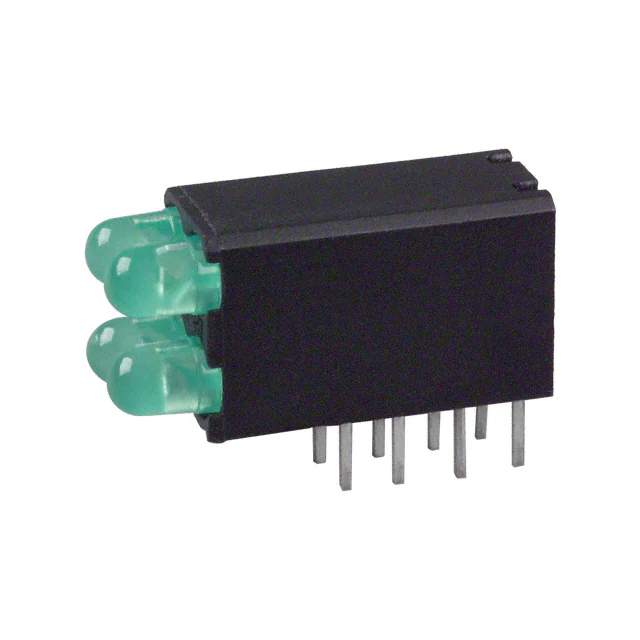

5690102222FLED CBI 3MM 2X2 GREEN RA |
2,552 | - |
|
Datasheet | 569 | Bulk | Active | Green (x 4) | 565nm | 2 High x 2 Wide | 20mA | 12.6mcd | 60° | Diffused, Tinted | - | - | 2.1V | Through Hole, Right Angle |
|
XGMDKX10DLED CBI 5.08X1.78MM 10SEG R VERT |
256 | - |
|
Datasheet | - | Tube | Active | Red | 645nm | Bar - 10 Wide, DIP | 10mA | 99.99mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 1.85V | Through Hole |
|
HLMP-2855LED LT BAR 8.89X8.89MM SGL GREEN |
2,279 | - |
|
Datasheet | HLMP-2855 | Tube | Active | Green | 565nm | Bar - Single, DIP | 30mA | 50mcd | - | - | Square with Flat Top | 8.89mm | 2.2V | Through Hole |
|
DC10YWALED CBI 5.08X1.78MM 10SEG Y VERT |
1,803 | - |
|
Datasheet | - | Tube | Active | Yellow (x 10) | 590nm | Bar - 10 Wide, DIP | 30mA | 9mcd | - | Diffused, White | Rectangle with Flat Top | 5.08mm x 1.78mm | 2.1V | Through Hole |
|
DC10EWALED CBI 10-SEG RED THROUGH HOLE |
559 | - |
|
Datasheet | - | Tube | Active | Red (x 10) | 627nm | Bar - 10 Wide, DIP | 30mA | 9mcd | - | Diffused, White | - | - | 2V | Through Hole |
|
5640100129FLED CBI 3MM 3X1 BLU/GRN/RED RA |
151 | - |
|
Datasheet | 564 | Bulk | Active | Blue (x 1), Green (x 1), Red (x 1) | 468nm, 565nm, 635nm | 3 High | 30mA Blue, 30mA Green, 30mA Red | 57mcd Blue, 12.6mcd Green, 10mcd Red | 100° Blue, 60° Green, 60° Red | Diffused | Round with Domed Top | 3.00mm Dia | 3.2V Blue, 2.1V Green, 2V Red | Through Hole, Right Angle |
|

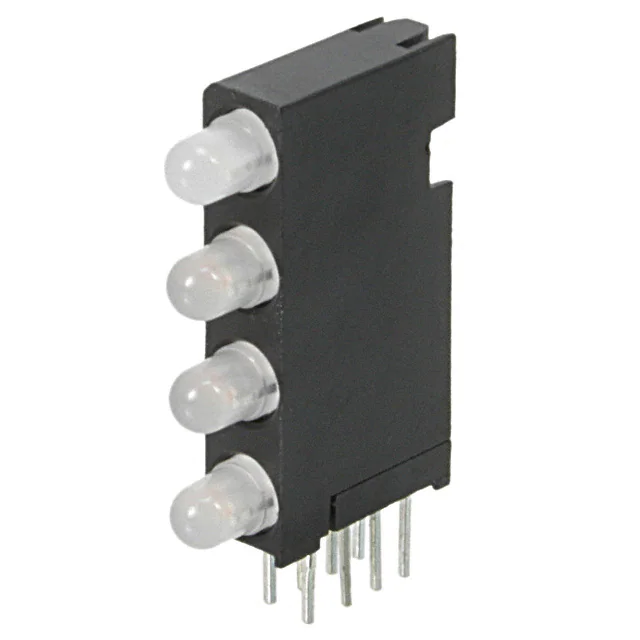

5680701444FLED CBI 3MM QUAD GRN/RED/YLW RA |
310 | - |
|
Datasheet | 568 | Bulk | Active | Green, Red (x 1), Green, Yellow (x 3) | 565nm, 635nm, 585nm | 4 High | 30mA Green, 30mA Red, 20mA Yellow | 10mcd Green, 4.7mcd Red, 6.3mcd Green, 4.3mcd Yellow | 60° Green-Red, 80° Green-Yellow | Diffused | Round with Domed Top | 3mm, T-1 | 2.1V Green, 2V Red, 2.1V Yellow | Through Hole, Right Angle |
|

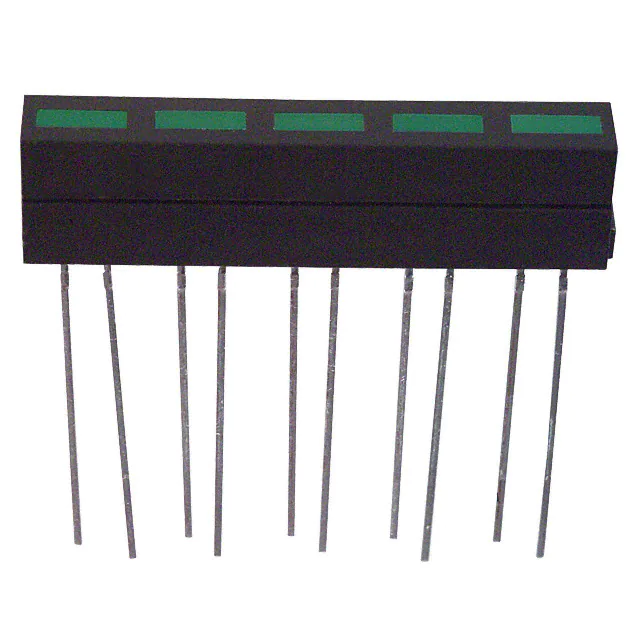

SSA-LXB525GDLED CBI 5.3X1.8MM 5-SEG GRN VERT |
1,247 | - |
|
Datasheet | - | Bulk | Active | Green (x 5) | 565nm | Bar - 5 Wide, SIP | 25mA | 10mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | 5.30mm x 1.80mm | 2.2V | Through Hole |
|
HLMP-2820LED LT BAR 8.89X3.81MM QUAD GRN |
1,648 | - |
|
Datasheet | HLMP-2820 | Tube | Active | Green (x 4) | 565nm | Bar - 4 Wide, DIP | 30mA | 25mcd | - | - | Rectangle with Flat Top | 8.89mm x 3.81mm | 2.2V | Through Hole |
|
5640200132FLED CBI 3MM 3X1 GREEN/RED/YLW RA |
684 | - |
|
Datasheet | 564 | Bulk | Active | Green (x 1), Red (x 1), Yellow (x 1) | 565nm, 635nm, 585nm | 3 High | - | 1.6mcd Green, 1.6mcd Red, 1.6mcd Yellow | 60° | - | - | - | 1.9V Green, 1.7V Red, 1.8V Yellow | Through Hole, Right Angle |
|
|
5640200333FLED CBI 3MM 3X1 YLW RA |
362 | - |
|
Datasheet | 564 | Bulk | Active | Yellow (x 3) | 585nm | 3 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.8V | Through Hole, Right Angle |
|

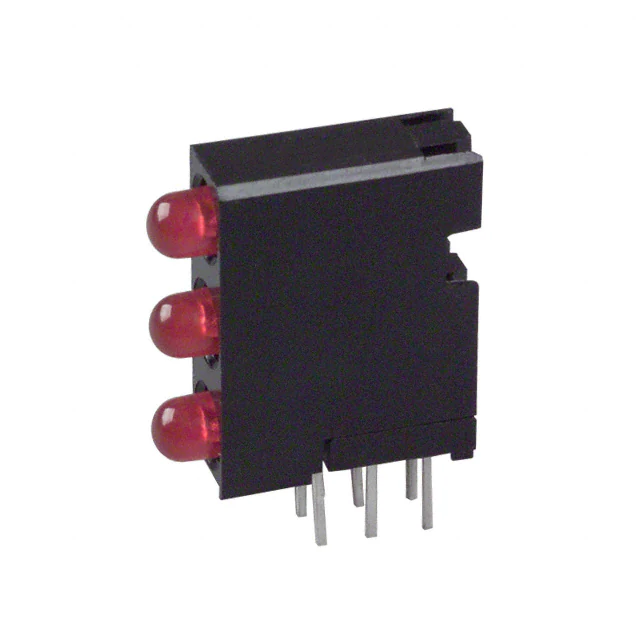

5640200111FLED CBI 3MM 3X1 RED RA PC MNT |
156 | - |
|
Datasheet | 564 | Bulk | Active | Red (x 3) | 635nm | 3 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | - | - | 1.7V | Through Hole, Right Angle |
|
XGUYX10DLED CBI 5.08X1.78MM 10SEG Y VERT |
150 | - |
|
Datasheet | - | Tube | Active | Yellow (x 10) | 590nm | Bar - 10 Wide, DIP | 30mA | 9mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 1.95V | Through Hole |
|
5682F5_5LED CBI 3MM BI-LVL GRN RA |
1,122 | - |
|
Datasheet | 5682F | Bulk | Active | Green (x 2) | 565nm | 2 High | 10mA | 8.5mcd | - | Tinted | Round with Domed Top | 3mm, T-1 | 2.3V | Through Hole, Right Angle |
|
XGCBDX10DLED CBI 5.08X1.78MM 10SEG BLU TH |
193 | - |
|
Datasheet | - | Tube | Active | Blue (x 10) | 460nm | Bar - 10 Wide, DIP | 30mA | 9.4mcd | - | - | Rectangle with Flat Top | 5.08mm x 1.78mm | 3V | Through Hole |
|

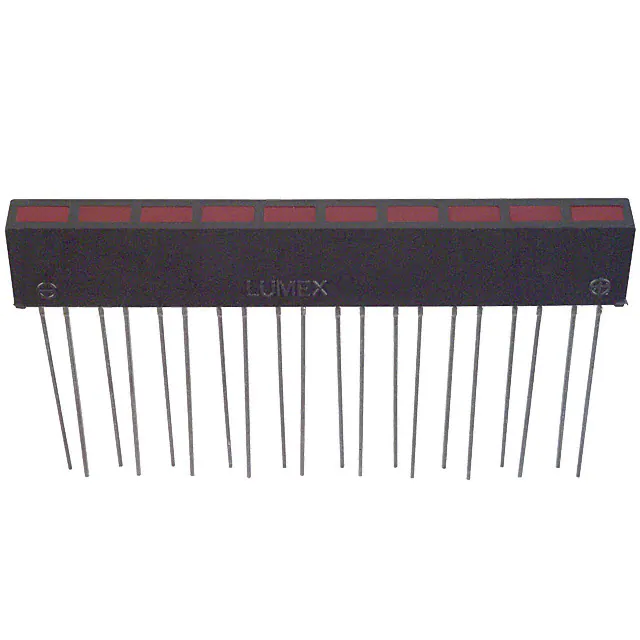

SSA-LXH1025IDLED CBI 5X2.5MM 10-SEG RED VERT |
3,417 | - |
|
Datasheet | - | Bulk | Active | Red (x 10) | 635nm | Bar - 10 Wide, SIP | 30mA | 10mcd | 110° | Diffused, Tinted | Rectangle with Flat Top | 5.00mm x 2.50mm | 2V | Through Hole |
|

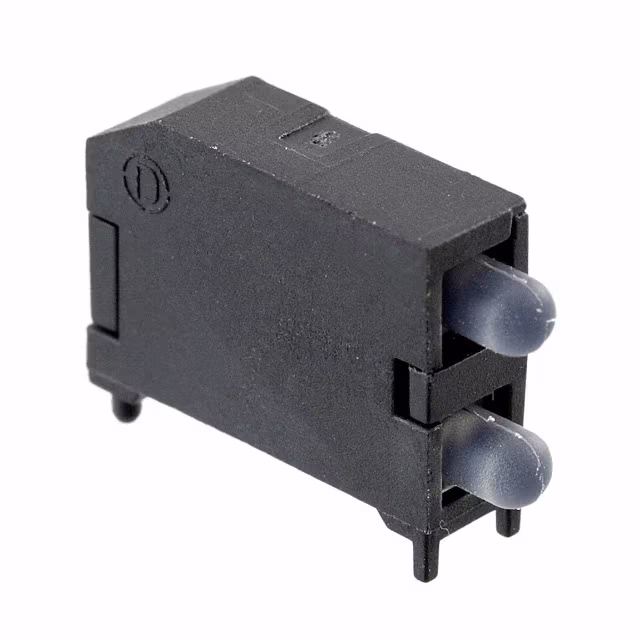

5923131313FLED CBI 3MM BILVL G/Y RA 13" RL |
182 | - |
|
Datasheet | 592 | Tape & Reel (TR) | Active | Green, Yellow (x 2) | 572nm, 587nm | 2 High | 30mA | 3mcd Green, 2mcd Yellow | - | - | Round with Domed Top | 3.00mm Dia | 2V | Surface Mount, Right Angle |
|

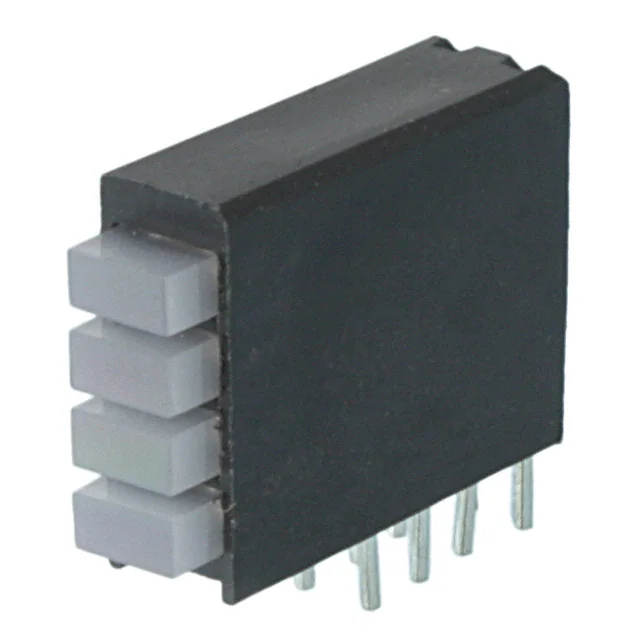

5680724444FLED CBI 4.2X2MM QUAD GRN/YL RA |
624 | - |
|
Datasheet | 568 | Bulk | Active | Green, Yellow (x 4) | 565nm, 585nm | 4 High | 20mA | 3.7mcd Green, 2.5mcd Yellow | 140° | - | Rectangle with Flat Top | 4.20mm x 2.00mm | 2.1V | Through Hole, Right Angle |
|

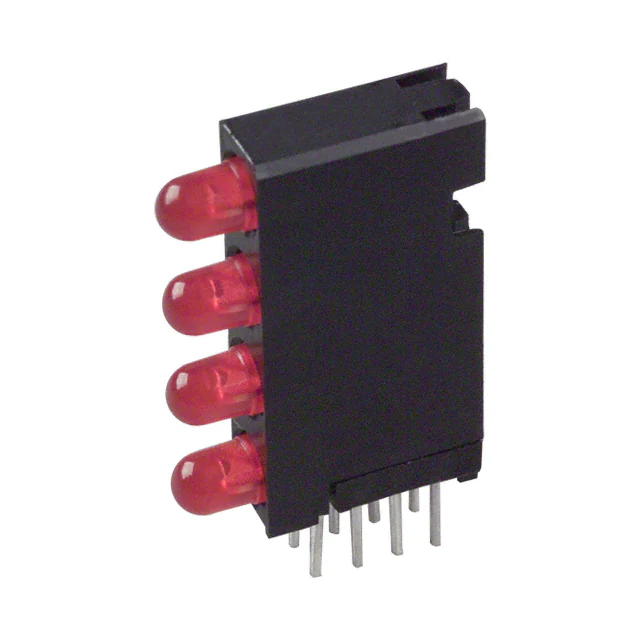

5680201111FLED CBI 3MM QUAD RED RA PC MNT |
325 | - |
|
Datasheet | 568 | Bulk | Active | Red (x 4) | 635nm | 4 High | 2mA | 1.6mcd | 60° | Diffused, Tinted | Round with Domed Top | 3mm, T-1 | 1.7V | Through Hole, Right Angle |
Circuit Board Indicators, Arrays, Light Bars, Bar Graphs FAQ
What Circuit Board Indicators, Arrays, Light Bars, Bar Graphs components can I source from EGOO?
You can browse available Circuit Board Indicators, Arrays, Light Bars, Bar Graphs product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Circuit Board Indicators, Arrays, Light Bars, Bar Graphs parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
