Delay Lines
Compare the current Delay Lines Clock/Timing selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Taps/Steps | Function | Delay to 1st Tap | Tap Increment | Available Total Delays | Number of Independent Delays | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1100LU-50+IC DELAY LINE 5TAP 50NS 8UMAX |
111 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 10ns | 10 ns | 50ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
DS1135LZ-20+IC DELAY LINE 20NS 8SOIC |
2,093 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | - | Multiple, NonProgrammable | 20ns | - | 20ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|

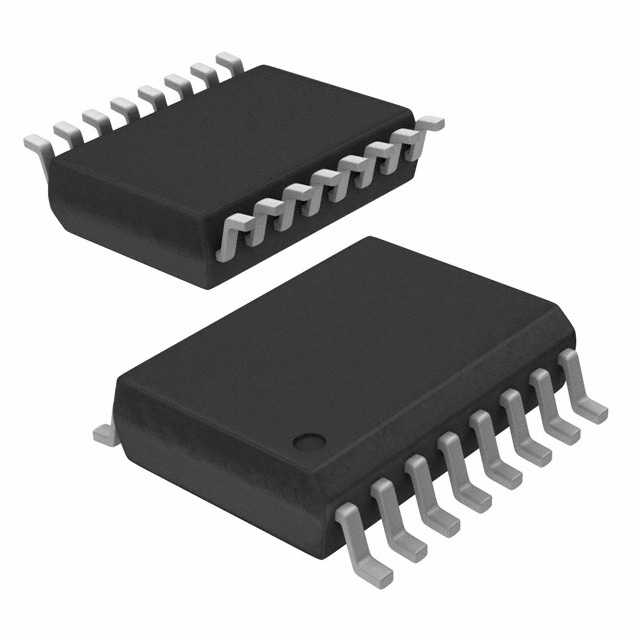

DS1023S-25+TIC DEL LN 256TAP 63.75NS 16SOIC |
895 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 256 | 1-Shot, Programmable | 16.5ns | 250 ps | 63.75ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
|
DS1100Z-250+IC DELAY LINE 5TAP 250NS 8SOIC |
741 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 50ns | 50 ns | 250ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100Z-75+IC DELAY LINE 5TAP 75NS 8SOIC |
102 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 15ns | 15 ns | 75ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100Z-125+IC DELAY LINE 5TAP 125NS 8SOIC |
101 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 25ns | 25 ns | 125ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100Z-30+IC DELAY LINE 5TAP 30NS 8SOIC |
1,497 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 6ns | 6 ns | 30ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1100U-60+IC DELAY LINE 5TAP 60NS 8UMAX |
126 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 12ns | 12 ns | 60ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100U-200+IC DELAY LINE 5TAP 200NS 8UMAX |
2,095 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 40ns | 40 ns | 200ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1135Z-6+IC DELAY LINE 6NS 8SOIC |
117 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | - | Multiple, NonProgrammable | 6ns | - | 6ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
Delay Lines FAQ
How can I narrow the current Delay Lines selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Delay Lines parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
