Delay Lines
Compare the current Delay Lines Clock/Timing selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Taps/Steps | Function | Delay to 1st Tap | Tap Increment | Available Total Delays | Number of Independent Delays | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS1100LZ-30+IC DELAY LINE 5TAP 30NS 8SOIC |
3,205 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 5 | Nonprogrammable | 6ns | 6 ns | 30ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|

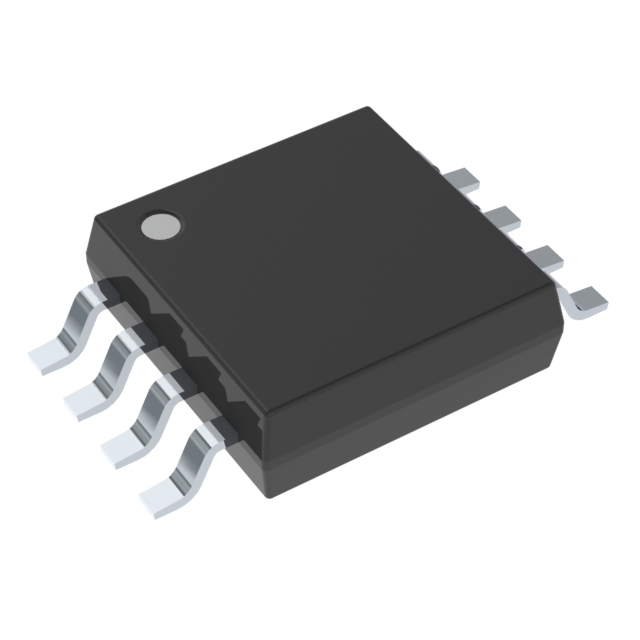

DS1100LU-100+IC DELAY LINE 5TAP 100NS 8UMAX |
202 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 20ns | 20 ns | 100ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
DS1100LU-125+IC DELAY LINE 5TAP 125NS 8UMAX |
102 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 25ns | 25 ns | 125ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DS1100LU-200+IC DELAY LINE 5TAP 200NS 8UMAX |
4,307 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | 5 | Nonprogrammable | 40ns | 40 ns | 200ns | 1 | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
DS1110S-125+IC DELAY LINE 10TAP 125NS 16SOIC |
2,550 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | 10 | Nonprogrammable | 12.5ns | 12.5 ns | 125ns | 1 | 4.75V ~ 5.25V | -40°C ~ 85°C | - | - | Surface Mount | 16-SOIC |
|

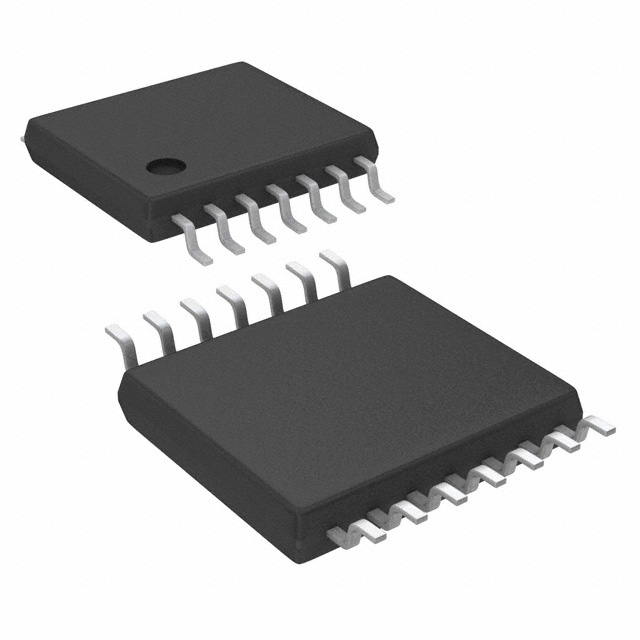

DS1110LE-500+IC DELAY LN 10TAP 500NS 14TSSOP |
1,920 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | 10 | Nonprogrammable | 50ns | 50 ns | 500ns | 1 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
DS1110LE-200+IC DELAY LN 10TAP 200NS 14TSSOP |
4,870 | - |
|
Datasheet | - | 14-TSSOP (0.173", 4.40mm Width) | Tube | Active | 10 | Nonprogrammable | 20ns | 20 ns | 200ns | 1 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
DS1135LZ-12+IC DELAY LINE 12NS 8SOIC |
3,694 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | - | Multiple, NonProgrammable | 12ns | - | 12ns | 3 | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
|
DS1023S-500+T&RIC DELAY LN 256TAP 1275NS 16SOIC |
1,000 | - |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 256 | 1-Shot, Programmable | 16.5ns | 5 ns | 1275ns | 1 | 4.75V ~ 5.25V | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
MXD1013PA0753-IN-1 SILICON DELAY LINE |
4,311 | - |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Bulk | Active | - | Multiple | 75ns | - | 75ns | 3 | 4.75V ~ 5.25V | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
