Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMJ-4-472CMC 4.7MH 200MA 4LN SMD |
810 | - |
|
Datasheet | Horizontal, 4 Flat Lead | - | 4 | - | 4.7 mH @ 100 kHz | 200mA | 860mOhm (Typ) | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
SC-030-E110JH-PCMC 10.99MH 3A 2LN TH |
170 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10.99 mH @ 100 kHz | 3A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
TVHS-1.0-103CMC 10MH 1A 2LN SMD |
350 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 10 mH @ 10 kHz | 1A | 450mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
B82725A2163N020CMC 560UH 16A 2LN TH |
400 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 560 µH @ 100 kHz | 16A | 7mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
SN16-300JACMC 60UH 8A 2LN TH |
198 | - |
|
Datasheet | Vertical, 2 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 8A | 21mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
LDFL002302LS-V0ENANOCRYSTALLINE COMMON MODE COIL |
180 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 85mOhm | - | - | - | - | - | - | - | - |
|
PE-96181NLCMC 5A (TYP) 2LN TH |
180 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 5A (Typ) | 60mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL001802LS-V0ENANOCRYSTALLINE COMMON MODE COIL |
200 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 28 mH @ 10 kHz | 1A | 200mOhm | - | - | - | - | - | - | - | - |
|
DSO1-30-0004CMC 4A 2LN TH |
200 | - |
|
Datasheet | Radial | - | 2 | - | - | 4A | 40mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|

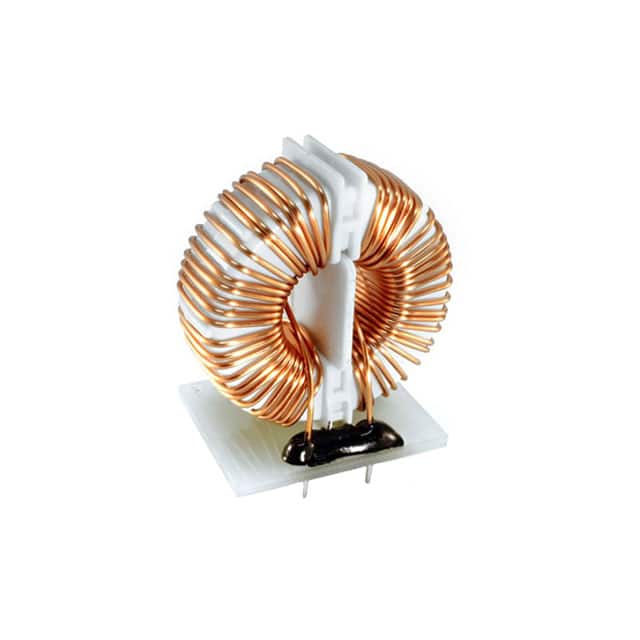

PA4416NLCMC 8A 2LN 13.8K OHM TH |
382 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 13.8 kOhms @ 1.96 MHz | - | 8A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CCJ-4-221CMC 220UH 330MA 4LN SMD |
375 | - |
|
Datasheet | Vertical, 8 Flat Lead | Signal Line | 4 | - | 220 µH @ 100 kHz | 330mA | 190mOhm (Typ) | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
TVHS-2.5-302CMC 3MH 2.5A 2LN SMD |
220 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 3 mH @ 10 kHz | 2.5A | 80mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
|
LDFL014172VD-V0ECMC 1.7MH 14A 2LN TH |
462 | - |
|
Datasheet | Radial, Vertical (Open) | Power Line | 2 | - | 1.7 mH @ 100 kHz | 14A | 7mOhm | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
CMX1211W182B-10CMC 1.8UH 9A 2LN SMD |
426 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.8 µH @ 100 kHz | 9A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SN16-500CMC 168UH 8A 2LN TH |
244 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 168 µH @ 100 kHz | 8A | 31mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
LDFW012202Y6-V0ECMC 2MH 12A 2LN TH |
462 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 12A | 7.5mOhm (Typ) | 250V | - | -40°C ~ 130°C | AEC-Q200 | - | - | - | - |
|
|
CMX1211Z321B-10CMC 320UH 28A 2LN SMD |
221 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 320 µH @ 100 kHz | 28A | 2.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PM9408.254NLTIND CMC 150UH 32A |
120 | - |
|
Datasheet | Horizontal, 11 PC Pad | Power Line | 2 | 600 Ohms @ 2 MHz | - | 32A | 1.9mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
|
CMX1211Z181B-10CMC 180UH 32A 2LN SMD |
470 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 180 µH @ 100 kHz | 32A | 1.35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CM9900-104CMC 100UH 2.8A 2LN TH |
388 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 2.8A | 25mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
