Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR-050-0R9A070JCMC 7MH 5A 2LN TH |
5,436 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 5A | 47mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

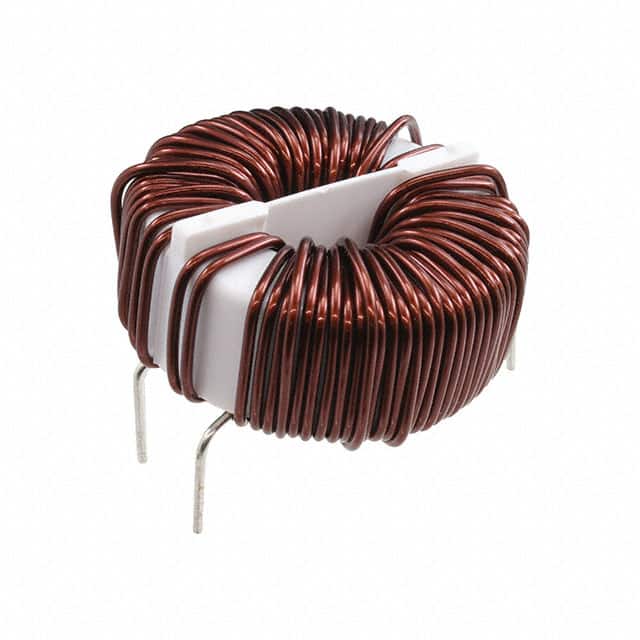

SC-10-100CMC 1MH 10A 2LN TH |
1,069 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF-02-1300CMC 13MH 2A 2LN TH |
2,261 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

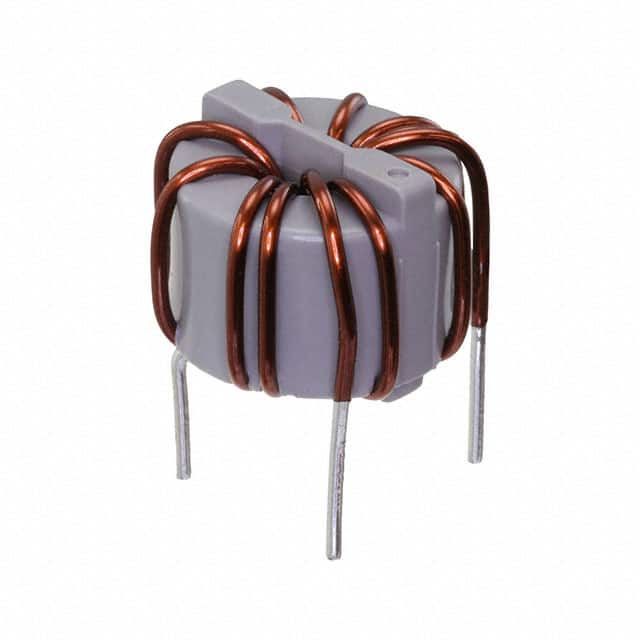

SCF-03-650CMC 6.5MH 3A 2LN TH |
1,986 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-03-650HCMC 6.5MH 3A 2LN TH |
1,020 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCR19XV-100-1R1A009JVCMC 500UH 10A 2LN TH AEC-Q200 |
211 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCF19XV-080-1R0A011JHCMC 1.5MH 8A 2LN TH AEC-Q200 |
127 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.98mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

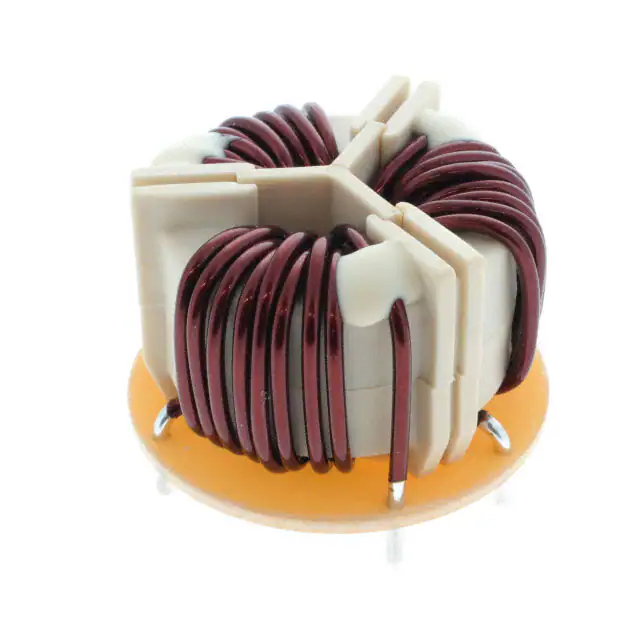

SCF31-150-S1R6A010JHCMC 1MH 15A 3LN TH |
113 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1 mH @ 100 kHz | 15A | 5.4mOhm | 500V | 500V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF25-08-1300CMC 13MH 8A 2LN TH |
283 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 8A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

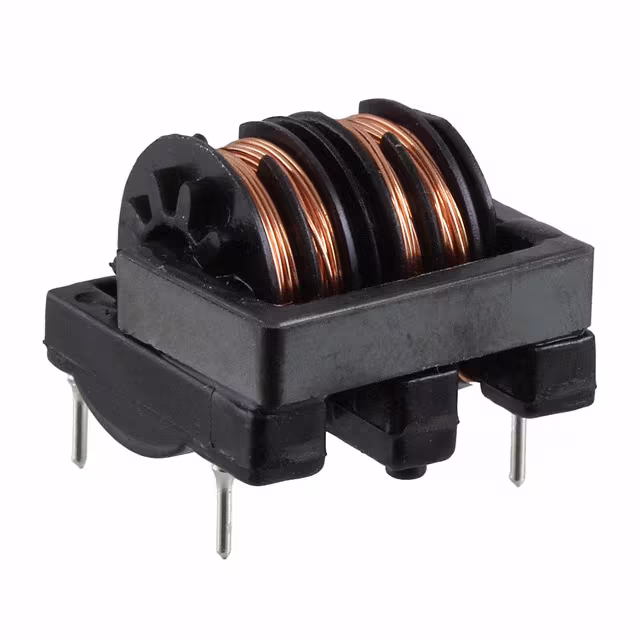

SS11H-07120-CHCMC 12MH 700MA 2LN TH |
4,092 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 1 kHz | 700mA | 900mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
