Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-06-900CMC 9MH 6A 2LN TH |
187 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 9 mH @ 1 kHz | 6A | 60mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19XV-120-1R2A007JVCMC 600UH 12A 2LN TH AEC-Q200 |
178 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 12A | 3.99mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

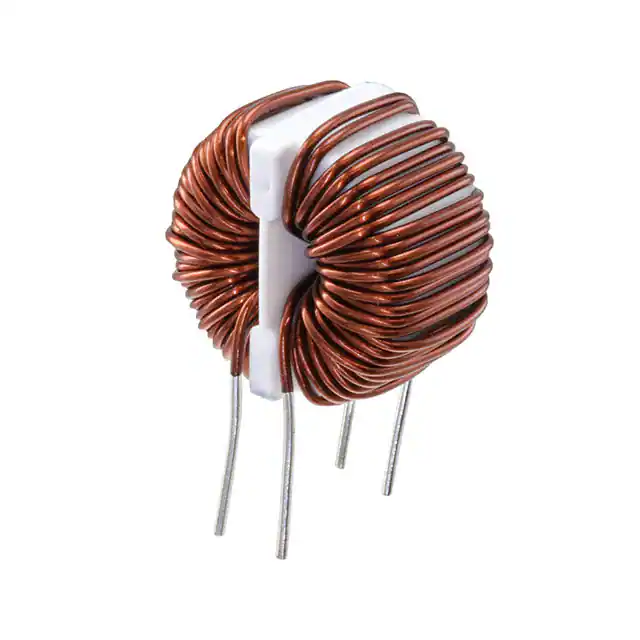

SC-07-650CMC 6.5MH 7A 2LN TH |
148 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 1 kHz | 7A | 40mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-50JCMC 5MH 4A 2LN TH |
188 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 100 kHz | 4A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

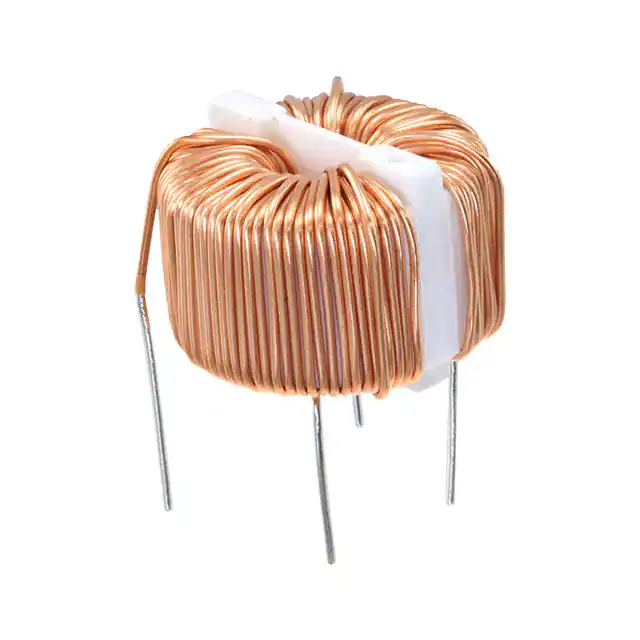

SC-05-803CMC 8MH 4A 2LN TH |
151 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 90mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCF19-040-0R8A1100JCMC 11MH 4A 2LN TH |
246 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 50 kHz | 4A | 70mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-08-D060CMC 60UH 8A 2LN TH |
150 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 8A | 30mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR25-070-1R1A070JCMC 7MH 7A 2LN TH |
131 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 7A | 34mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

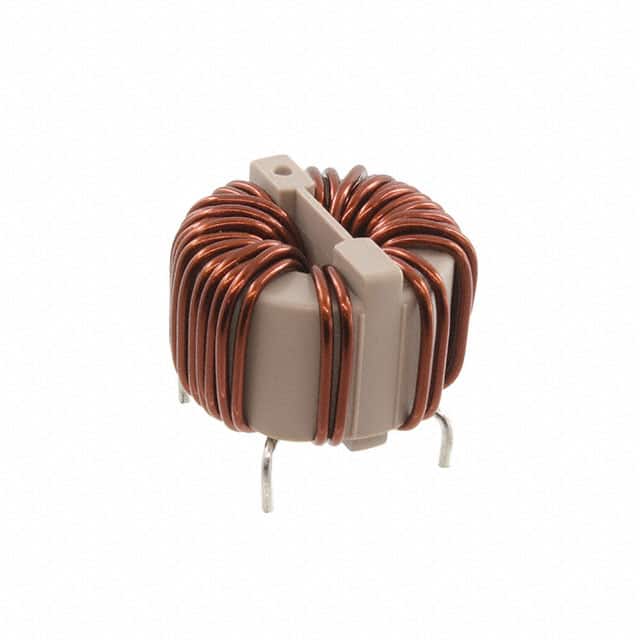

SC-10-E200HCMC 2MH 10A 2LN TH |
146 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 10A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-300JVCMC 44MH 2A 2LN TH |
174 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 44 mH @ 16 kHz | 2A | 300mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
