Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCF56X-550-S2R2C006JHIND CMC 0.76MH 55A 0.98MOHM |
1,317 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 760 µH @ 100 kHz | 55A | 0.98mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF56X-450-S2R0C008JHIND CMC 1.36MH 45A 1.59MOHM |
2,986 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1.36 mH @ 100 kHz | 45A | 1.59mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF56X-650-S2R3C005JHIND CMC 0.53MH 65A 0.78MOHM |
1,622 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 530 µH @ 100 kHz | 65A | 0.78mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|
|
SCF56X-500-S2R1C007JHIND CMC 1.04MH 50A 1.21MOHM |
1,019 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1.04 mH @ 100 kHz | 50A | 1.21mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|

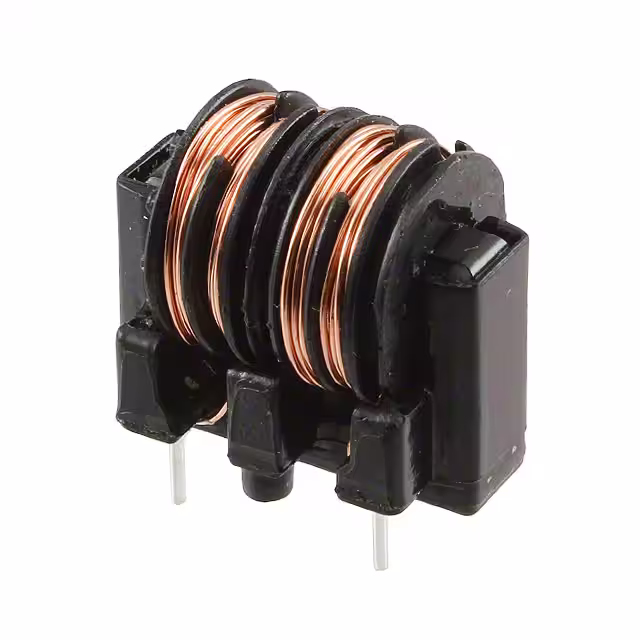

SS17VA-R10025CMC 2.5MH 1A 2LN TH |
3,939 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 1A | 380mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS20H-10080CMC 8MH 1A 2LN TH |
4,126 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 1A | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-R400005CMC 2LN TH |
3,810 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | - | - | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN3-100NMC 2.5UH 3.0A 0.0250 OHM TH |
232 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 2.5 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NHS-08235CMC 23.5MH 800MA 2LN TH |
1,675 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 23.5 mH @ 10 kHz | 800mA | 420mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSR21HS-07245CMC 24.5MH 700MA 2LN TH |
3,945 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 24.5 mH @ 10 kHz | 700mA | 590mOhm | 250V | - | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
