Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSD1278H-684KEDFIXED INDUCTOR 680UH SMD |
1,139 | - |
|
Datasheet | Nonstandard | - | 2 | - | 680 µH @ 100 kHz | 790mA | 1.78Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-273MEDFIXED INDUCTOR 27UH SMD |
1,134 | - |
|
Datasheet | Nonstandard | - | 2 | - | 27 µH @ 100 kHz | 3.91A | 78mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-224KEDFIXED INDUCTOR 220UH SMD |
1,128 | - |
|
Datasheet | Nonstandard | - | 2 | - | 220 µH @ 100 kHz | 1.41A | 540mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-564KEDFIXED INDUCTOR 560UH SMD |
1,128 | - |
|
Datasheet | Nonstandard | - | 2 | - | 560 µH @ 100 kHz | 900mA | 1.35Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-683MEDFIXED INDUCTOR 68UH SMD |
1,094 | - |
|
Datasheet | Nonstandard | - | 2 | - | 68 µH @ 100 kHz | 2.65A | 155mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-183MEDFIXED INDUCTOR 18UH SMD |
1,088 | - |
|
Datasheet | Nonstandard | - | 2 | - | 18 µH @ 100 kHz | 4.67A | 51mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-473MEDFIXED INDUCTOR 47UH SMD |
1,069 | - |
|
Datasheet | Nonstandard | - | 2 | - | 47 µH @ 100 kHz | 2.94A | 127mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-652MEDFIXED INDUCTOR 6.5UH SMD |
1,061 | - |
|
Datasheet | Nonstandard | - | 2 | - | 6.5 µH @ 100 kHz | 6.74A | 25mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-104KEDFIXED INDUCTOR 100UH SMD |
1,041 | - |
|
Datasheet | Nonstandard | - | 2 | - | 100 µH @ 100 kHz | 2.25A | 230mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-103MEDFIXED INDUCTOR 10UH SMD |
998 | - |
|
Datasheet | Nonstandard | - | 2 | - | 10 µH @ 100 kHz | 5.56A | 36mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-563MEDFIXED INDUCTOR 56UH SMD |
990 | - |
|
Datasheet | Nonstandard | - | 2 | - | 56 µH @ 100 kHz | 2.75A | 140mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-333MEDFIXED INDUCTOR 33UH SMD |
756 | - |
|
Datasheet | Nonstandard | - | 2 | - | 33 µH @ 100 kHz | 3.66A | 86mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ED101-1.25-7M0CMC 7MH 1.25A 2LN TH |
450 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 1.25A | 400mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
ED101-1.5-5M0CMC 5MH 1.5A 2LN TH |
448 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1.5A | 300mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ED101-2-3M0CMC 3MH 2A 2LN TH |
157 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 200mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
SN8D-400JBCMC 80UH 2A 2LN TH |
146 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | 2A | 85mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
RS512-0.5-02CMC 200UH 500MA 2LN TH |
359 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN232-0.6-02-47MCMC 47MH 600MA 2LN TH |
295 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

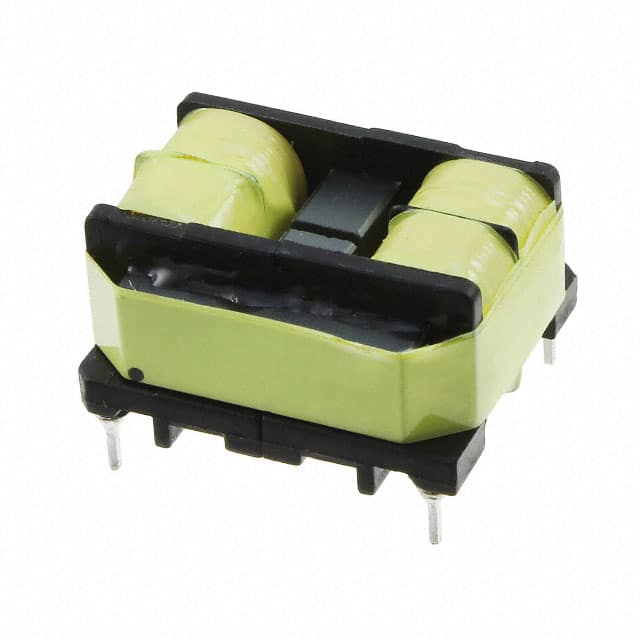

PA4040.003NLCMC 2.5A 2LN TH |
1,670 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 46mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CDF8500LDCMC 5UH 500MA 8LN 520 OHM SMD |
2,866 | - |
|
Datasheet | 16-BQFN | Signal Line | 8 | 520 Ohms @ 42 MHz | 5 µH @ 1 MHz | 500mA | 180mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
