Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLW44SN851SK2LCMC 1.9A 2LN 850 OHM SMD |
4,153 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 850 Ohms @ 100 MHz | - | 1.9A | 56mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|

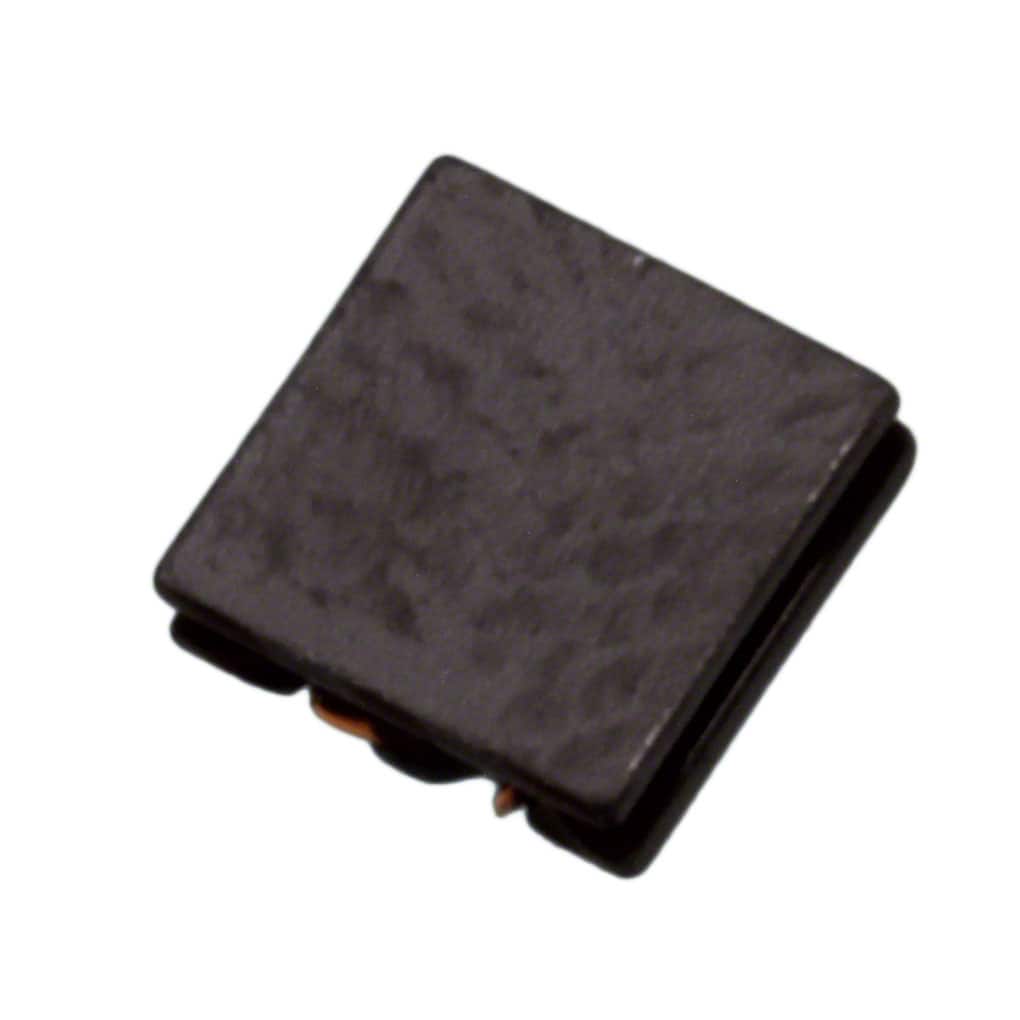

DLW44SN251SK2LCMC 2.6A 2LN 250 OHM SMD |
1,507 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 2.6A | 33.6mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
-8-Lead-DLP1N-Series.jpg "DLP1NDN350HL4L")
|
DLP1NDN350HL4LCMC 100MA 4LN 35 OHM SMD |
1,088 | - |
|
Datasheet | 0603 (1608 Metric), 8 Lead | Signal Line | 4 | 35 Ohms @ 100 MHz | - | 100mA | 2.25Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP1NDN670HL4LCMC 80MA 4LN 67 OHM SMD |
3,658 | - |
|
Datasheet | 0603 (1608 Metric), 8 Lead | Signal Line | 4 | 67 Ohms @ 100 MHz | - | 80mA | 3.63Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLP1NDN900HL4LCMC 60MA 4LN 90 OHM SMD |
2,028 | - |
|
Datasheet | 0603 (1608 Metric), 8 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 60mA | 4.63Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
DLW5BSN302SQ2LCMC 500MA 2LN 3K OHM SMD |
2,881 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 3 kOhms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN152SQ2LCMC 1A 2LN 1.5K OHM SMD |
3,158 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 1A | 100mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN191SQ2LCMC 5A 2LN 190 OHM SMD |
2,147 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 190 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN351SQ2LCMC 2A 2LN 350 OHM SMD |
4,203 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 350 Ohms @ 100 MHz | - | 2A | 40mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN102SQ2LCMC 1.5A 2LN 1K OHM SMD |
3,557 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 60mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
