Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLW5BTH102TQ2LCMC 2A 2LN 1K OHM SMD AEC-Q200 |
801 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 34mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW32SH101XF2LCMC 100UH 115MA 2LN SMD AEC-Q200 |
3,686 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 115mA | 2.1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PLT5BPH5013R1SNLCMC 1.8A 2LN 500OHM SMD AEC-Q200 |
21,715 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | 500 Ohms @ 10 MHz | - | 1.8A | 22.1mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
PLT5BPH3013R7SNLCMC 2.2A 2LN 300OHM SMD AEC-Q200 |
3,976 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | 300 Ohms @ 10 MHz | - | 2.2A | 11mOhm (Typ) | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
PLT5BPH1015R6SNLCMC 2.9A 2LN 100OHM SMD AEC-Q200 |
2,459 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | 100 Ohms @ 10 MHz | - | 2.9A | 5mOhm (Typ) | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
DLW32MH101XT2LCMC 100UH 100MA 2LN SMD AEC-Q200 |
4,514 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 3.12Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW5AHN402SQ2LCMC 200MA 2LN 4K OHM SMD |
775 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 4 kOhms @ 100 MHz | - | 200mA | 3Ohm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|

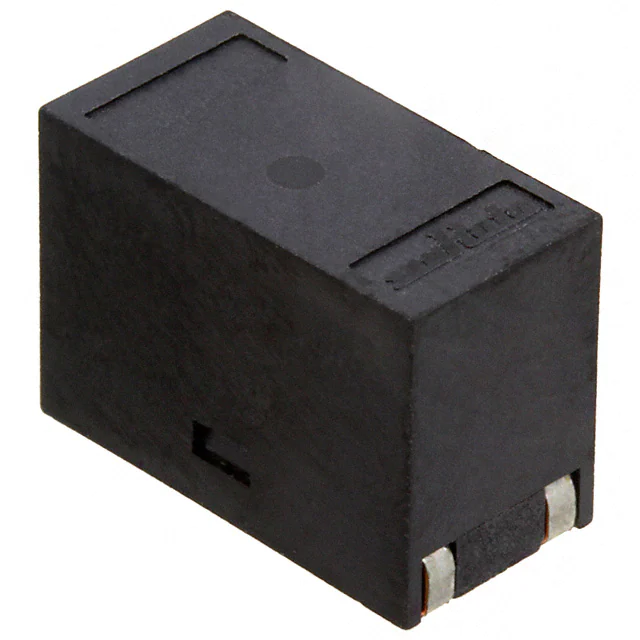

PLT10HH1026R0PNLCMC 6A 2LN 1K OHM SMD AEC-Q200 |
5,681 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 1 kOhms @ 10 MHz | - | 6A | 8mOhm (Typ) | 100V | - | -55°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
PLT10HH9016R0PNLCMC 6A 2LN 900 OHM SMD AEC-Q200 |
5,393 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 900 Ohms @ 10 MHz | - | 6A | 8.5mOhm | 100V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PLT10HH501100PNLCMC 10A 2LN 500 OHM SMD AEC-Q200 |
3,741 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 500 Ohms @ 10 MHz | - | 10A | 4.1mOhm | 100V | - | -55°C ~ 105°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
