Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACMP-Q1260-701-TCMC 900MA 2LN 700OHM SMD AECQ200 |
1,306 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 900mA | 5mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACMP-1566-301-TCMC 13A 2LN 300 OHM SMD |
2,429 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-152-TCMC 5A 2LN 1.5K OHM SMD |
4,283 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.5 kOhms @ 100 MHz | - | 5A | 23mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-701-TCMC 10A 2LN 700 OHM SMD |
1,131 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-551-TCMC 10A 2LN 550 OHM SMD |
3,805 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-501-TCMC 10A 2LN 500 OHM SMD |
2,631 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 10A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-1566-601-TCMC 10A 2LN 600 OHM SMD |
4,742 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 600 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ALFT-04-1CMC 240UH 6A 2LN TH |
2,756 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 240 µH @ 1 kHz | 6A | 5mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ALFT-04-2CMC 350UH 6A 2LN TH |
3,956 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 350 µH @ 1 kHz | 6A | 6mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
|

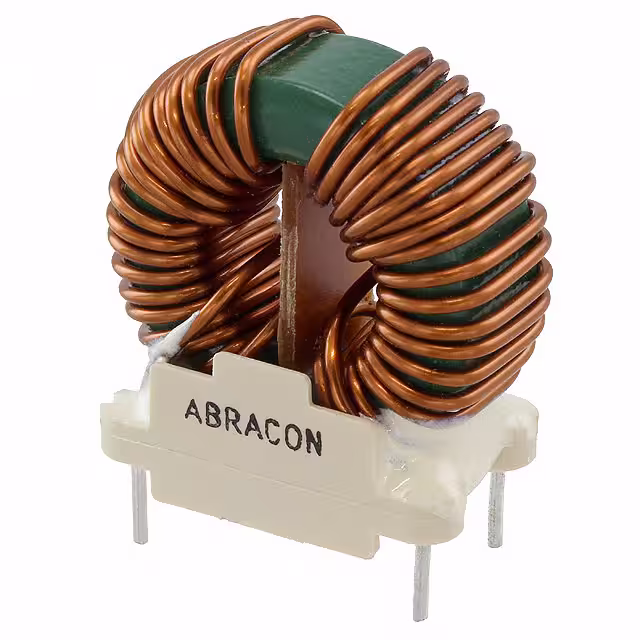

ALFT-04-7CMC 4.5MH 3.7A 2LN TH |
2,510 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 4.5 mH @ 1 kHz | 3.7A | 20mOhm | - | - | -25°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
