Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

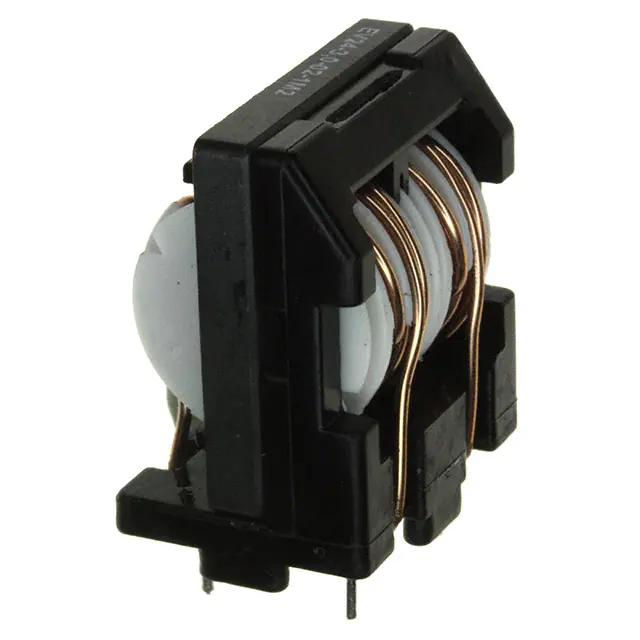

EV24-3.0-02-1M2CMC 1.2MH 3A 2LN TH |
460 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 400 Hz | 3A | 29mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EH28-2.0-02-11MCMC 11MH 2A 2LN TH |
328 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 2A | 162mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

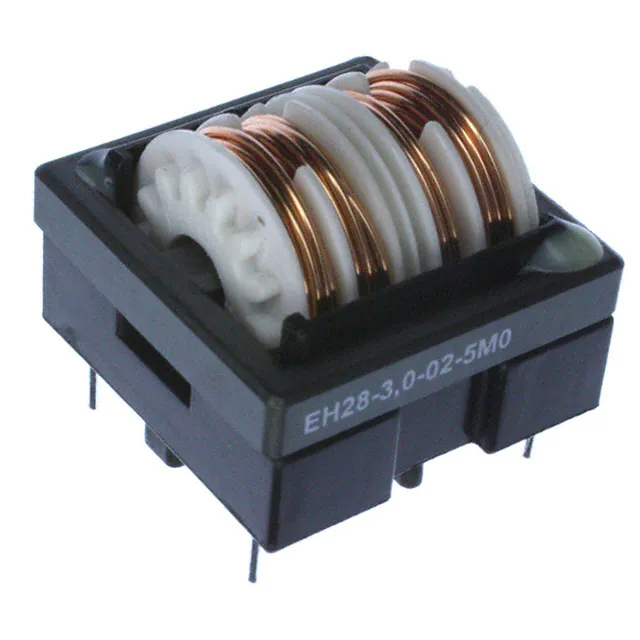

EH28-3.0-02-5M0CMC 5MH 3A 2LN TH |
500 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 400 Hz | 3A | 79mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EH28-1.0-02-75M-XCMC 75MH 1A 2LN TH |
467 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 75 mH @ 400 Hz | 1A | 880mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EH28-2.0-02-15M-XCMC 15MH 2A 2LN TH |
228 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 400 Hz | 2A | 196mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
EH28-1.5-02-27M-XCMC 27MH 1.5A 2LN TH |
498 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 400 Hz | 1.5A | 282mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

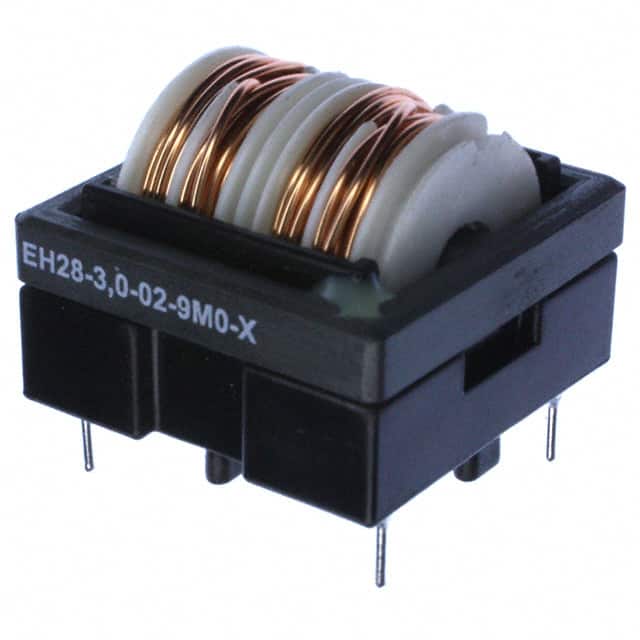

EH28-3.0-02-9M0-XCMC 9MH 3A 2LN TH |
120 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 400 Hz | 3A | 115mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

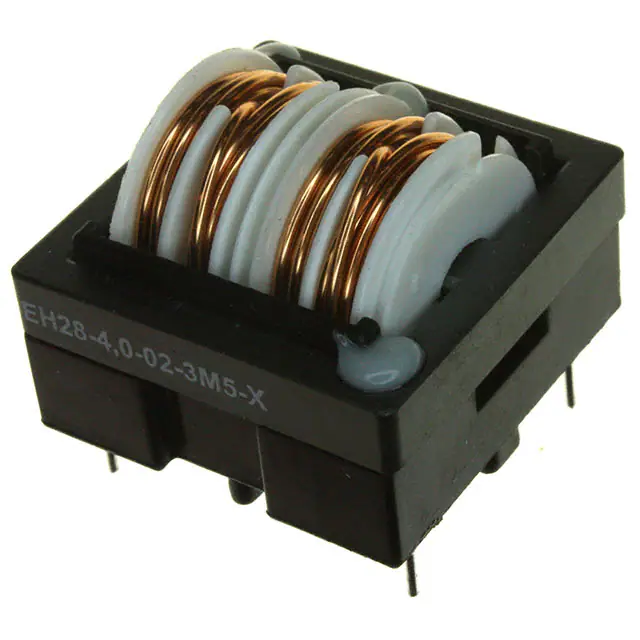

EH28-4.0-02-3M5-XCMC 3.5MH 4A 2LN TH |
382 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 400 Hz | 4A | 52mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
RN232-1-02-18MCMC 18MH 1A 2LN TH |
269 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 1A | 390mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN242-0.5-02-82MCMC 82MH 500MA 2LN TH |
289 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
