Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD6137-16-1M5CMC 1.5MH 16A 3LN TH |
2,541 | - |
|
Datasheet | - | Power Line | 3 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

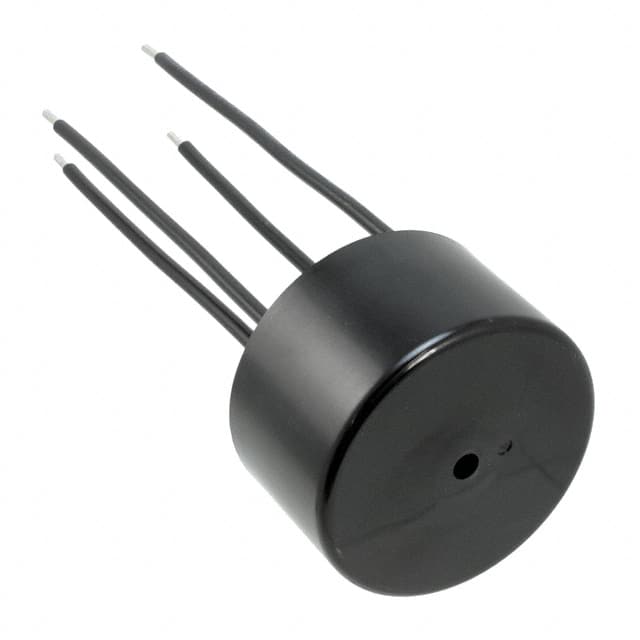

RD7127-6-25M0CMC 25MH 6A 2LN TH |
4,997 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 400 Hz | 6A (Typ) | 84.2mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

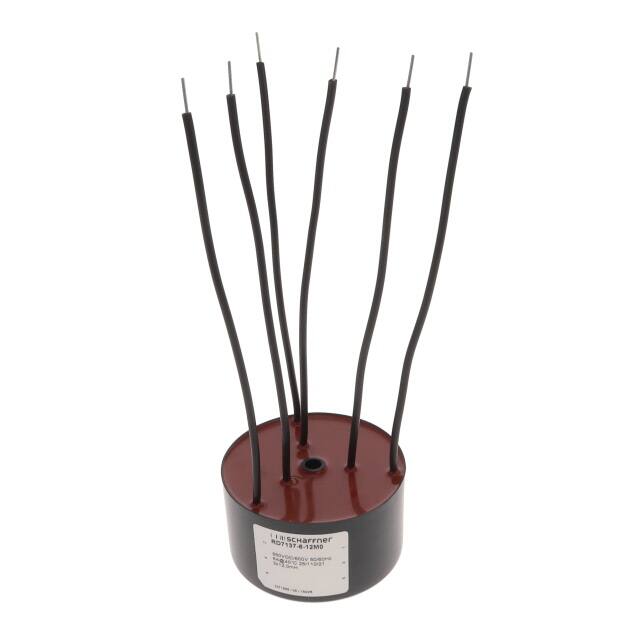

RD7137-6-12M0CMC 12MH 6A 3LN TH |
1,750 | - |
|
Datasheet | - | Power Line | 3 | - | 12 mH @ 1 kHz | 6A (Typ) | 60.6mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7137-10-6M6CMC 6.6MH 10A 3LN TH |
1,107 | - |
|
Datasheet | - | Power Line | 3 | - | 6.6 mH @ 400 Hz | 10A (Typ) | 21.9mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7137-36-0M5CMC 500UH 36A 3LN TH |
3,287 | - |
|
Datasheet | - | Power Line | 3 | - | 500 µH @ 400 Hz | 36A (Typ) | 2.75mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-16-1M5CMC 1.5MH 16A 4LN TH |
4,113 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 1.5 mH @ 400 Hz | 16A (Typ) | 8.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-25-0M7CMC 700UH 25A 4LN TH |
4,905 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 700 µH @ 1 kHz | 25A (Typ) | 3.65mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-36-0M2CMC 200UH 36A 4LN TH |
1,704 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 200 µH @ 400 Hz | 36A (Typ) | 2.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

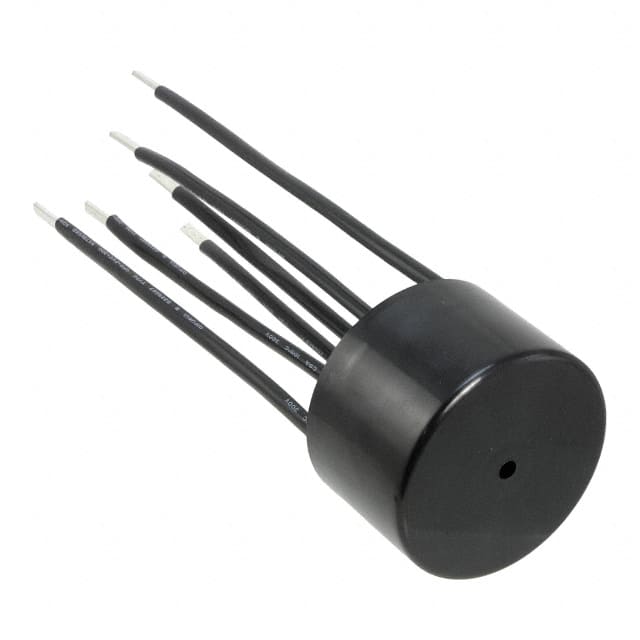

RD8137-50-0M6CMC 600UH 50A 3LN TH |
4,535 | - |
|
Datasheet | - | Power Line | 3 | - | 600 µH @ 400 Hz | 50A (Typ) | 2.15mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD8147-16-3M0CMC 3MH 16A 4LN TH |
3,962 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 3 mH @ 400 Hz | 16A (Typ) | 9.25mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
