Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCW1210H-2-350TFCMC 320MA 2LN 35 OHM SMD |
1,202 | - |
|
Datasheet | 0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 320mA | 320mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012H-2-900TFCMC 280MA 2LN 90 OHM SMD |
2,000 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 280mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012-2-181TFCMC 330MA 2LN 180 OHM SMD |
1,913 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 180 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|

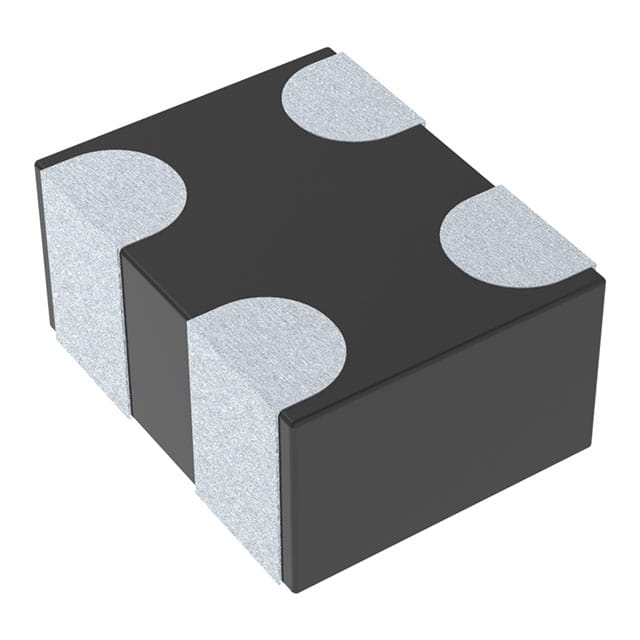

SDMM0806H-2-350TCMC 100MA 2LN 35 OHM SMD |
9,755 | - |
|
Datasheet | 0302 (0806 Metric) | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012-2-371TFCMC 280MA 2LN 370 OHM SMD |
905 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012-2-900TFCMC 330MA 2LN 90 OHM SMD |
1,120 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012C-2-900TFCMC 330MA 2LN 90 OHM SMD |
2,717 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 330mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDMM0806H-2-470TCMC 100MA 2LN 47 OHM SMD |
4,958 | - |
|
Datasheet | 0302 (0806 Metric) | Signal Line | 2 | 47 Ohms @ 100 MHz | - | 100mA | 3.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDMM0806H-2-900TCMC 100MA 2LN 90 OHM SMD |
3,856 | - |
|
Datasheet | 0302 (0806 Metric) | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SDCW2012-2-601TFCMC 200MA 2LN 600 OHM SMD |
3,051 | - |
|
Datasheet | 0805 (2012 Metric), 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 200mA | 550mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
