Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACE1V2012-102-RCMC 190MA 2LN 1KOHM SMD AEC-Q200 |
17,602 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 190mA | 1.5Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V2012-222-RCMC 150MA 2LN 2.2KOHM SMD |
2,054 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 150mA | 2Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
.jpg "PE-1206CCMC900STS")
|
PE-1206CCMC900STSCMC 370MA 2LN 90 OHM SMD |
5,218 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | - | - | - | - | - | - |
|
PCMF2HDMI2SZCMC 4LN SMD ESD |
7,225 | - |
|
Datasheet | 10-UFBGA, WLCSP | Signal Line | 4 | - | - | - | 3Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
MCZ1210DH800CPTD25CMC 100MA 2LN 80OHM SMD AEC-Q200 |
6,750 | - |
|
Datasheet | 0504 (1210 Metric), 4 PC Pad | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
UU9LFNP-B103CMC 10MH 200MA 2LN TH |
2,457 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | - | - | - | - | - | - | - |
|
BWCU00160811221M02CMC 500MA 2LN 220 OHM SMD |
2,386 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 500mA | 209mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
784231371CMC 280MA 2LN 370OHM SMD AECQ200 |
1,620 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 370 Ohms @ 100 MHz | - | 280mA | 450mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACE1V3225-101-RCMC 100UH 150MA 2LN 5.1KOHM SMD |
8,660 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ECMF04-4HSWM10YCMC 100MA 4LN SMD ESD AEC-Q200 |
6,589 | - |
|
Datasheet | 10-WFDFN | Signal Line | 4 | - | - | 100mA | 5.5Ohm (Typ) | - | - | -55°C ~ 125°C | AEC-Q200 | - | TVS Diode ESD Protection | - | - |
|

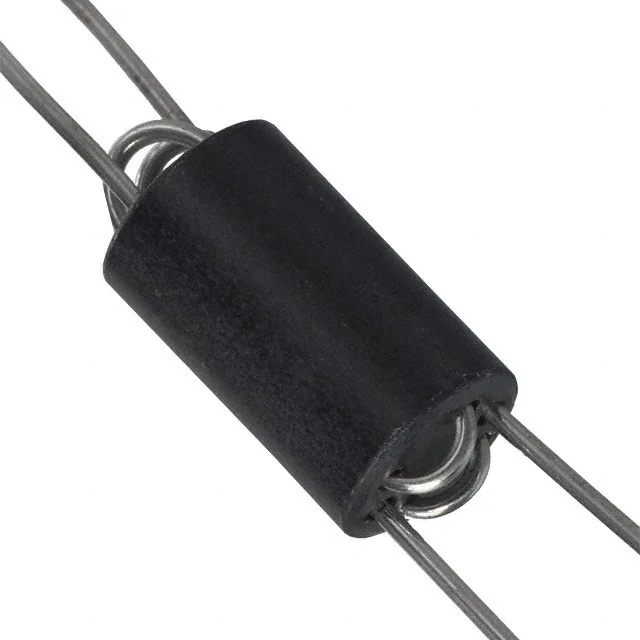

FB20011-3B-RCCMC 2LN 430 OHM TH |
1,761 | - |
|
Datasheet | Axial - 4 Leads | - | 2 | 430 Ohms @ 100 MHz | - | - | - | - | - | - | - | - | - | - | - |
|
PE-1812ACC220STSCMC 310MA 2LN 1.2KOHM SMD |
21,527 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | - | 310mA | 600mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
PE-1812ACC110STSCMC 360MA 2LN 600OHM SMD AECQ200 |
51,559 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | - | 360mA | 500mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PCMF1USB3BA/CZCMC 2LN SMD ESD |
7,606 | - |
|
Datasheet | - | Signal Line | 2 | - | - | - | 2.6Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | TVS Diode ESD Protection | - | - |
|
ACP3225-102-2P-TL000CMC 1.5A 2LN 1K OHM SMD |
21,108 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 1.5A | 50mOhm (Typ) | 60V | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCFE160804H101TGCMC 100MA 4LN 100 OHM SMD ESD |
4,000 | - |
|
Datasheet | 0603 (1608 Metric), 10 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
ACM4520-142-2P-TL000CMC 1.5A 2LN 1.4K OHM SMD |
9,218 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 80mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACT45C-110-2P-TL000CMC 11UH 250MA AEC-Q200 125DEGC |
19,720 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 250mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM2012-201-2P-T001CMC 350MA 2LN 200 OHM SMD |
9,501 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
ACT45C-101-2P-TL000CMC 100UH 150MA AEC-Q200 125DEGC |
3,315 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
