Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

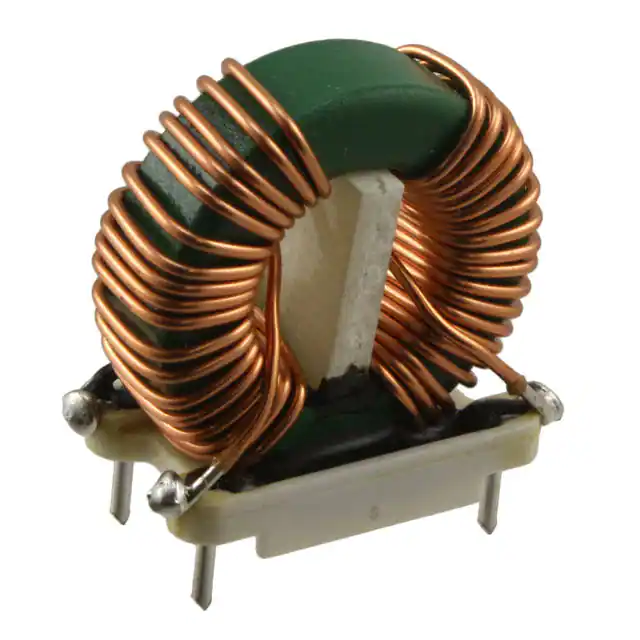

CMT-8107CMC 2MH 6.6A 2LN TH ESD |
1,406 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 6.6A | 22mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

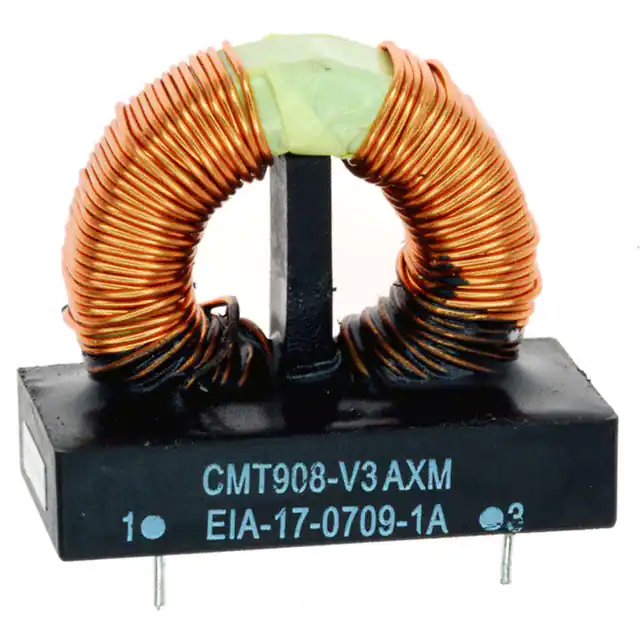

CMT908-V3CMC 8MH 3.2A 2LN TH ESD |
291 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|

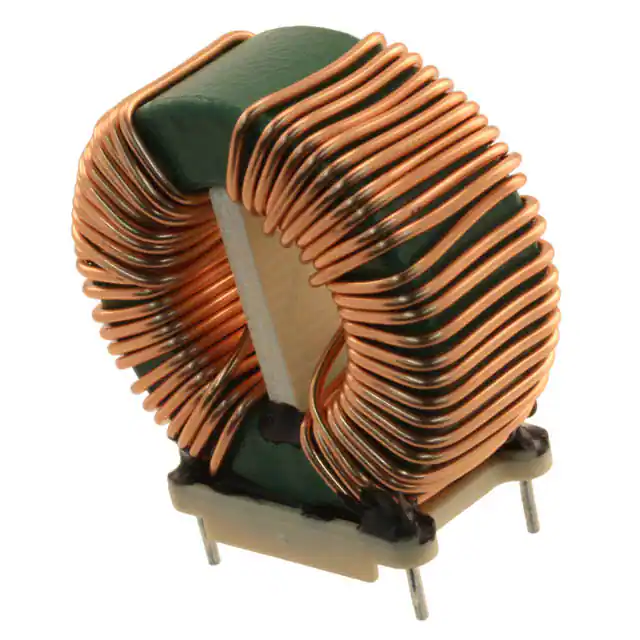

CMT-8118CMC 7.3MH 9.3A 2LN TH ESD |
1,776 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT908-H3CMC 8MH 3.2A 2LN TH ESD |
411 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 250V | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMT908-H1CMC 2MH 7.5A 2LN TH ESD |
209 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.5A | 20mOhm | - | 250V | - | - | - | - | - | - |
|
CMF23V-683900-BCMC 68MH 900MA 2LN TH |
209 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 900mA | 1.21Ohm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-273141-BCMC 27MH 1.4A 2LN TH |
159 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 484mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMF23V-473111-BCMC 47MH 1.1A 2LN TH |
180 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.1A | 884mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMT908-H2CMC 4MH 5.2A 2LN TH ESD |
123 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 5.2A | 40mOhm | - | 250V | - | - | - | - | - | - |
|

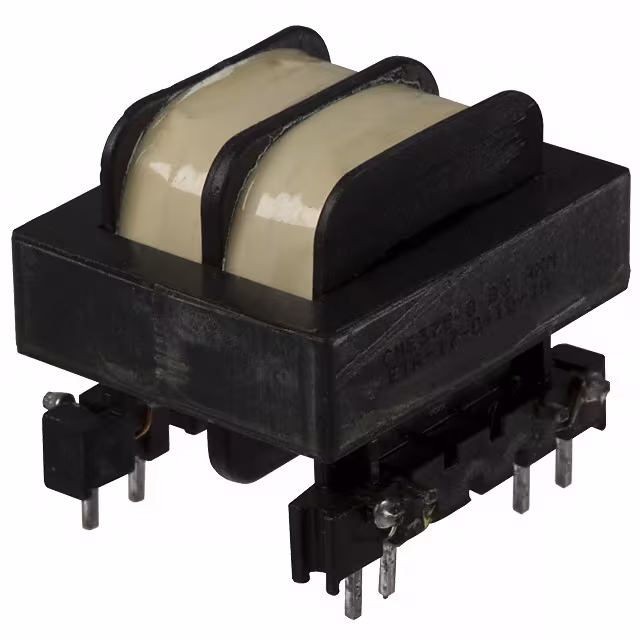

CME375-2CMC 6.9MH 4.4A 2LN TH ESD |
321 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.9 mH @ 10 kHz | 4.4A | 77mOhm | - | 250V | -40°C ~ 80°C | - | CSA, IEC, UL, VDE | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
