Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
47721-490CMC 49UH 22A 2LN 140OHM CHAS MNT |
121 | - |
|
Datasheet | Nonstandard | - | 2 | 140 Ohms @ 1 MHz | 49 µH @ 10 kHz | 22A | 3.5mOhm | - | - | - | - | - | - | - | - |
|
47718-232CMC 2.26MH 8A 2LN 7KOHM TH |
2,304 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 7 kOhms @ 1 MHz | 2.26 mH @ 10 kHz | 8A | 40mOhm | - | - | - | - | - | - | - | - |
|

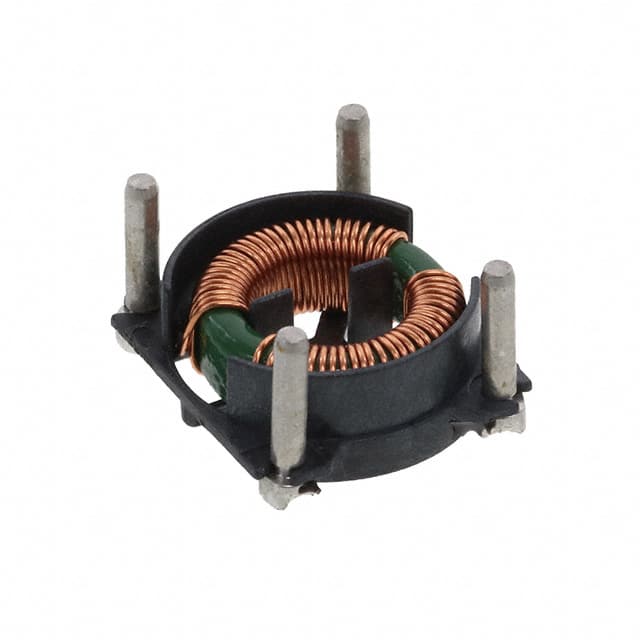

47724-142CMC 1.4MH 4A 2LN 5.2KOHM CHAS MT |
4,589 | - |
|
Datasheet | Nonstandard | - | 2 | 5.2 kOhms @ 1 MHz | 1.4 mH @ 10 kHz | 4A | 75mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-01CMC 350UH 40A 2LN TH |
3,235 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 350 µH @ 1 kHz | 40A | 2.2mOhm | 250V | - | - | - | - | - | - | - |
|
|
49390-221INDUCTOR BIFILAR COMMON MODE A |
1,582 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 700 Ohms @ 1 MHz | 220 µH @ 10 kHz | 10.5A (Typ) | 11mOhm | - | - | - | - | - | - | - | - |
|
|
36-00037CMC 330UH 20A 2LN SMD |
3,549 | - |
|
Datasheet | Nonstandard | - | 2 | - | 330 µH @ 1 kHz | 20A | 5mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-04CMC 950UH 10A 2LN TH |
2,695 | - |
|
Datasheet | Horizontal, No Base, 2 PC Pins | - | 2 | - | 950 µH @ 1 kHz | 10A | 10mOhm | - | - | - | - | - | - | - | - |
|
|
36-00029-0710 UH, 60A COMMON MODE INDUCT |
2,137 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
36-00029-0670 UH, 80A COMMON MODE INDUCTO |
3,978 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
