Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744861100CMC 10MH 450MA 2LN TH |
122 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 450mA | 1.65Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
744212820CMC 82UH 300MA 2LN 440 OHM SMD |
1,711 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power, Signal Line | 2 | 440 Ohms @ 180 MHz | 82 µH @ 100 kHz | 300mA | 200mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212101CMC 100UH 300MA 2LN 500 OHM SMD |
886 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power, Signal Line | 2 | 500 Ohms @ 60 MHz | 100 µH @ 100 kHz | 300mA | 220mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
744822233CMC 3.3MH 1.5A 2LN TH |
134 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 120mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744822120CMC 20MH 500MA 2LN TH |
115 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 540mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744290473CMC 47MH 250MA 2LN SMD |
574 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 47 mH @ 10 kHz | 250mA | 4Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290103CMC 10MH 500MA 2LN SMD |
505 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 10 mH @ 10 kHz | 500mA | 920mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

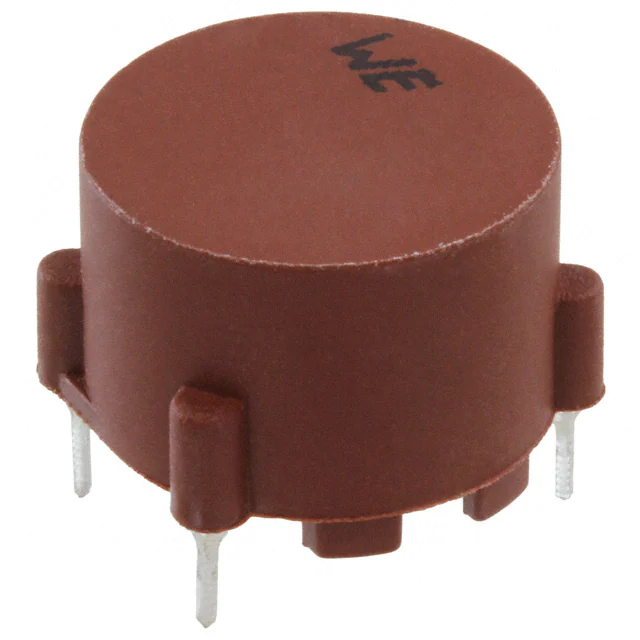

7446622002CMC 2.2MH 2A 2LN TH |
522 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 100mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

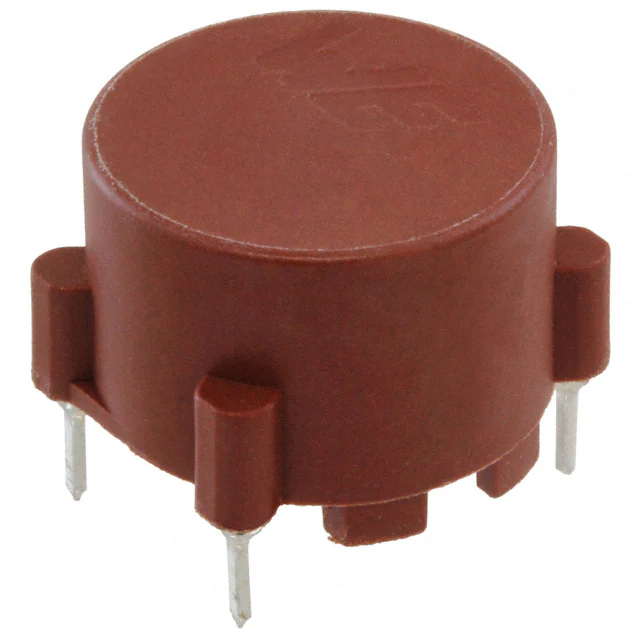

7446622001CMC 1MH 2A 2LN TH |
387 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446621007CMC 6.8MH 1A 2LN TH |
363 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1A | 300mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
