Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF1821VU-103Y1R0-01CMC 1A 2LN TH |
1,337 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TF2514VU-102Y2R0-01CMC 2A 2LN TH |
1,060 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 100mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
TF1815HU-302Y2R0-01CMC 2A 2LN TH |
4,288 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | - | 2A | - | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CM6032V301R-00CMC 8A 8LN 300 OHM SMD |
1,260 | - |
|
Datasheet | Vertical, 16 Flat Lead | Power, Signal Line | 8 | 300 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
7352-V-RCCMC 2MH 850MA 2LN TH |
4,439 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2 mH @ 1 kHz | 850mA | 400mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
7354-V-RCCMC 8MH 400MA 2LN TH |
1,413 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 8 mH @ 1 kHz | 400mA | 2Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
LF2115NP-222CMC 2.2MH 1.3A 2LN TH |
4,749 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.3A | 240mOhm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-392CMC 3.9MH 1A 2LN TH |
2,506 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 1 kHz | 1A | 410mOhm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-103CMC 10MH 600MA 2LN TH |
1,286 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 600mA | 1Ohm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-183CMC 18MH 500MA 2LN TH |
1,912 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 1 kHz | 500mA | 1.63Ohm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-223CMC 22MH 400MA 2LN TH |
4,701 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 1 kHz | 400mA | 2.04Ohm | - | - | - | - | - | - | - | - |
|
|
LF2115NP-333CMC 33MH 300MA 2LN TH |
4,771 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 33 mH @ 1 kHz | 300mA | 3.42Ohm | - | - | - | - | - | - | - | - |
|
EH24-1.0-02-10MCMC 10MH 1A 2LN TH |
4,751 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 244mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

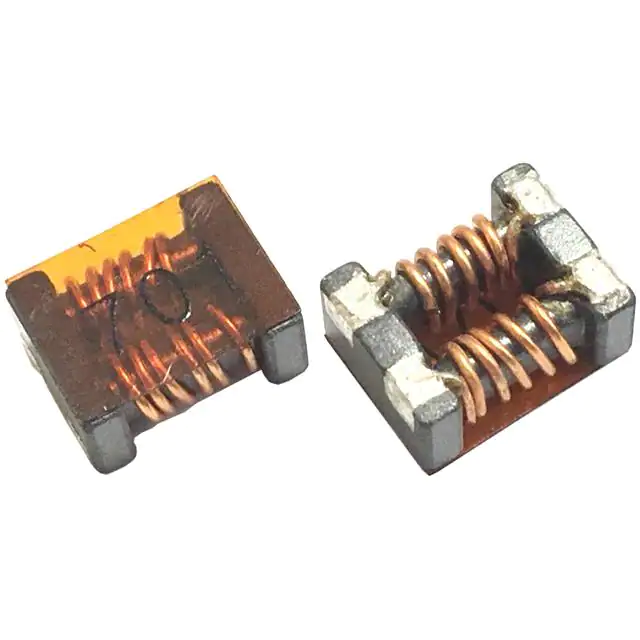

BPPM00151360551X00CMC 10A 2LN 550 OHM SMD |
4,442 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 550 Ohms @ 100 MHz | - | 10A | 3.8mOhm (Typ) | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360701X00CMC 10A 2LN 700 OHM SMD |
2,958 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 700 Ohms @ 100 MHz | - | 10A | 7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360152X00CMC 8.5A 2LN 1.5K OHM SMD |
4,466 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 8.5A | 9mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
BPPM00151360301X00CMC 13A 2LN 300 OHM SMD |
4,456 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 13A | 4.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
LG01-0346N1RLCMC 35UH 2CH EXT TEMP 16P SMD |
3,883 | - |
|
Datasheet | 16-SOIC (0.280", 7.11mm Width) | Signal Line | 4 | - | - | - | 300mOhm | - | - | -40°C ~ 85°C | - | UL | - | - | - |
|
LF2420NP-252CMC 2.5MH 2A 2LN TH |
1,048 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2A | 130mOhm | - | - | - | - | - | - | - | - |
|
|
LF2420NP-352CMC 3.5MH 1.7A 2LN TH |
4,592 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 1 kHz | 1.7A | 180mOhm | - | - | - | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
