Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

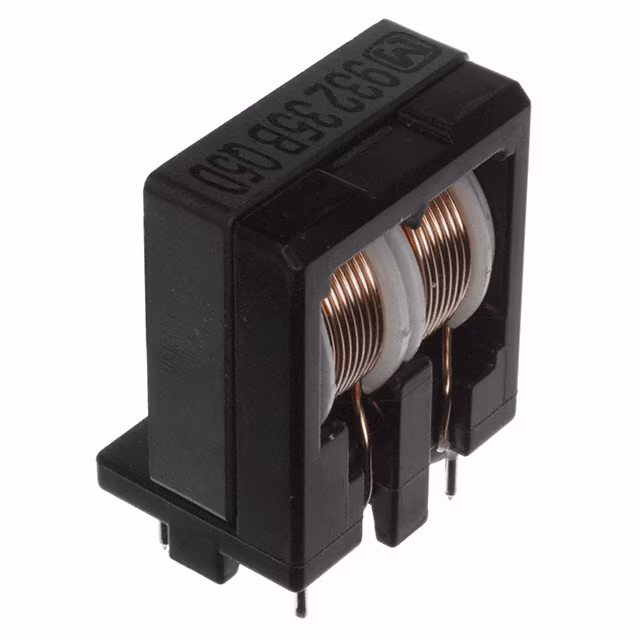

ELF-22V035BCMC 3.5A 2LN TH |
1,982 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 75mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V040BCMC 4A 2LN TH |
3,224 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 4A | 57mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V060BCMC 6A 2LN TH |
1,176 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 6A | 27mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V070BCMC 7A 2LN TH |
3,205 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 7A | 22mOhm (Typ) | - | - | - | - | - | - | - | - |
|

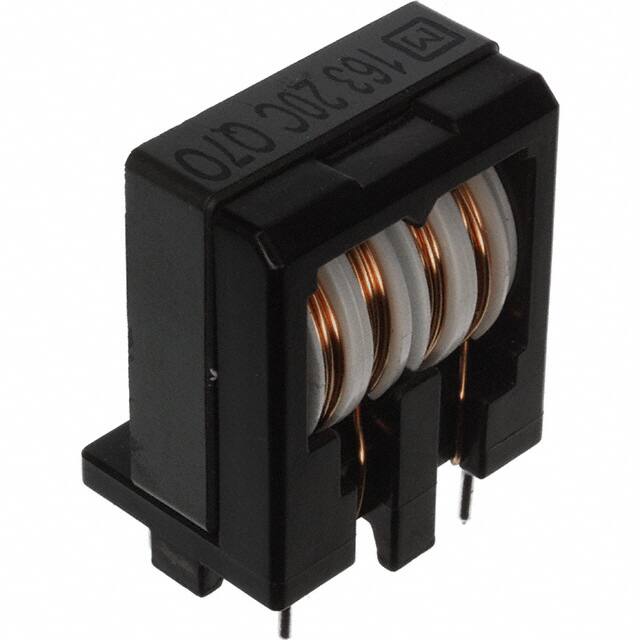

ELF-22V020CCMC 2A 2LN TH |
3,500 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2A | 170mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V025CCMC 2.5A 2LN TH |
2,883 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 115mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V030CCMC 3A 2LN TH |
2,918 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 3A | 91mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-22V035CCMC 3.5A 2LN TH |
4,941 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 69mOhm (Typ) | - | - | - | - | - | - | - | - |
|
EXC-14CG120UCMC 130MA 2LN 12 OHM SMD |
1,383 | - |
|
Datasheet | 0302 (0805 Metric) | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 130mA | 2Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-18CG430UCMC 100MA 4LN 43 OHM SMD |
3,345 | - |
|
Datasheet | 0603 (1608 Metric) | Signal Line | 4 | 43 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
