Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXC-24CH500UCMC 160MA 2LN 50 OHM SMD |
2,793 | - |
|
Datasheet | 0504 (1210 Metric) | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 160mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
EXC-X4CT650XCMC 100MA 2LN 65 OHM SMD |
3,061 | - |
|
Datasheet | 0202 (0505 Metric) | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 2.7Ohm (Typ) | 10V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ELK-U101FBCMC 100MA 2LN 100 OHM SMD |
3,410 | - |
|
Datasheet | 0805 (2012 Metric), 4 Lead | - | 2 | 100 Ohms @ 100 MHz | - | 100mA | 1.1Ohm | 10V | - | -20°C ~ 85°C | - | - | - | - | - |
|
|
EXC-24CD201UCMC 130MA 2LN 200 OHM SMD |
2,942 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 130mA | 3Ohm | 5V | - | - | - | - | - | - | - |
|
|
EXC-24CD121UCMC 140MA 2LN 120 OHM SMD |
2,105 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 140mA | 2Ohm | 5V | - | - | - | - | - | - | - |
|
|
EXC-24CD600UCMC 160MA 2LN 60 OHM SMD |
3,755 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 160mA | 2Ohm | 5V | - | - | - | - | - | - | - |
|
|
EXC-24CD900UCMC 160MA 2LN 90 OHM SMD |
3,458 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 160mA | 2Ohm | 5V | - | - | - | - | - | - | - |
|

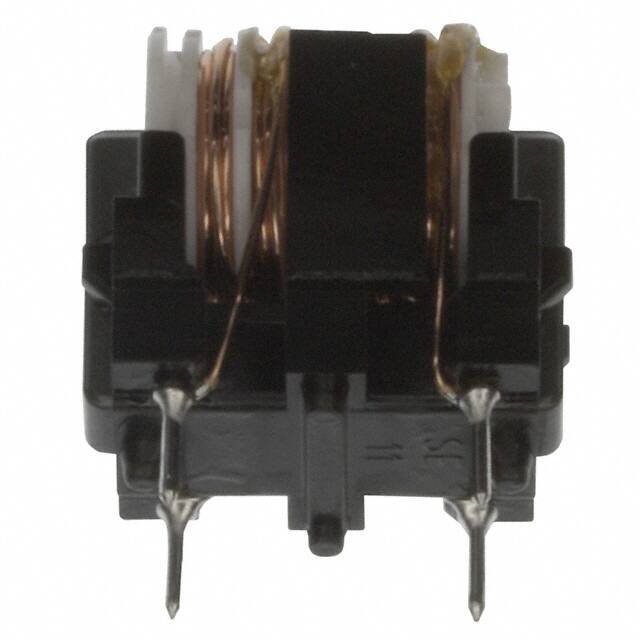

ELF-18D290BCMC 2A 2LN TH |
4,170 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 2A | 72mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D850YCMC 3.5A 2LN TH |
3,105 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 60mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D416CMC 2.2MH 2A 2LN TH |
2,013 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 2.2 mH @ 1 kHz | 2A | 109mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
