Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LG01-1006NF1RLTRCMC 100UH 2CH EXT TEMP 8P SMD T/ |
4,378 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UF1717V-300Y1R2-03CMC 30UH 1.2A 2LN TH |
4,843 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 1 kHz | 1.2A | 150mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
CAF-0.6-18CMC 18MH 600MA 2LN TH |
2,082 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 18 mH @ 10 kHz | 600mA | 868mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5BSN302SQ2LCMC 500MA 2LN 3K OHM SMD |
2,881 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 3 kOhms @ 100 MHz | - | 500mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN152SQ2LCMC 1A 2LN 1.5K OHM SMD |
3,158 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.5 kOhms @ 100 MHz | - | 1A | 100mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
DLW5BSN191SQ2LCMC 5A 2LN 190 OHM SMD |
2,147 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 190 Ohms @ 100 MHz | - | 5A | 20mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CC2824J502R-00CMC 5UH 1.2A 2LN 400 OHM SMD |
4,263 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 400 Ohms @ 500 MHz | 5 µH @ 100 kHz | 1.2A | 130mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
CLJ-2-102CMC 1MH 500MA 2LN SMD |
1,873 | - |
|
Datasheet | Horizontal, 4 Flat Lead | - | 2 | - | 1 mH @ 100 kHz | 500mA | 275mOhm (Typ) | - | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
LG11-0406NFRLTRCMC 40UH 4W EXT TEMP 8P SMD T/R |
3,578 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 40 µH @ 100 kHz | - | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

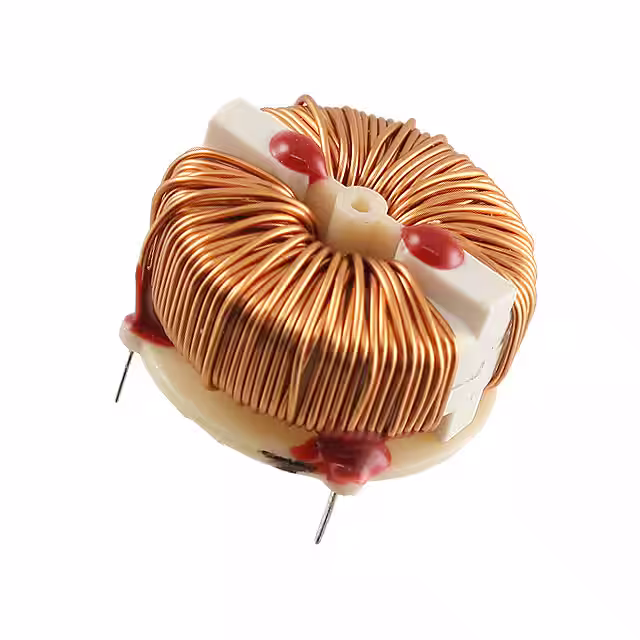

CMT3-1-RCMC 5.4MH 2A 2LN TH |
3,271 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.4 mH @ 10 kHz | 2A | 120mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
EV28-4.0-02-2M3CMC 2.3MH 4A 2LN TH |
4,622 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 10 kHz | 4A | 40mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
FL2D-10-302B3MH @ 10 KHZ 2 LINE COMMON MODE |
4,298 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 110mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
RN214-0.8-02CMC 27MH 800MA 2LN TH |
2,625 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA (Typ) | 500mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
TF0402B-05P-01CMC 13UH 500MA 2LN TH |
3,229 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 13 µH @ 1 kHz | 500mA | 45mOhm | - | - | -20°C ~ 120°C | - | - | - | - | - |
|
|
B82789C0104N001CHOKE DBL 100UH 150MA GOLD SMD |
3,273 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CPFC11D60-100M08CMC 6A 2LN 800 OHM SMD |
1,677 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 800 Ohms @ 100 MHz | - | 6A | 8mOhm | - | - | - | - | - | - | - | - |
|
|
CAF-0.5-27CMC 27MH 500MA 2LN TH |
1,567 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.179Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKFP-F201-04D3DKFP COMP.CHOKE 2PH 4A 0.3MH K |
1,803 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CMJ-2-101CMC 100UH 500MA 2LN SMD |
3,314 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 260mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
CMJ-2-470CMC 47UH 500MA 2LN SMD |
2,164 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 47 µH @ 100 kHz | 500mA | 130mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
