Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

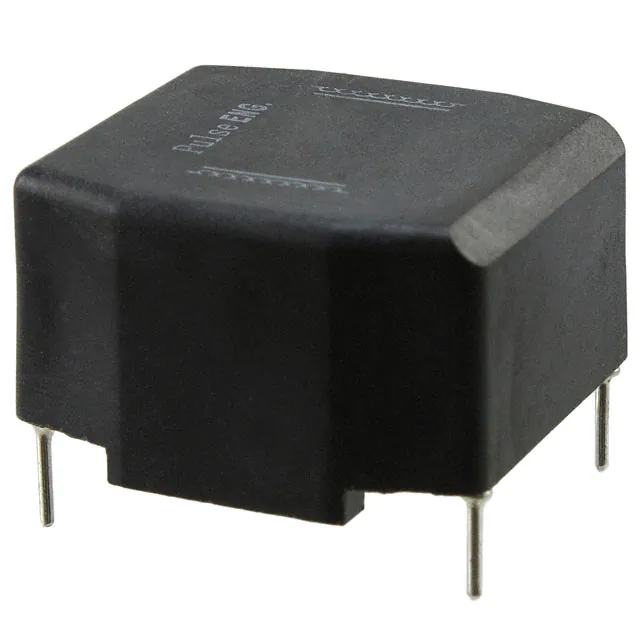

PE-96161NLCMC 500MA (TYP) 2LN TH |
4,134 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | - | 500mA (Typ) | 1.4Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-96187NLCMC 8A (TYP) 2LN TH |
4,368 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | - | 8A (Typ) | 33mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62895NLCMC 8MH 3.2A 2LN TH |
4,441 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 3.2A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-96173NLCMC 3.15A (TYP) 2LN TH |
4,100 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.15A (Typ) | 100mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62891NLCMC 10MH 1.8A 2LN TH |
2,177 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.8A | 240mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
.jpg "PE-0805CCMC670STS")
|
PE-0805CCMC670STSCMC 400MA 2LN 67 OHM SMD |
1,585 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-1206CCMC161STSCMC 340MA 2LN 160 OHM SMD |
4,394 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 160 Ohms @ 100 MHz | - | 340mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-0805CCMC900STHCMC 300MA 2LN 90 OHM SMD |
4,215 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 400mOhm | 50V | - | - | - | - | - | - | - |
|
|
PE-1206CCMC261STSCMC 310MA 2LN 260 OHM SMD |
2,894 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 260 Ohms @ 100 MHz | - | 310mA | 500mOhm | 50V | - | - | - | - | - | - | - |
|
|
T8132NLTCMC 16LN SMD |
4,826 | - |
|
Datasheet | - | Signal Line | 16 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
750052322CMC |
2,450 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
573 31 060 00COMMON MODE CHOKE 1.2A |
4,770 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TCM0806G-350-2PCMC 100MA 2LN 35 OHM SMD |
3,502 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.15Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM0806G-650-2PCMC 100MA 2LN 65 OHM SMD |
2,200 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM0806G-900-2PCMC 100MA 2LN 90 OHM SMD |
3,497 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZJY51R5-2P-01CMC 2A 2LN 200 OHM TH |
1,883 | - |
|
Datasheet | 4-DIP (0.300", 7.62mm) | Power, Signal Line | 2 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJY51R5-2PB-01CMC 2A 2LN 300 OHM TH |
1,923 | - |
|
Datasheet | 4-DIP (0.300", 7.62mm) | Power, Signal Line | 2 | 300 Ohms @ 20 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJY51R5-2PL-01CMC 2A 2LN 100 OHM TH |
2,968 | - |
|
Datasheet | 4-DIP (0.300", 7.62mm) | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 2A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ZJY51R5-4P-01CMC 2A 4LN 200 OHM TH |
4,072 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | Power, Signal Line | 4 | 200 Ohms @ 100 MHz | - | 2A | 120mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ZJY51R5-M4PA-01CMC 500MA 4LN 200 OHM TH |
2,458 | - |
|
Datasheet | 8-DIP (0.300", 7.62mm) | Power, Signal Line | 4 | 200 Ohms @ 100 MHz | - | 500mA | 250mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
