Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82796C105N265CMC 1MH 700MA 2LN TH |
2,096 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 1 mH @ 100 kHz | 700mA | 160mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C113N201CMC 11UH 800MA 2LN TH |
2,279 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 11 µH @ 100 kHz | 800mA | 70mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C2113N201CMC 11UH 200MA 4LN TH |
4,111 | - |
|
Datasheet | Horizontal, 8 PC Pin | Signal Line | 4 | - | 11 µH @ 100 kHz | 200mA | 60mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82796C2225N265CMC 2.2MH 100MA 4LN TH |
4,715 | - |
|
Datasheet | Horizontal, 8 PC Pin | Signal Line | 4 | - | 2.2 mH @ 10 kHz | 100mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C474N215CMC 470UH 700MA 2LN TH |
2,245 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 470 µH @ 100 kHz | 700mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C475N265CMC 4.7MH 400MA 2LN TH |
4,078 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 400mA | 520mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796S253N201CMC 25UH 800MA 2LN TH |
4,655 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 25 µH @ 100 kHz | 800mA | 100mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796S513N201CMC 51UH 800MA 2LN TH |
2,044 | - |
|
Datasheet | Horizontal, 4 PC Pin | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82799C474N1CMC 470UH 200MA 2LN SMD AEC-Q200 |
0 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 470 µH @ 100 kHz | 200mA | 320mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
P0420TCMC 3.3A 2LN SMD |
1,138 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
|
P0421TCMC 3.3A 2LN SMD |
2,928 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
P0422TCMC 4.7A 2LN SMD |
2,228 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
|
PE-65855TCMC 2LN SMD |
1,355 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | - | - | - | 1Ohm | - | - | - | - | - | - | - | - |
|

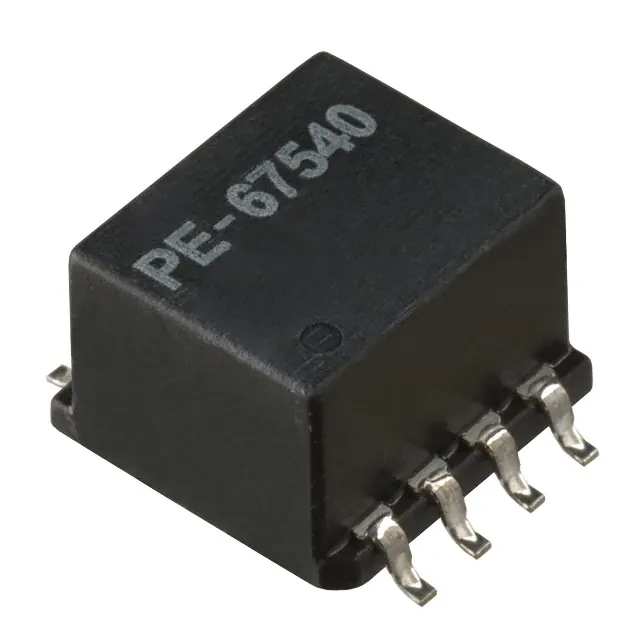

PE-67540TCMC 4LN SMD |
3,092 | - |
|
Datasheet | Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|
|
PE-68624TCMC 2LN SMD |
2,398 | - |
|
Datasheet | Vertical, 6 Flat Lead | Signal Line | 2 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|
|
PE-69011TCMC 8LN SMD |
1,711 | - |
|
Datasheet | Vertical, 16 Gull Wing | Signal Line | 8 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
|
23Z109SMNLCMC 10LN SMD |
4,363 | - |
|
Datasheet | 20-SOIC (0.295", 7.50mm Width) | Signal Line | 10 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
|
B4003CMC 2LN SMD |
3,681 | - |
|
Datasheet | Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
B4003TCMC 2LN SMD |
4,317 | - |
|
Datasheet | Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
P0351CMC 2.8A 2LN SMD |
1,544 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
